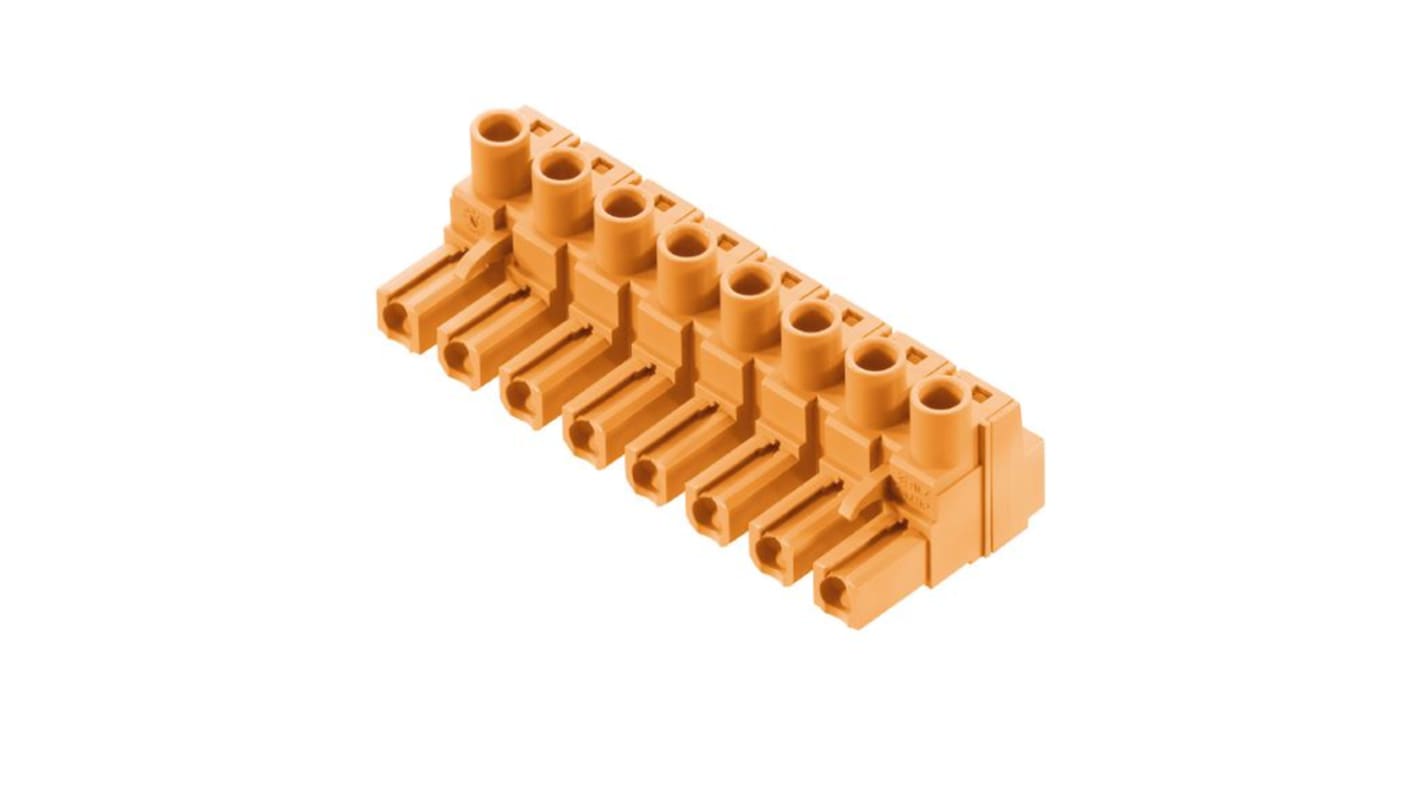

Weidmüller BL 7.62 Series PCB Connector, 7.62 mm Pitch, 1980480000
- RS Stock No.:
- 288-1789
- Distrelec Article No.:
- 301-55-557
- Mfr. Part No.:
- 1980480000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£2.75
(exc. VAT)
£3.30
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- Final 1 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £2.75 |
*price indicative
- RS Stock No.:
- 288-1789
- Distrelec Article No.:
- 301-55-557
- Mfr. Part No.:
- 1980480000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | PCB Connector | |
| Pitch | 7.62mm | |
| Current | 29A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Voltage | 630V | |
| Series | BL 7.62 | |
| Standards/Approvals | RoHS, CSA, cURus | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type PCB Connector | ||
Pitch 7.62mm | ||
Current 29A | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 4mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Voltage 630V | ||
Series BL 7.62 | ||
Standards/Approvals RoHS, CSA, cURus | ||
- COO (Country of Origin):
- DE
The pluggable terminal block is a compact and efficient solution for UL-600V applications in the lower performance range. It offers 100% safety, 100% integration, and 100% cost-effectiveness. With a high-performance female header, it can handle applications up to 12 kVA meeting the requirements of 600V according to UL 508/UL 840. The product is designed to ensure increased touch safety as per IEC 68100-5-1 standards.
Compact and efficient solution for UL-600V applications
High-performance female header for applications up to 12 kVA
Meets the requirements of 600V according to UL standards
Ensures increased touch safety as per IEC standards
Cost-effective and easy t
