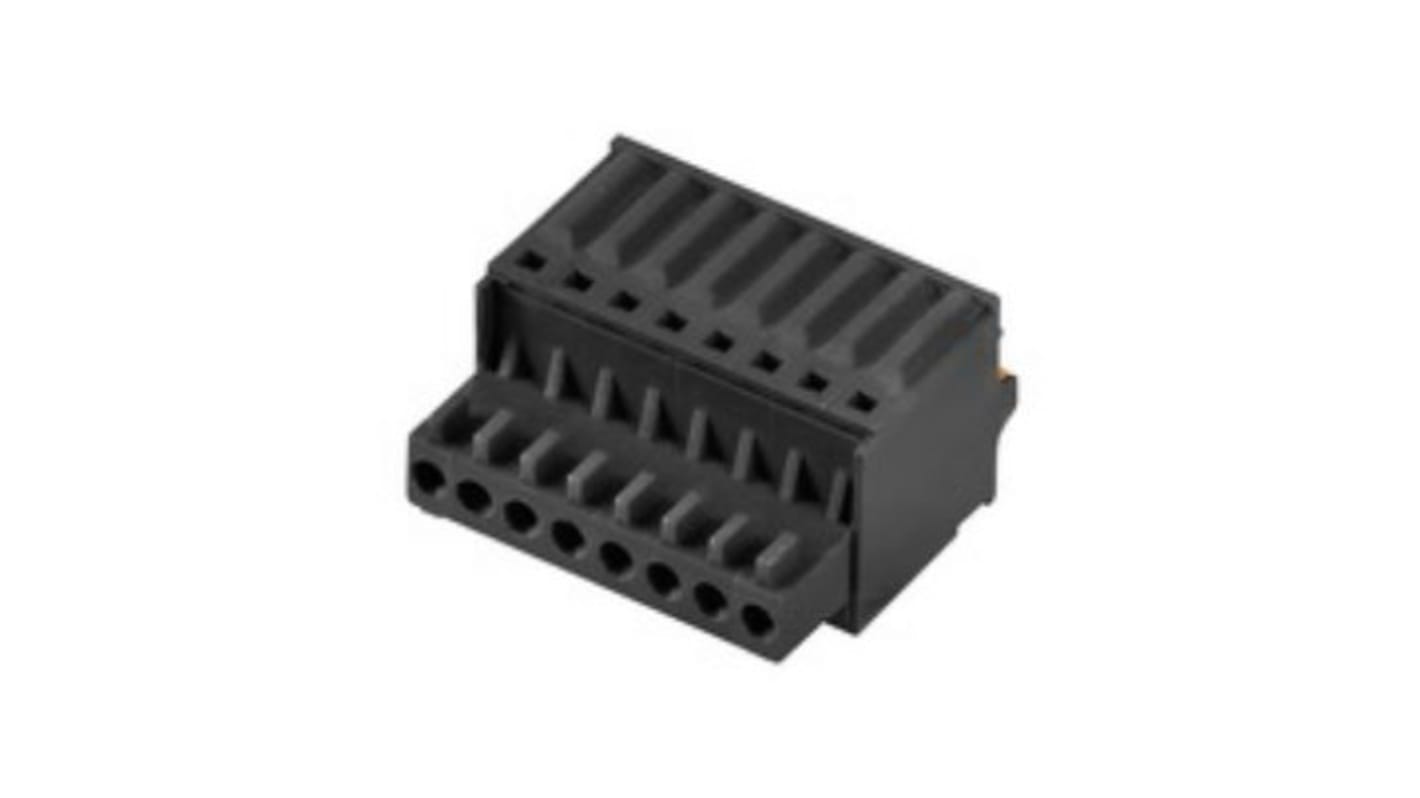

Weidmüller OMNIMATE Signal Series PCB Connector, 8-Contact, 2.5 mm Pitch, 1 Row, 2439710000
- RS Stock No.:
- 255-8313
- Mfr. Part No.:
- 2439710000
- Brand:
- Weidmüller
Subtotal (1 box of 125 units)*
£636.06
(exc. VAT)
£763.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £636.06 | £5.088 |
*price indicative
- RS Stock No.:
- 255-8313
- Mfr. Part No.:
- 2439710000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Number of Contacts | 8 | |
| Product Type | PCB Connector | |
| Pitch | 2.5mm | |
| Number of Rows | 1 | |
| Current | 6A | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 20 AWG | |
| Orientation | 180° | |
| Colour | Black | |
| Voltage | 320 V | |
| Series | OMNIMATE Signal | |
| Standards/Approvals | RoHS conform | |
| Depth | 19.2mm | |
| Width | 20.6 mm | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Number of Contacts 8 | ||
Product Type PCB Connector | ||
Pitch 2.5mm | ||
Number of Rows 1 | ||
Current 6A | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 20 AWG | ||
Orientation 180° | ||
Colour Black | ||
Voltage 320 V | ||
Series OMNIMATE Signal | ||
Standards/Approvals RoHS conform | ||
Depth 19.2mm | ||
Width 20.6 mm | ||
- COO (Country of Origin):
- HU
The Weidmuller PCB plug-in connector has PUSH IN Weidmüller's innovative connection system simplifies the wire connection process and female plug in 2.50 mm pitch with eight poles.
Simplified processing
Intuitive handling
