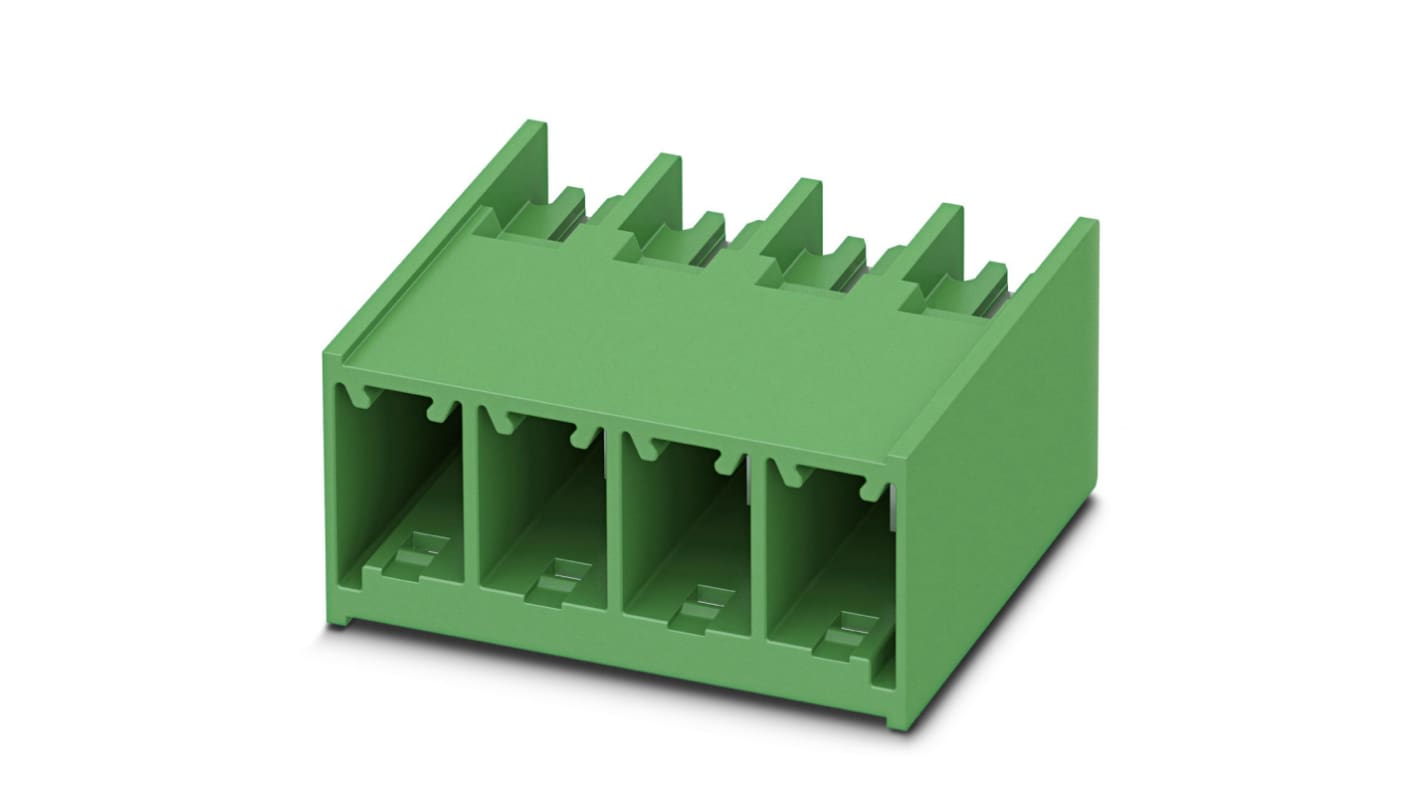

Phoenix Contact PC 6/-G Series Pluggable Terminal Block, 2-Contact, 7.62 mm Pitch, 1 Row, 1097707
- RS Stock No.:
- 249-2981
- Mfr. Part No.:
- 1097707
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£76.90
(exc. VAT)
£92.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.538 | £76.90 |
*price indicative
- RS Stock No.:
- 249-2981
- Mfr. Part No.:
- 1097707
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 7.62mm | |
| Current | 41A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide Fibreglass | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Wire Connection Method | Solder | |
| Colour | Black | |
| Voltage | 630V | |
| Length | 28.2mm | |
| Series | PC 6/-G | |
| Standards/Approvals | VDE Zeichengenehmigung, EAC | |
| Depth | 16.1mm | |
| Width | 15.64mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 7.62mm | ||
Current 41A | ||
Number of Rows 1 | ||
Housing Material Polyamide Fibreglass | ||
Connector Gender Male | ||
Orientation Straight | ||
Wire Connection Method Solder | ||
Colour Black | ||
Voltage 630V | ||
Length 28.2mm | ||
Series PC 6/-G | ||
Standards/Approvals VDE Zeichengenehmigung, EAC | ||
Depth 16.1mm | ||
Width 15.64mm | ||
- COO (Country of Origin):
- CN
The Phoenix Contact single row, 7.62 mm pitch, 2 positions, black printed-circuit board connector has linear pinning pin layout and 6 mm² nominal cross section with contact material made of Cu alloy. It has 41 A nominal current & 630 V nominal voltage.
Increased touch protection in the pin connector pattern for maximum safety even when not plugged in
Easy PCB replacement due to plug-in modules
Well-known mounting principle allows worldwide use
