WAGO 832 Series Pluggable Terminal Block, 4-Contact, 10.16 mm Pitch, 1 Row, 832-1204
- RS Stock No.:
- 240-8011
- Distrelec Article No.:
- 304-33-201
- Mfr. Part No.:
- 832-1204
- Brand:
- WAGO

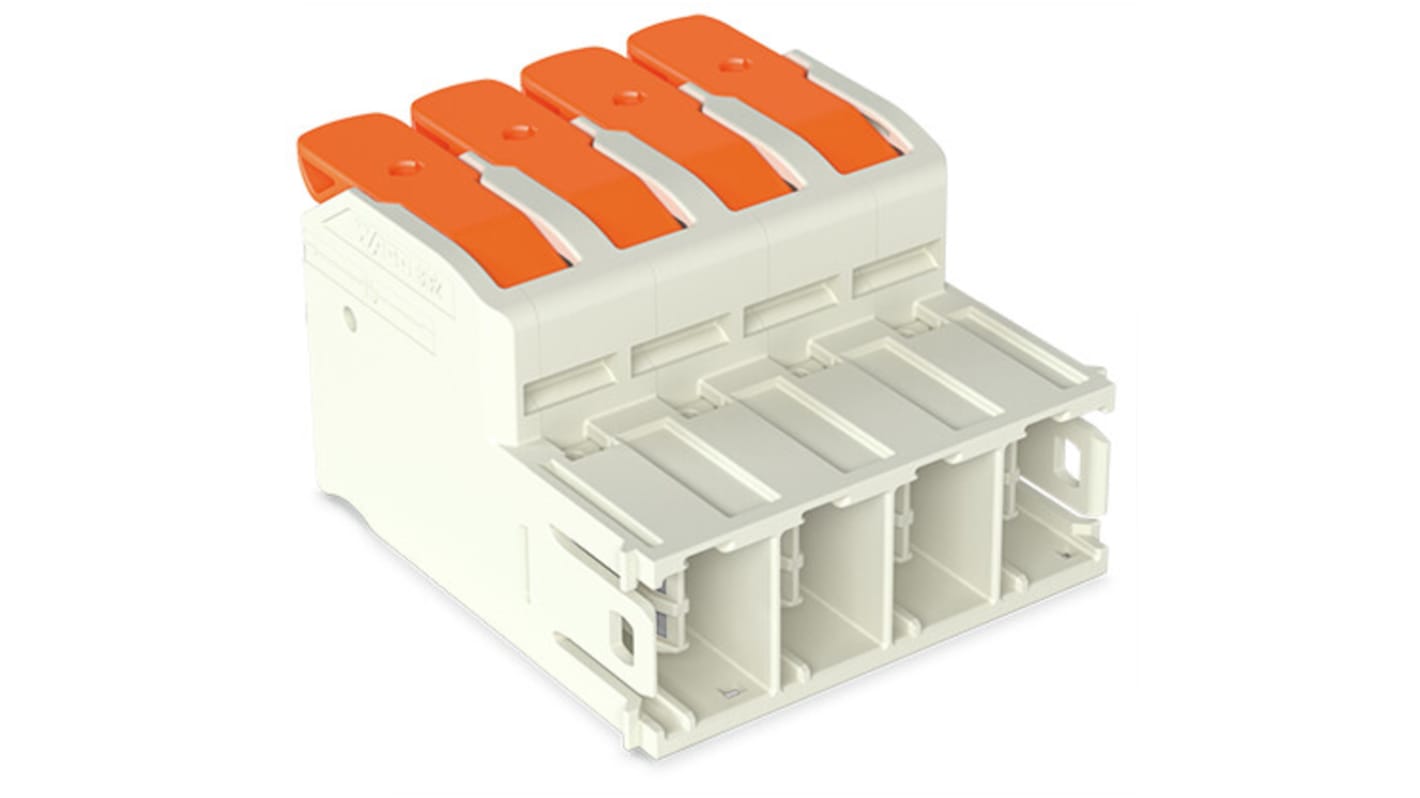

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.13
(exc. VAT)
£12.16
(inc. VAT)
- RS Stock No.:
- 240-8011
- Distrelec Article No.:
- 304-33-201
- Mfr. Part No.:
- 832-1204
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 10.16mm | |
| Number of Rows | 1 | |
| Current | 85A | |
| Housing Material | Polybutylene Terephthalate | |
| Minimum Wire Size mm² | 0.75mm² | |
| Maximum Wire Size mm² | 16mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Orientation | Straight | |
| Colour | Light Grey | |
| Wire Connection Method | Push-in Cage Clamp | |
| Voltage | 600V | |
| Series | 832 | |
| Standards/Approvals | RoHS | |
| Length | 29.1mm | |
| Depth | 50.6mm | |
| Width | 41.94mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 4 | ||
Pitch 10.16mm | ||
Number of Rows 1 | ||
Current 85A | ||
Housing Material Polybutylene Terephthalate | ||
Minimum Wire Size mm² 0.75mm² | ||
Maximum Wire Size mm² 16mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 4AWG | ||
Orientation Straight | ||
Colour Light Grey | ||
Wire Connection Method Push-in Cage Clamp | ||
Voltage 600V | ||
Series 832 | ||
Standards/Approvals RoHS | ||
Length 29.1mm | ||
Depth 50.6mm | ||
Width 41.94mm | ||
The WAGO 1-conductor male connector has 4-pole and push-in cage clamp connection. It is 100% protected against mis mating and has silver-plated contacts. Provides push-in termination of solid or ferruled conductors.
Intuitive and tool-free lever actuation
0° conductor entry direction
Coding option available
