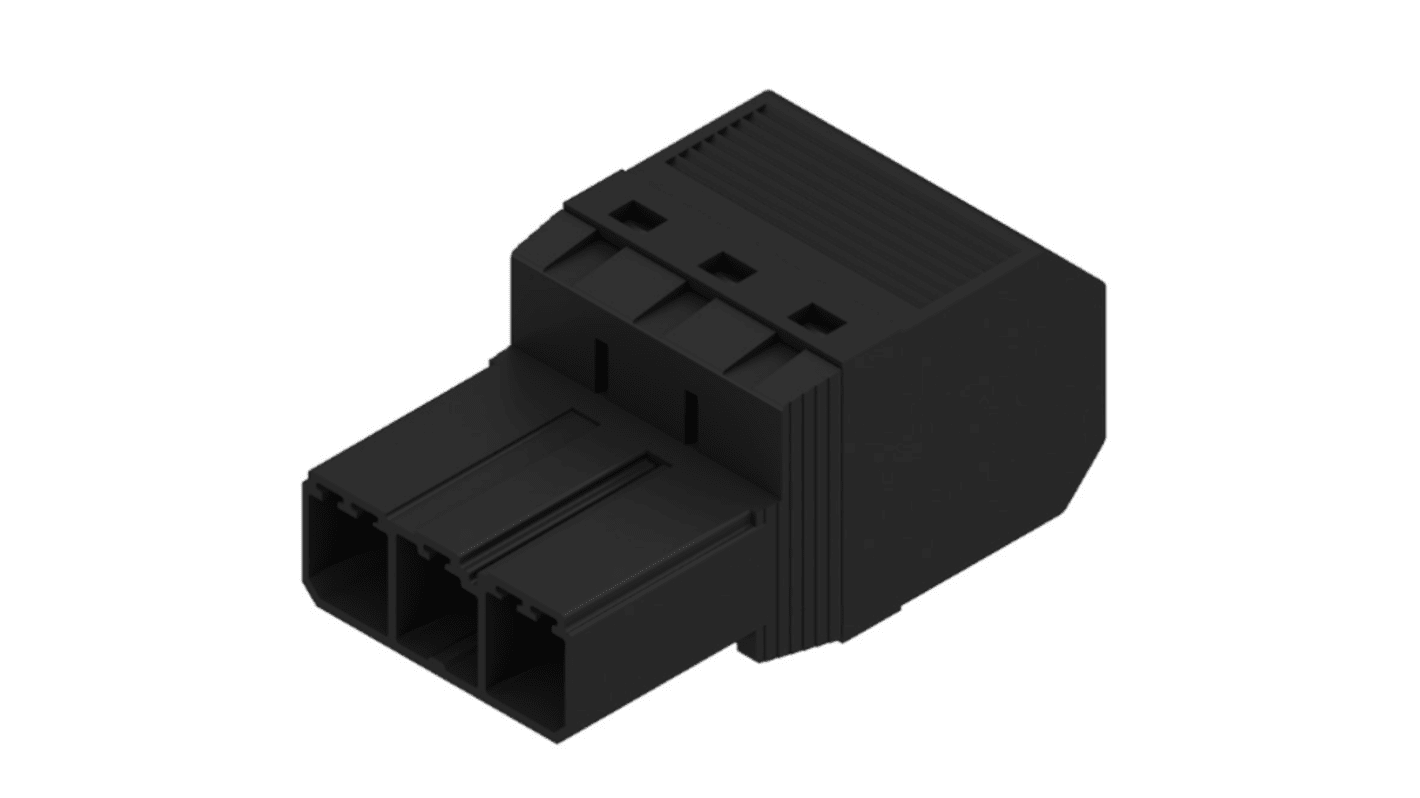

Weidmuller SVF Series Pluggable Terminal Block, 57A Current Rating, 1000V Voltage Rating - 1060840000

This pluggable terminal block is designed for efficient field wiring. Featuring a 7.62mm pitch and a compact size suitable for PCB mounting, it provides reliable electrical connections in various contexts. With high current capabilities of up to 57A and voltage ratings of 1000V, it excels in demanding applications, ensuring optimal performance and safety.

Features & Benefits

• Plug-in design simplifies wiring and reduces installation time
• Utilises copper alloy for enhanced electrical conductivity
• Supports a wire size range of 24 to 10 AWG
• Designed with touch-safe protection for user safety
• Maximum clamping range accommodates connections up to 10mm²
• 180° inverted pin header allows for space-efficient assembly

Applications

• Used for automation systems for quick connections
• ideal for electrical systems requiring reliable, high current connections
• Recommended for use in compact enclosures with limited space
• Suitable for industrial settings with robust wiring needs

What is the maximum operating temperature for this connector?

It can operate within a temperature range from -50 to 125 °C, making it suitable for various environmental conditions.

How does the design ensure touch safety?

The touch-safe protection complies with DIN VDE 57 106 standards, preventing accidental contact with live parts.

What materials are used in the construction of this terminal block?

The terminal block features a copper alloy for the contacts and PAGF for insulation, ensuring durability and performance.

How many times can this connector be plugged and unplugged?

It can withstand up to 25 plugging cycles, providing reliable connections over repeated use.

What type of wiring methods can be employed with this terminal block?

It supports PUSH IN connections for solid and stranded wires, ensuring secure and efficient electrical contacts.

Units	Per unit
1 - 9	£4.68
10 - 19	£4.33
20 +	£4.02

Select all	Attribute	Value
	Brand	Weidmüller
	Pluggable Terminal Block Type	Plug
	Number of Contacts	3
	Pitch	7.62mm
	Series	SVF
	Number of Rows	1
	Mounting Type	PCB
	Current Rating	57A
	Voltage Rating	1 kV
	Colour	Black
	Wire Size	24 → 10 AWG
	Material	Copper Alloy (Contact), PAGF (Insulation)
	Contact Material	Copper Alloy

	Select all
	Brand Weidmüller
	Pluggable Terminal Block Type Plug
	Number of Contacts 3
	Pitch 7.62mm
	Series SVF
	Number of Rows 1
	Mounting Type PCB
	Current Rating 57A
	Voltage Rating 1 kV
	Colour Black
	Wire Size 24 → 10 AWG
	Material Copper Alloy (Contact), PAGF (Insulation)
	Contact Material Copper Alloy

Weidmuller, 7.62mm Pitch, SVF, 3 Way, PCB Connector, Plug, PCB, 1060840000
