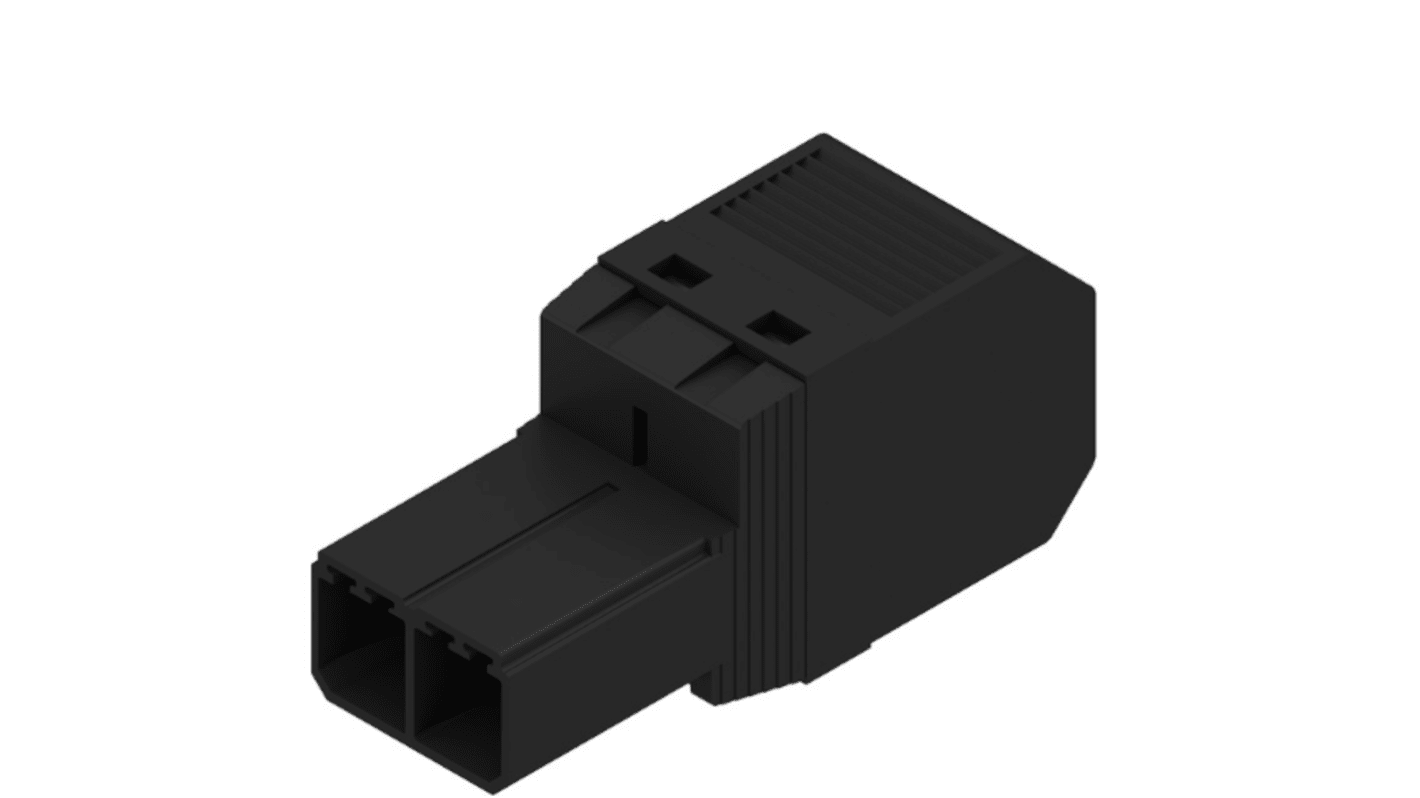

Weidmuller SVF Series Pluggable Terminal Block, 2 Contacts, 57A Current Rating - 1060830000

This pluggable Terminal Block is designed for efficient PCB mounting, featuring a 7.62mm pitch. It comprises a single row with two contacts, capable of handling wire sizes from 24 to 10 AWG. The robust construction utilises copper alloy for the contacts, ensuring durability and excellent conductivity. Rated for a current of up to 57A and a voltage of 1000V, this Terminal Block offers reliable performance in various applications.

Features & Benefits

• Designed for simple push-in connection technology

• Offers touch-safe protection for enhanced safety

• Accommodates a maximum clamping range of 10mm²

• Suitable for installation in enclosures with a thickness of up to 2mm

• Features a coded design to prevent misengagement

Applications

• Used for connecting conductors in automation systems

• Ideal for requiring high current and voltage connections

• Suitable for use in electrical and mechanical control panels

• Recommended for various electronic and electrical interconnections

• Ideal for systems involving reverse voltage solutions

What are the wiring requirements for this Terminal block?

The Terminal Block can accommodate wire sizes ranging from 0.5mm² to a maximum of 10mm², including both solid and stranded conductors. Ensure a suitable stripping length of 12mm for effective connection.

How does this Terminal Block benefit high current applications?

With a current rating of 57A, it is specifically designed for high current applications, ensuring safety and reliability through robust construction and appropriate insulation standards.

Can this Terminal Block be used in harsh environments?

Yes, it is designed to operate effectively across a temperature range from -50 to 125 °C, making it suitable for use in diverse and extreme environmental conditions.

What safety features are integrated into this product?

It includes touch-safe protection that adheres to DIN VDE regulations, ensuring user safety from accidental contact while also providing a coded design to prevent incorrect mating with other connectors.

Units	Per unit
1 - 9	£3.12
10 - 24	£3.03
25 - 49	£2.94
50 +	£2.87

Select all	Attribute	Value
	Brand	Weidmüller
	Product Type	PCB Connector
	Number of Contacts	2
	Pitch	7.62mm
	Number of Rows	1
	Current	57A
	Housing Material	Polyamide Powder-Filled with Glass Particles
	Minimum Wire Size mm²	2mm²
	Connector Gender	Male
	Maximum Wire Size mm²	10mm²
	Minimum Wire Size AWG	24 AWG
	Maximum Wire Size AWG	10 AWG
	Colour	Black
	Voltage	1000 V
	Series	SVF
	Standards/Approvals	cURus, CSA
	Depth	44.7mm

	Select all
	Brand Weidmüller
	Product Type PCB Connector
	Number of Contacts 2
	Pitch 7.62mm
	Number of Rows 1
	Current 57A
	Housing Material Polyamide Powder-Filled with Glass Particles
	Minimum Wire Size mm² 2mm²
	Connector Gender Male
	Maximum Wire Size mm² 10mm²
	Minimum Wire Size AWG 24 AWG
	Maximum Wire Size AWG 10 AWG
	Colour Black
	Voltage 1000 V
	Series SVF
	Standards/Approvals cURus, CSA
	Depth 44.7mm

Weidmüller SVF Series PCB Connector, 2-Contact, 7.62 mm Pitch, 1-Row
