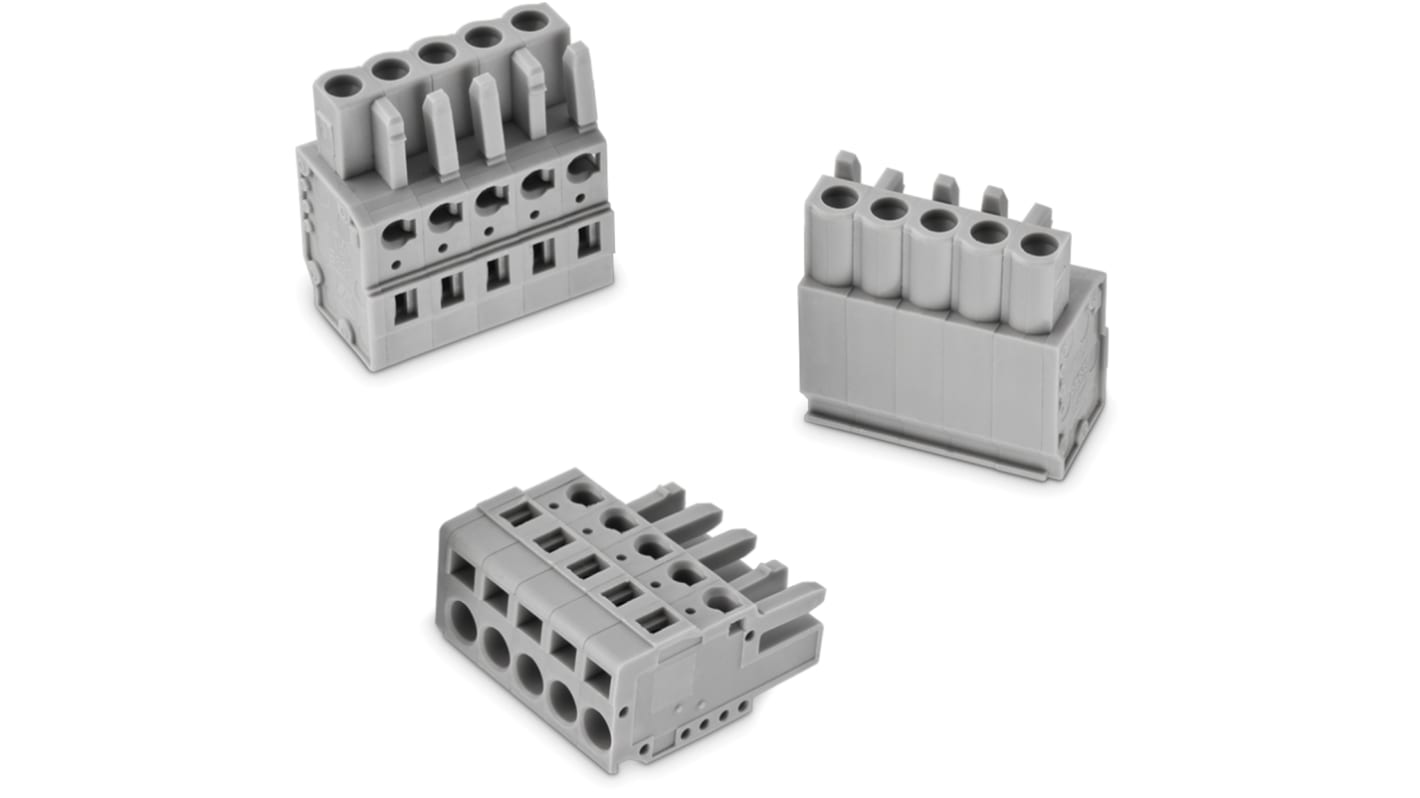

Wurth Elektronik 369B Series Pluggable Terminal Block, 3-Contact, 5 mm Pitch, 1-Row
- RS Stock No.:
- 191-5573
- Mfr. Part No.:
- 691369700003B
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 box of 80 units)*
£124.56
(exc. VAT)
£149.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 80 - 160 | £1.557 | £124.56 |
| 240 + | £1.514 | £121.12 |
*price indicative
- RS Stock No.:
- 191-5573
- Mfr. Part No.:
- 691369700003B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Minimum Wire Size mm² | 0.081mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 3.31mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Horizontal | |
| Colour | Grey | |
| Voltage | 2.5 kV | |
| Series | 369B | |
| Length | 16.5mm | |
| Depth | 26.5mm | |
| Standards/Approvals | RoHS | |
| Width | 14.6 mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 16A | ||
Minimum Wire Size mm² 0.081mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 3.31mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Horizontal | ||
Colour Grey | ||
Voltage 2.5 kV | ||
Series 369B | ||
Length 16.5mm | ||
Depth 26.5mm | ||
Standards/Approvals RoHS | ||
Width 14.6 mm | ||
- COO (Country of Origin):
- CN
WR-TBL Würth Elektronik Teminal Blocks
The Terminal Block portfolio from Würth Elektronik gives piece of mind bringing power to the board. The newly stocked range covers wire protector, rising cage clamp, spring clamp and pluggable systems. From 2.50 mm up to 10.16 mm pitch, 57 Amp and a maximum number of up to 12 poles.
