Bulk discount available
Subtotal (1 box of 200 units)*
£545.60
(exc. VAT)
£654.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 200 - 400 | £2.728 | £545.60 |
| 600 + | £2.513 | £502.60 |
*price indicative
- RS Stock No.:
- 173-1200
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 12 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 10A | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Brass | |
| Maximum Wire Size mm² | 1mm² | |
| Connector Gender | Male/Female | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | Horizontal | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 300 V | |
| Width | 11.2 mm | |
| Length | 46.5mm | |
| Standards/Approvals | RoHS | |
| Depth | 16.4mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 12 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 10A | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Brass | ||
Maximum Wire Size mm² 1mm² | ||
Connector Gender Male/Female | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation Horizontal | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 300 V | ||
Width 11.2 mm | ||
Length 46.5mm | ||
Standards/Approvals RoHS | ||
Depth 16.4mm | ||
- COO (Country of Origin):
- CN

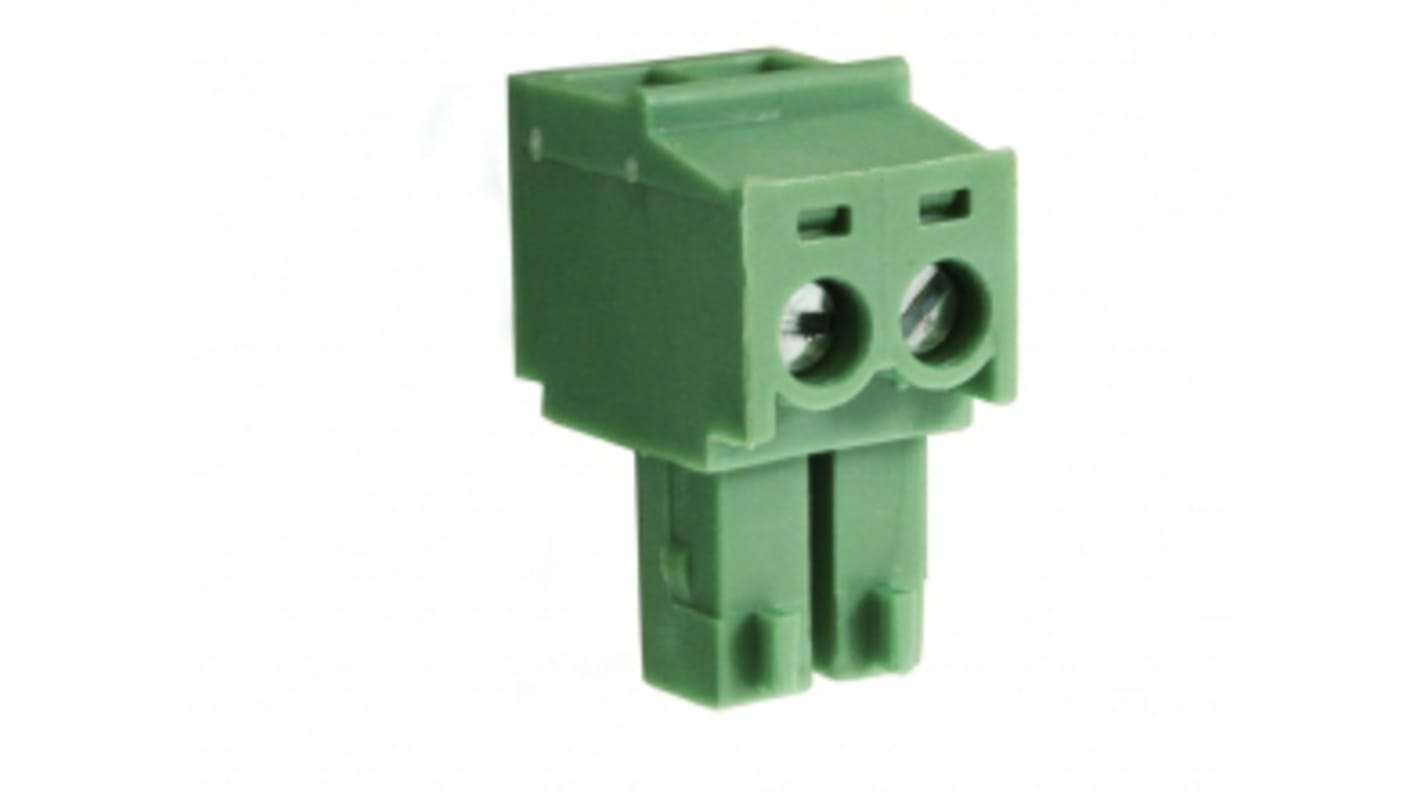

3.81mm Pluggable Rising Clamp Terminal Block Female
2-12 pole solid Block
Pluggable male-female connectors
Closed headers
Horizontal & vertical female plug styles
Polarised mouldings
Moulded in green flame retardant PA66
Professional rising clamp terminals
1.0mm2 (28-16AWG) solid & stranded cable
Anti solder wicking
Captive screws
Guided pin alignment
