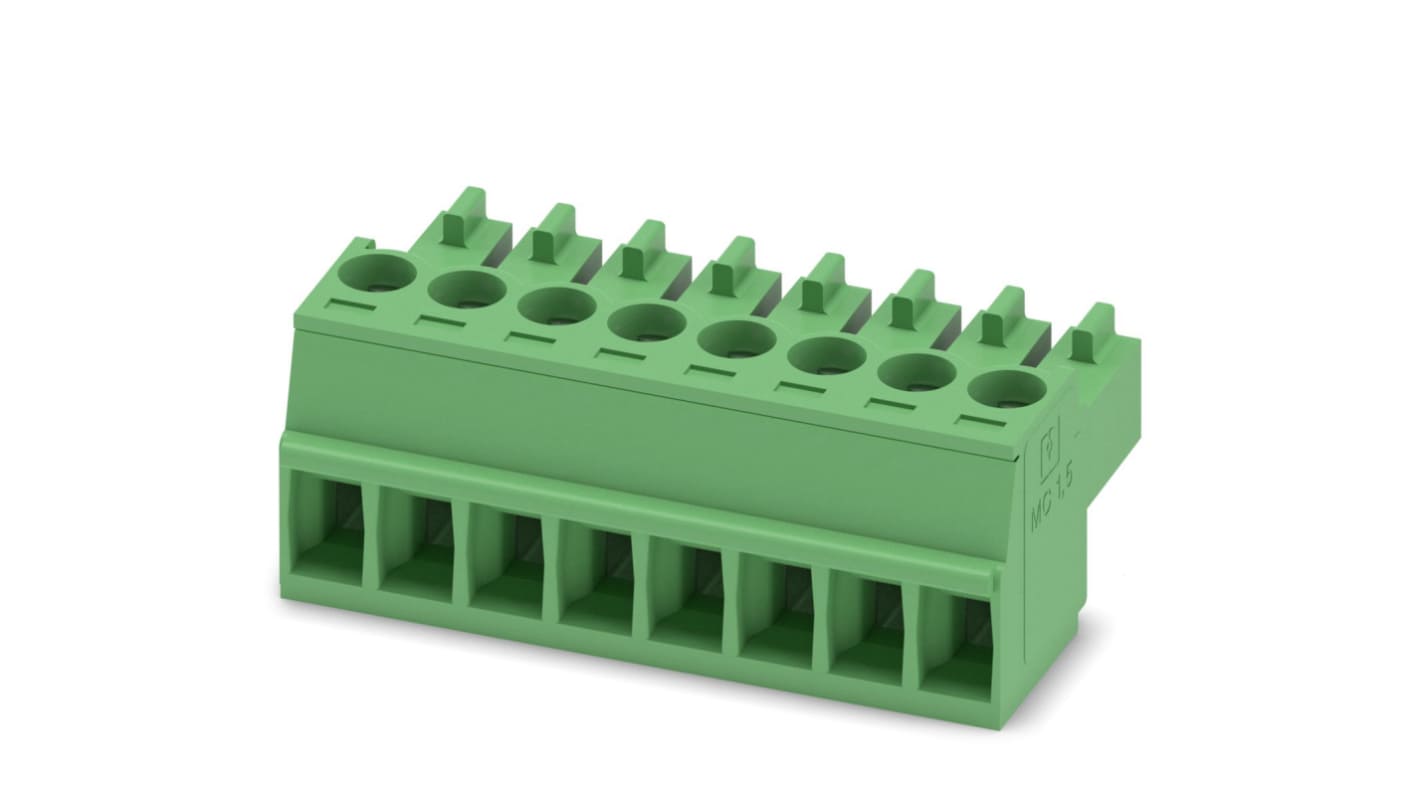

Phoenix Contact, 3.5mm Pitch, MC 1.5/ 8-ST-3.5, 8 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw
- RS Stock No.:
- 170-3895
- Mfr. Part No.:
- 1840421
- Brand:
- Phoenix Contact
Subtotal (1 box of 50 units)*
£305.55
(exc. VAT)
£366.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 100 unit(s) shipping from 20 October 2025
- Plus 50 unit(s) shipping from 27 October 2025
- Plus 50 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £6.111 | £305.55 |
*price indicative
- RS Stock No.:
- 170-3895
- Mfr. Part No.:
- 1840421
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 8 | |
| Pitch | 3.5mm | |
| Series | MC 1.5/ 8-ST-3.5 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Termination Method | Screw | |
| Current Rating | 8A | |
| Voltage Rating | 320 V | |
| Colour | Green | |
| Material | Polyamide | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 8 | ||
Pitch 3.5mm | ||
Series MC 1.5/ 8-ST-3.5 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Termination Method Screw | ||
Current Rating 8A | ||
Voltage Rating 320 V | ||
Colour Green | ||
Material Polyamide | ||
Phoenix Contact Pluggable Terminal Block, Single Row, 160V Voltage Rating - MC 1.5/ 8-ST-3.5 - 1840421
Looking for a convenient connector for your PCB? This pluggable terminal block from Phoenix Contact connects up to eight wires at once, letting you add multiple devices for easy system expansion. With its narrow 3.5mm pitch, this is a compact unit that gives you flexibility in your circuit board's layout. It has highly conductive tin-plated copper alloy contacts, so you can trust it provides efficient power, data and signal transfers.
As it can handle conductor cross-sections between 0.14 and 1.5mm², this versatile terminal block is widely compatible with standard connectors. The single-row design has a height of 11.1mm that's suitable for installation in restricted spaces. As it's protected by a resilient PA casing, this connector is shock-resistant and prevents damage from impacts. You'll find devices like this one used with control devices in the manufacturing and rail industries.
As it can handle conductor cross-sections between 0.14 and 1.5mm², this versatile terminal block is widely compatible with standard connectors. The single-row design has a height of 11.1mm that's suitable for installation in restricted spaces. As it's protected by a resilient PA casing, this connector is shock-resistant and prevents damage from impacts. You'll find devices like this one used with control devices in the manufacturing and rail industries.
Features & Benefits
• Screw terminals with integrated tension sleeves for minimal disruption from movement
• Operating temperature range of -40°C to +100°C for safe operation in demanding environments
• Housing carries a UL 94 flammability rating of V0 for effective flame-resistance
• Operating temperature range of -40°C to +100°C for safe operation in demanding environments
• Housing carries a UL 94 flammability rating of V0 for effective flame-resistance
Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks
