Molex 39426 Series Pluggable Terminal Block, 2-Contact, 12 mm Pitch, 1 Row, 39426-0002
- RS Stock No.:
- 683-708
- Mfr. Part No.:
- 39426-0002
- Brand:
- Molex
Subtotal (1 pack of 20 units)*
£218.67
(exc. VAT)
£262.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £218.67 | £10.934 |
*price indicative
- RS Stock No.:
- 683-708
- Mfr. Part No.:
- 39426-0002
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 2 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 12mm | |
| Number of Rows | 1 | |
| Current | 85A | |
| Housing Material | Tin | |
| Connector Gender | Male/Female | |
| Orientation | Right Angle | |
| Wire Connection Method | Through Hole Solder | |
| Colour | Black | |
| Voltage | 600V | |
| Series | 39426 | |
| Standards/Approvals | RoHS, Low-Halogen, REACH, IPC 1752A Class C, IPC 1752A Class D | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 2 | ||
Product Type Pluggable Terminal Block | ||
Pitch 12mm | ||
Number of Rows 1 | ||
Current 85A | ||
Housing Material Tin | ||
Connector Gender Male/Female | ||
Orientation Right Angle | ||
Wire Connection Method Through Hole Solder | ||
Colour Black | ||
Voltage 600V | ||
Series 39426 | ||
Standards/Approvals RoHS, Low-Halogen, REACH, IPC 1752A Class C, IPC 1752A Class D | ||
- COO (Country of Origin):
- MX

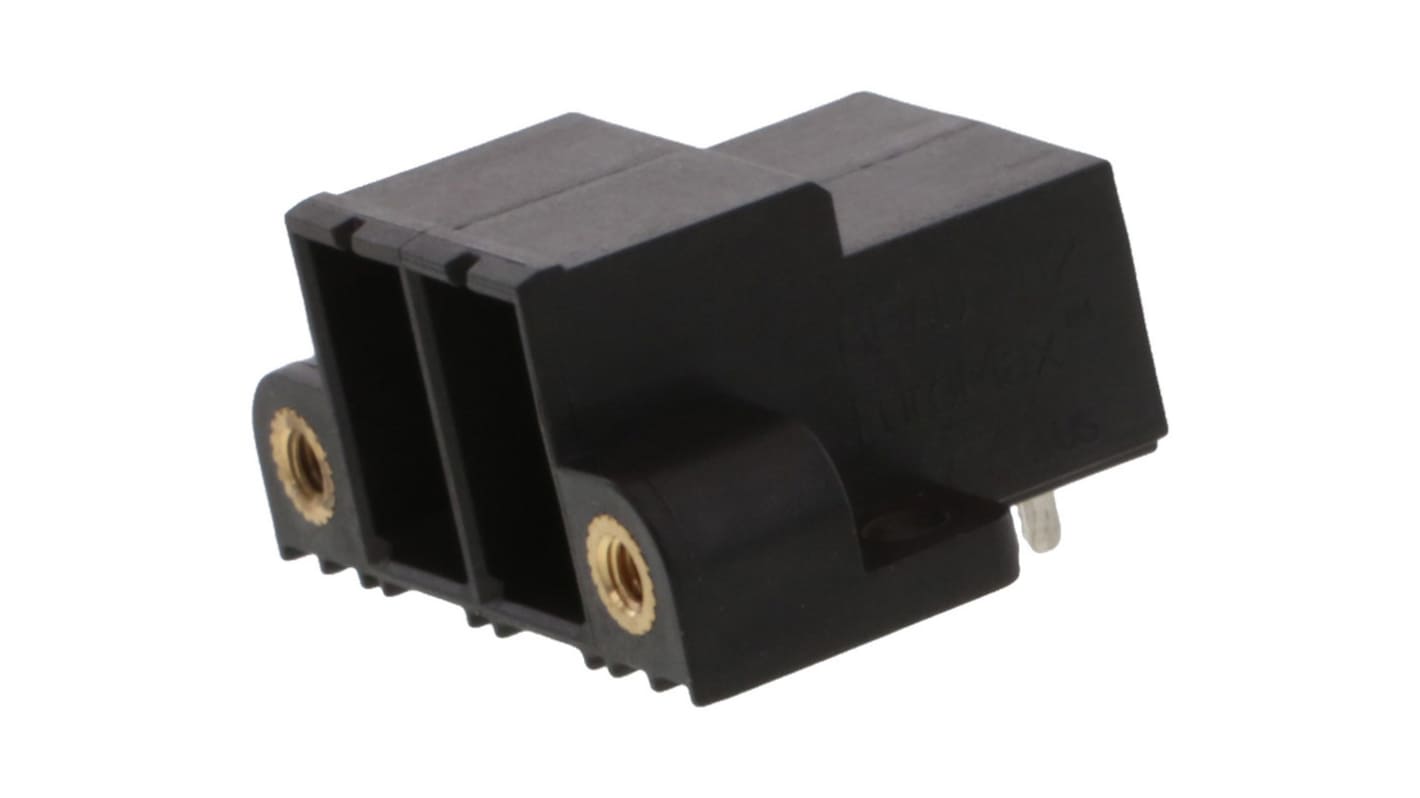

The Molex EuroMax pluggable PCB header designed to provide reliable wire to board connections in applications where space and efficiency are critical. This high-performance component features a 12.00mm pitch with closed ends making it ideal for compact designs. It supports a maximum current of 85.0A and operates at a voltage of up to 600V ensuring robust electrical performance. With its black resin construction and right-angle orientation this PCB header not only enhances the aesthetic appeal but also facilitates improved airflow and assembly in tight spaces. The engineered features such as threaded retention inserts ensure secure mating providing peace of mind in demanding environments.
Black resin construction offers both durability and aesthetic versatility
Right-angle orientation improves integration into tight setups allowing better airflow
Equipped with threaded retention inserts for secure connection
Simplifies assembly and installation with through-hole termination interface style
Polarised design ensures correct mating with compatible components
Obsolete status highlights its unique legacy in legacy systems and applications
