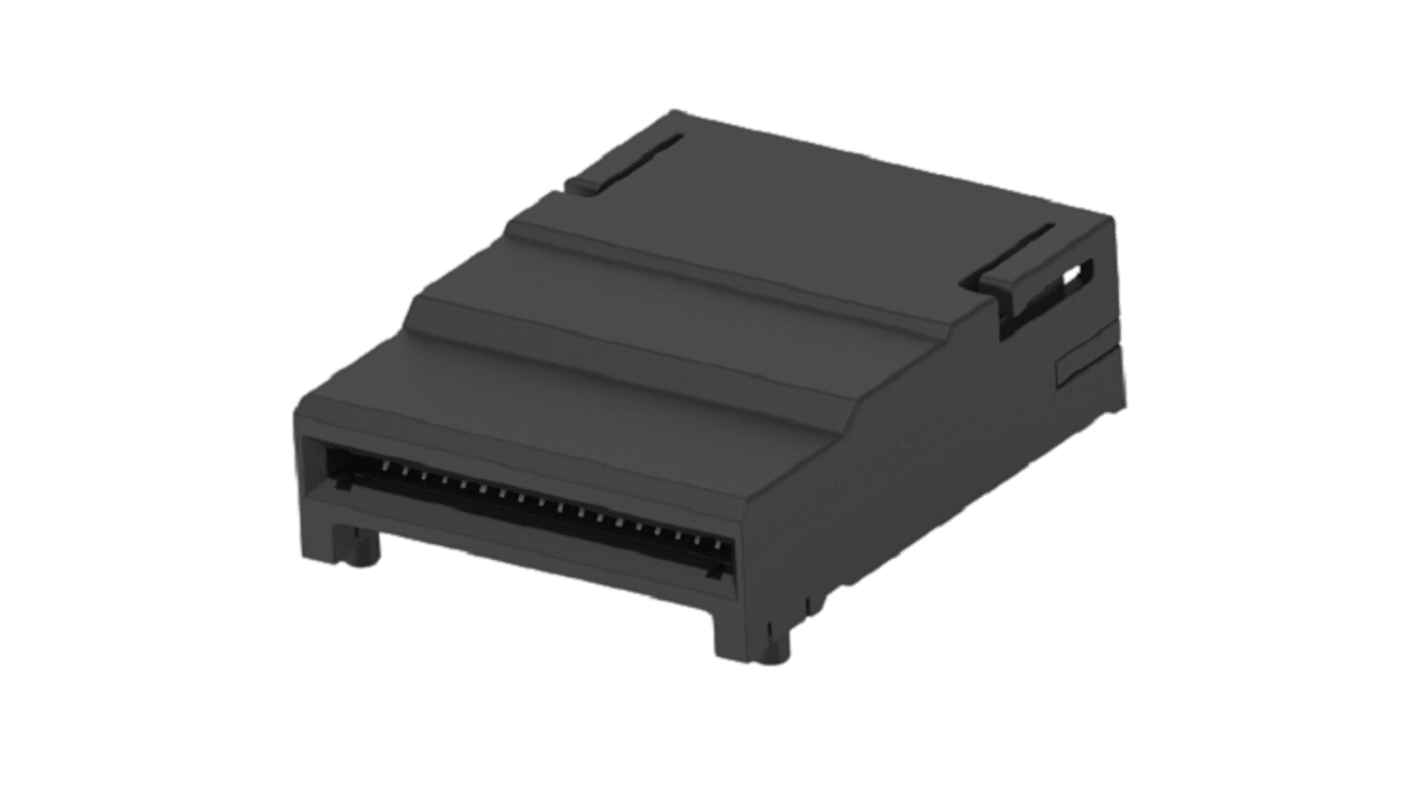

TE Connectivity Connector QSFP-DD Connector Female PCB 1 Port 76-Position, 2372133-1
- RS Stock No.:
- 251-5129
- Mfr. Part No.:
- 2372133-1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 251-5129
- Mfr. Part No.:
- 2372133-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Connector | |
| Form Factor | QSFP-DD | |
| Termination Type | PCB | |
| Sub Type | Connector | |
| Current | 0.5A | |
| Number of Ports | 1 | |
| Orientation | Straight | |
| Number of Contacts | 76 | |
| Connector Gender | Female | |
| Contact Material | Gold Plated | |
| Contact Plating | Gold | |
| Series | QSFP | |
| Contact Gender | Female | |
| Standards/Approvals | UL, REACH, RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Connector | ||
Form Factor QSFP-DD | ||
Termination Type PCB | ||
Sub Type Connector | ||
Current 0.5A | ||
Number of Ports 1 | ||
Orientation Straight | ||
Number of Contacts 76 | ||
Connector Gender Female | ||
Contact Material Gold Plated | ||
Contact Plating Gold | ||
Series QSFP | ||
Contact Gender Female | ||
Standards/Approvals UL, REACH, RoHS | ||
- COO (Country of Origin):
- CN
The TE Connectivity QSFP-DD board mount connector used in high speed data circuit application. These connectors are use with QSFP DD connector and cable. The operating temperature range of these connector is -55 to +85 °C. It has high speed data and the data rate is 112 Gb/s.
Connector system is cable-to-board
Centerline (Pitch) is 8 mm or 0.032 in
Contact current rating is 5A
