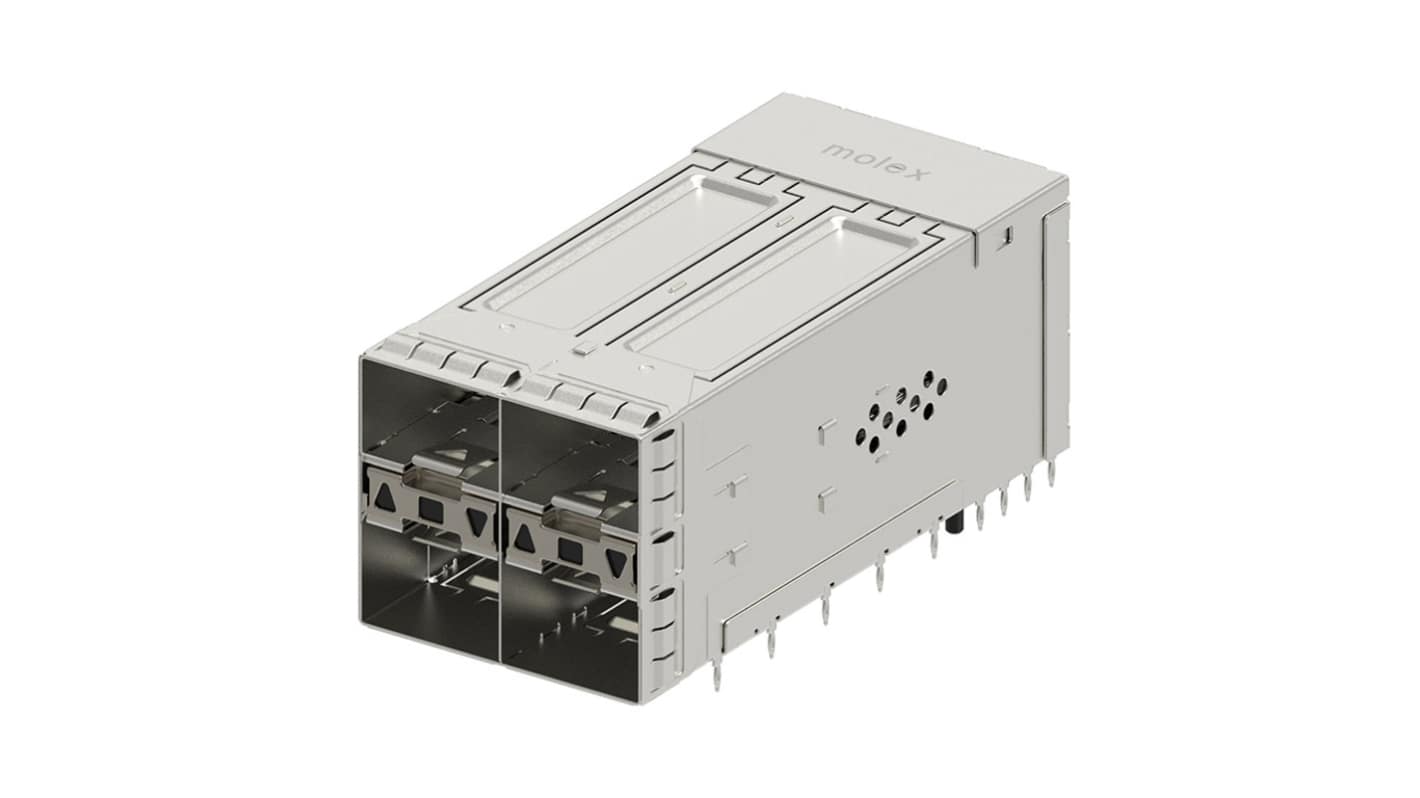

Molex zSFP+ I/O Connector Receptacle 4-Port 80-Position, 171224-2015
- RS Stock No.:
- 683-815
- Mfr. Part No.:
- 171224-2015
- Brand:
- Molex
Subtotal (1 bag of 2 units)*
£171.68
(exc. VAT)
£206.02
(inc. VAT)
Stock information currently inaccessible
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £171.68 | £85.84 |
*price indicative
- RS Stock No.:
- 683-815
- Mfr. Part No.:
- 171224-2015
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Form Factor | zSFP+ | |
Type | I/O Connector | |
Gender | Receptacle | |
Body Orientation | Right Angle | |
Number of Ports | 4 | |
Number of Contacts | 80 | |
Contact Material | High Performance Alloy | |
Select all | ||
---|---|---|
Brand Molex | ||
Form Factor zSFP+ | ||
Type I/O Connector | ||
Gender Receptacle | ||
Body Orientation Right Angle | ||
Number of Ports 4 | ||
Number of Contacts 80 | ||
Contact Material High Performance Alloy | ||
- COO (Country of Origin):
- SG
The Molex zSFP+ Stacked Ganged Assembly with Metal Spring Fingers provides a robust solution for high-speed interconnection needs. Designed for Module to Board applications this product features an innovative 2-by-2 layout with three light pipes and 80 circuits ensuring effective performance and reliability. Its sturdy construction incorporates high-performance alloy metal and high-temperature thermoplastic providing durability and exceptional signal integrity. This assembly not only meets stringent compliance standards but also supports a maximum data rate of 28.0 Gbps positioning it as an ideal choice for demanding environments where performance is paramount.
Supports a maximum current of 0.5A per contact which enhancing electrical efficiency
Durable design with up to 100 mating cycles which ensuring longevity in high-use scenarios
Black resin colour offers a sleek appearance while maintaining functionality
Right-angle orientation optimises PCB space and improves installation flexibility
Shielded design equipped with EMI fingers reduces electromagnetic interference for clearer signals
Compliant with industry standards such as EU RoHS which ensuring safety and environmental responsibility
Recommended PCB thickness of 1.57mm providing guidance for optimal installation
Polarised to both mating part and PCB preventing incorrect connections for reliability
Durable design with up to 100 mating cycles which ensuring longevity in high-use scenarios
Black resin colour offers a sleek appearance while maintaining functionality
Right-angle orientation optimises PCB space and improves installation flexibility
Shielded design equipped with EMI fingers reduces electromagnetic interference for clearer signals
Compliant with industry standards such as EU RoHS which ensuring safety and environmental responsibility
Recommended PCB thickness of 1.57mm providing guidance for optimal installation
Polarised to both mating part and PCB preventing incorrect connections for reliability
