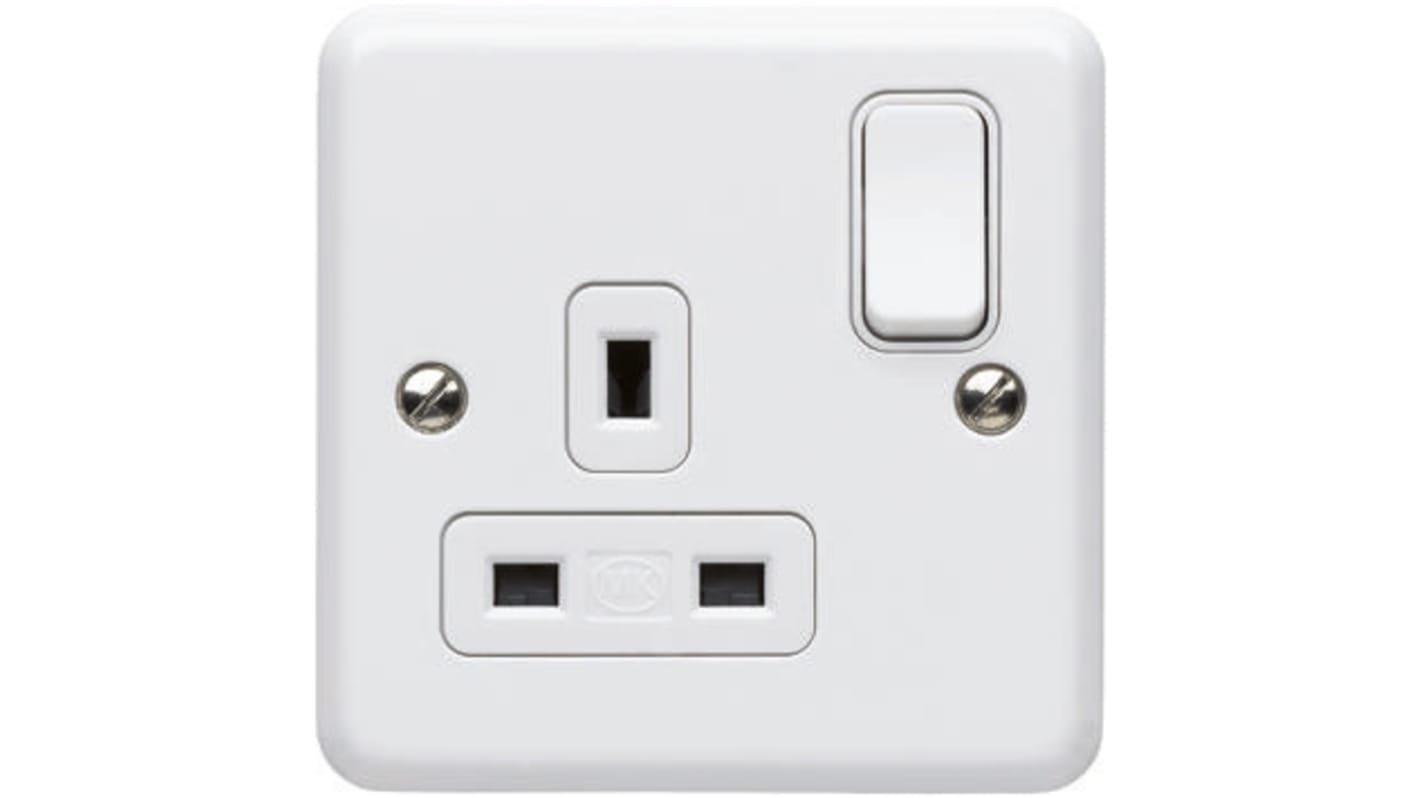

MK Electric Metalclad Plus White 1 Gang Plug Socket, 13A Indoor, Type G - British
- RS Stock No.:
- 456-771
- Mfr. Part No.:
- K3077 WHI
- Brand:
- MK Electric
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 456-771
- Mfr. Part No.:
- K3077 WHI
- Brand:
- MK Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MK Electric | |
| Product Type | Plug Socket | |
| Number of Gangs | 1 | |
| Colour | White | |
| Switched | Yes | |
| Indoor/Outdoor | Indoor | |
| Socket Type | Type G - British | |
| Mount Type | Surface | |
| Neon Indicator | Yes | |
| Current Rating | 13A | |
| Voltage | 230V | |
| Material | Heavy Gauge Steel | |
| IP Rating | IP2XD | |
| Finish | Metallic Powder Paint | |
| Minimum Box Depth | 25mm | |
| Overall Height | 86mm | |
| Overall Depth | 65mm | |
| Overall Width | 86mm | |
| Range | Metalclad Plus | |
| Series | Metalclad Plus | |
| Standards/Approvals | BS 6312 Pt.2, BS 1363 Pt.2:1995, FCC68, BS 5733:1995, BS EN 50173, BS EN 60947-3:1992, OFTEL NS/G/23/L/100005, BS 7671:2008, IEC 11801, BS 4662:1970, TIA/EIA 568-A, SASO 2203:2003, BS 1363 Pt.4:1995, BS 7288:1990, BS 546:1950, BS EN 60669-1:2000, TIA/EIA TSB40A, ISO/IEC11801 | |
| Faceplate Depth | 7mm | |
| Switch Style | Rocker | |
| Select all | ||
|---|---|---|
Brand MK Electric | ||
Product Type Plug Socket | ||
Number of Gangs 1 | ||
Colour White | ||
Switched Yes | ||
Indoor/Outdoor Indoor | ||
Socket Type Type G - British | ||
Mount Type Surface | ||
Neon Indicator Yes | ||
Current Rating 13A | ||
Voltage 230V | ||
Material Heavy Gauge Steel | ||
IP Rating IP2XD | ||
Finish Metallic Powder Paint | ||
Minimum Box Depth 25mm | ||
Overall Height 86mm | ||
Overall Depth 65mm | ||
Overall Width 86mm | ||
Range Metalclad Plus | ||
Series Metalclad Plus | ||
Standards/Approvals BS 6312 Pt.2, BS 1363 Pt.2:1995, FCC68, BS 5733:1995, BS EN 50173, BS EN 60947-3:1992, OFTEL NS/G/23/L/100005, BS 7671:2008, IEC 11801, BS 4662:1970, TIA/EIA 568-A, SASO 2203:2003, BS 1363 Pt.4:1995, BS 7288:1990, BS 546:1950, BS EN 60669-1:2000, TIA/EIA TSB40A, ISO/IEC11801 | ||
Faceplate Depth 7mm | ||
Switch Style Rocker | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
13A Switched Sockets
Tough and impact resistant
Backed out terminal screws
Clear terminal markings
Double Pole switching
3 pin operated shutter
Stylish design
Finish is corrosion and scratch resistant
Mounting boxes not supplied
MK White Metalclad Plus
A comprehensive range of tough, impact resistant, surface mounted wiring devices. The products have been designed to suit a wide variety of applications in factories, workshops, plant rooms, warehouses, schools and hospitals as well as being ideal around the home in garages and sheds.
Outer casing is manufactured from tough mild steel with a scratch resistant paint finish
3-pin operated safety shutter on all sockets
Easy to install *Double pole switches on all products
Neutral contact makes first and breaks last for added safety
Minimum 3mm contact gap for safety switch isolation
Fuse carrier can be padlocked in open position for safe maintenance
Can be flush or surface mounted
