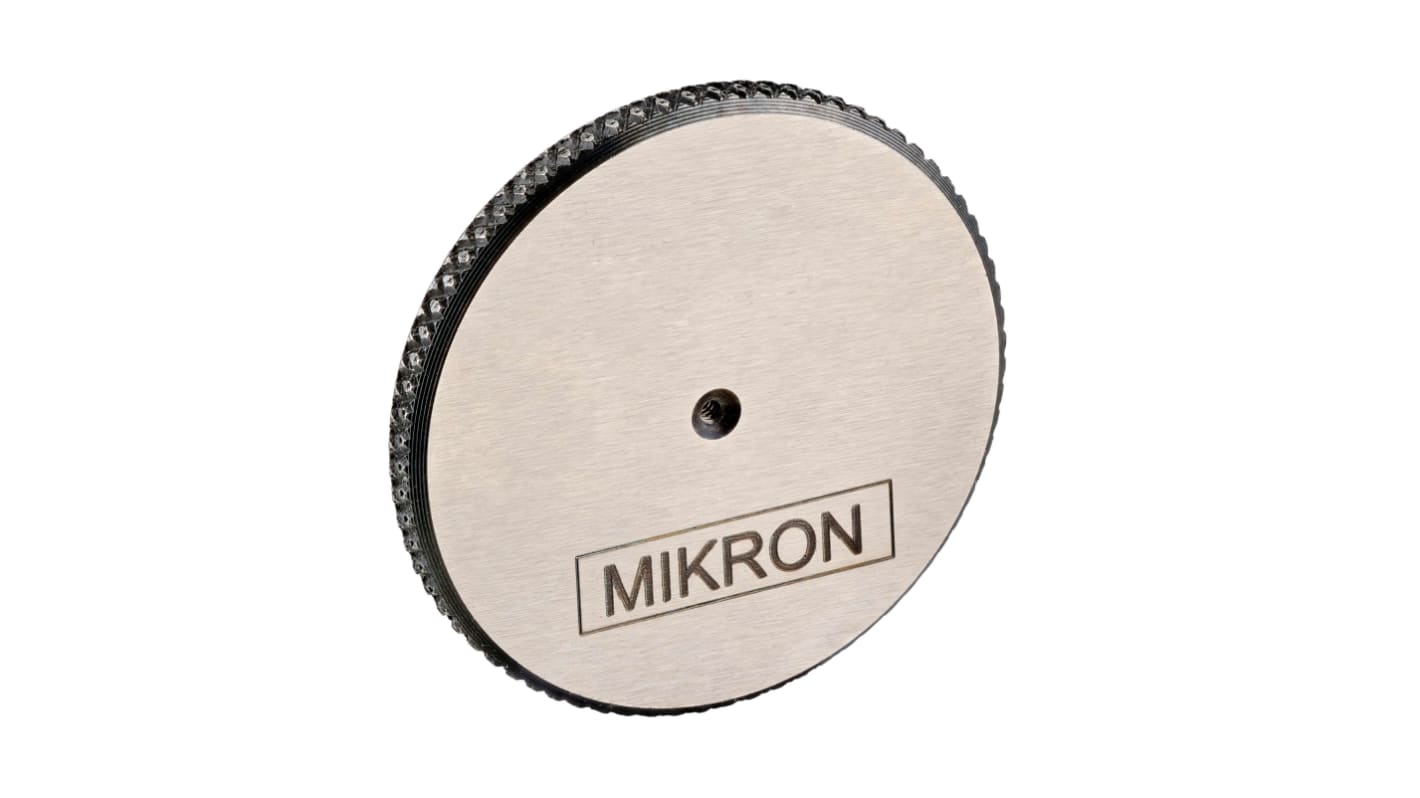

MikronTec M12 x 1.75 Ring Thread Gauge Ring Gauge, 1.75mm Pitch Diameter
- RS Stock No.:
- 265-8536
- Mfr. Part No.:
- 91A01200N1D
- Brand:
- MikronTec
Available to back order for despatch 24/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£84.18
(exc. VAT)
£101.02
(inc. VAT)
| Units | Per unit |
| 1 + | £84.18 |
- RS Stock No.:
- 265-8536
- Mfr. Part No.:
- 91A01200N1D
- Brand:
- MikronTec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The MikronTec thread ring gauge is a gauge used to test a threaded shaft. The Go gauge must be able to be screwed on the threaded shaft without excessive force. The No-Go gauge (indicated in red) must not fit on the test item. These gauges are used to check whether the actual thread of a test item is within a specified target range.
Conforms to DIN13 - ISO 1502
Right handled
High precision and fast μm production
Right handled
High precision and fast μm production
Specifications
Attribute | Value |
|---|---|
| Plug/Ring | Ring |
| Gauge Type | Ring Thread Gauge |
| Go / No Go | Go |
| Thread Size | M12 x 1.75 |
| Pitch Diameter | 1.75mm |
