- RS Stock No.:
- 177-0537
- Mfr. Part No.:
- 16338
- Brand:
- Volkel
2 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£53.49
(exc. VAT)
£64.19
(inc. VAT)
| Units | Per unit |
| 1 + | £53.49 |
Calibration Options:
- RS Stock No.:
- 177-0537
- Mfr. Part No.:
- 16338
- Brand:
- Volkel
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

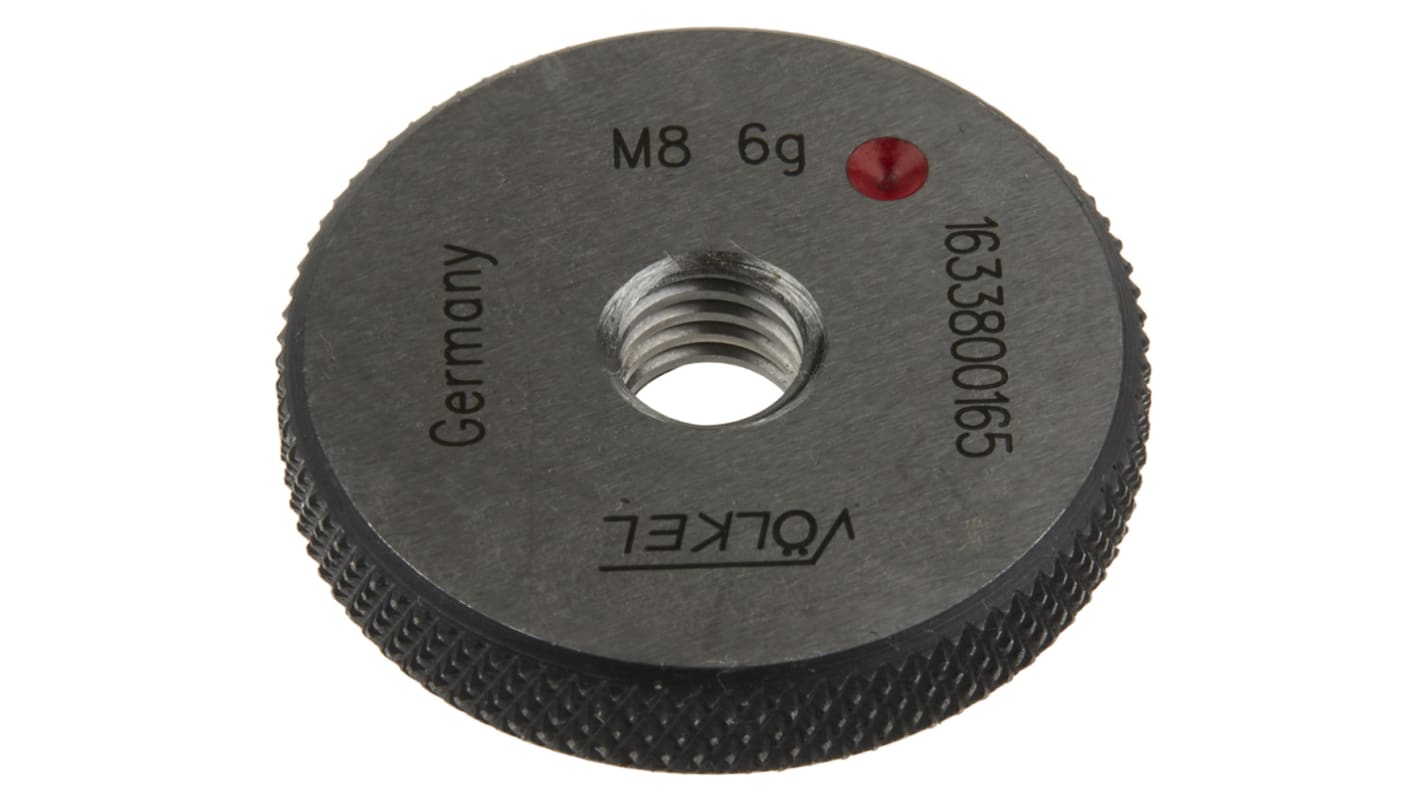

Volkel No-Go Ring Gauge
The Volkel No-Go ring gauge M8x1.25 is calibrated at measurement laboratory using the IAC thread scanners. This No-Go thread gauge is marked in red. This thread No-Go ring gauge must not screw into the part by hand by more than two threads. The reference temperature for parts and gauge is 20°C. It is made from high-quality raw material. This gauge is mostly used as an inspection tool.
Features and Benefits
• Metric measurement system
• 6g tolerance
• High durability and reliability
• Compact in size and rugged
• Easy to use
• Accurate
• 6g tolerance
• High durability and reliability
• Compact in size and rugged
• Easy to use
• Accurate
Certifications
• ISO1502
• DIN13
• DIN13
Certifications
• ISO1502
• DIN13
• DIN13
Specifications
Attribute | Value |
|---|---|
| Plug/Ring | Ring |
| Gauge Type | Ring Thread Gauge |
| Go / No Go | No Go |
| Thread Size | M8 x 1.25 |
| Pitch Diameter | 1.25mm |
| Tolerance | 6g |
| Imperial or Metric | Metric |
