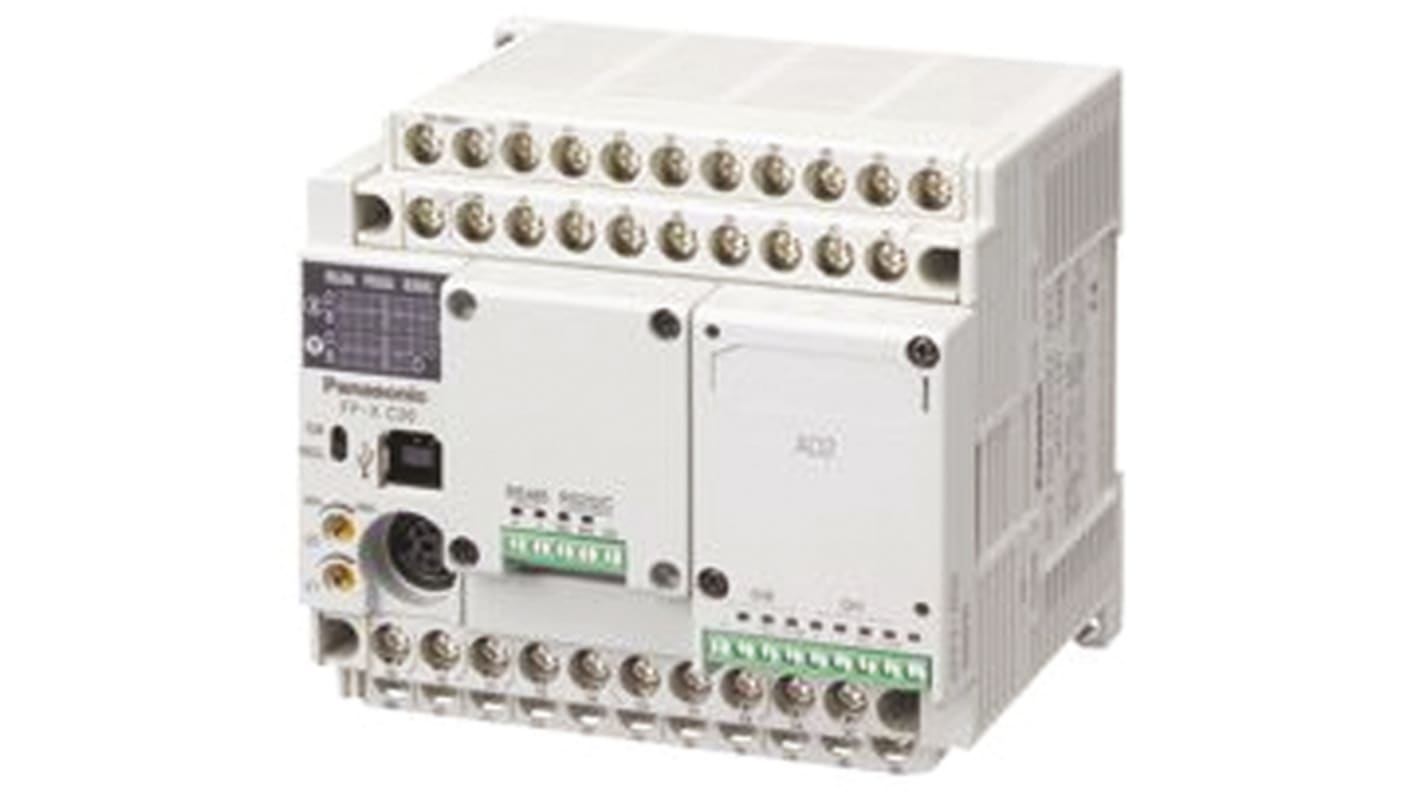

Panasonic AFPX-C Series Series PLC CPU for Use with FP-X Series, Relay Output, 32-Input, DC Input
- RS Stock No.:
- 815-5638
- Mfr. Part No.:
- AFPX-C60R
- Brand:
- Panasonic
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 815-5638
- Mfr. Part No.:
- AFPX-C60R
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Manufacturer Series | AFPX-C Series | |
| Number of Inputs | 32 | |
| Output Type | Relay | |
| For Use With | FP-X Series | |
| Input Type | DC | |
| Number of Outputs | 28 | |
| Voltage Category | 100 → 240 V ac | |
| Network Type | Ethernet | |
| Minimum Operating Temperature | 0°C | |
| Battery Backup | Yes | |
| Communication Port Type | Ethernet, RS232C | |
| Program Capacity | 32 Steps | |
| Length | 190mm | |
| Width | 90mm | |
| Mounting Type | DIN Rail | |
| Programming Language Used | C, Ladder, SFC, ST | |
| Number of Communication Ports | 2 | |
| Output Current | 2 A | |
| Memory | 64 MB | |
| Programming Interface | 3-Wire, USB | |
| Maximum Operating Temperature | +55°C | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Manufacturer Series AFPX-C Series | ||
Number of Inputs 32 | ||
Output Type Relay | ||
For Use With FP-X Series | ||
Input Type DC | ||
Number of Outputs 28 | ||
Voltage Category 100 → 240 V ac | ||
Network Type Ethernet | ||
Minimum Operating Temperature 0°C | ||
Battery Backup Yes | ||
Communication Port Type Ethernet, RS232C | ||
Program Capacity 32 Steps | ||
Length 190mm | ||
Width 90mm | ||
Mounting Type DIN Rail | ||
Programming Language Used C, Ladder, SFC, ST | ||
Number of Communication Ports 2 | ||
Output Current 2 A | ||
Memory 64 MB | ||
Programming Interface 3-Wire, USB | ||
Maximum Operating Temperature +55°C | ||
- COO (Country of Origin):
- JP
AFPX Series PLC CPU
Professional range of PLCs which can provide the user with a secure, high-powered unit with exeptional expandability thanks to the variety of expansion cassettes available for the series.
APFX programmable controllers offer a Servo and Stepper motor control solution with diverse control options. With these applications in mind the AFPX series of general purpose PLC which is well suited for small scale equipment control enabling multi-axis control within a small space
APFX programmable controllers offer a Servo and Stepper motor control solution with diverse control options. With these applications in mind the AFPX series of general purpose PLC which is well suited for small scale equipment control enabling multi-axis control within a small space
Supplied in both 3 & 4-axis transistor pulse output options
Selected models come equipped with a USB communication port
16 & 32 KStep program capacity options available
Equipped with "Sampling Trace Function", a program debugging feature
Comprehensive range of communication cassettes available including:
Ethernet & RS232C ( 815-5818 )
Selection of Application cassettes are also available.
Selected models come equipped with a USB communication port
16 & 32 KStep program capacity options available
Equipped with "Sampling Trace Function", a program debugging feature
Comprehensive range of communication cassettes available including:
Ethernet & RS232C ( 815-5818 )
Selection of Application cassettes are also available.
Panasonic AFPX Series PLC CPU
