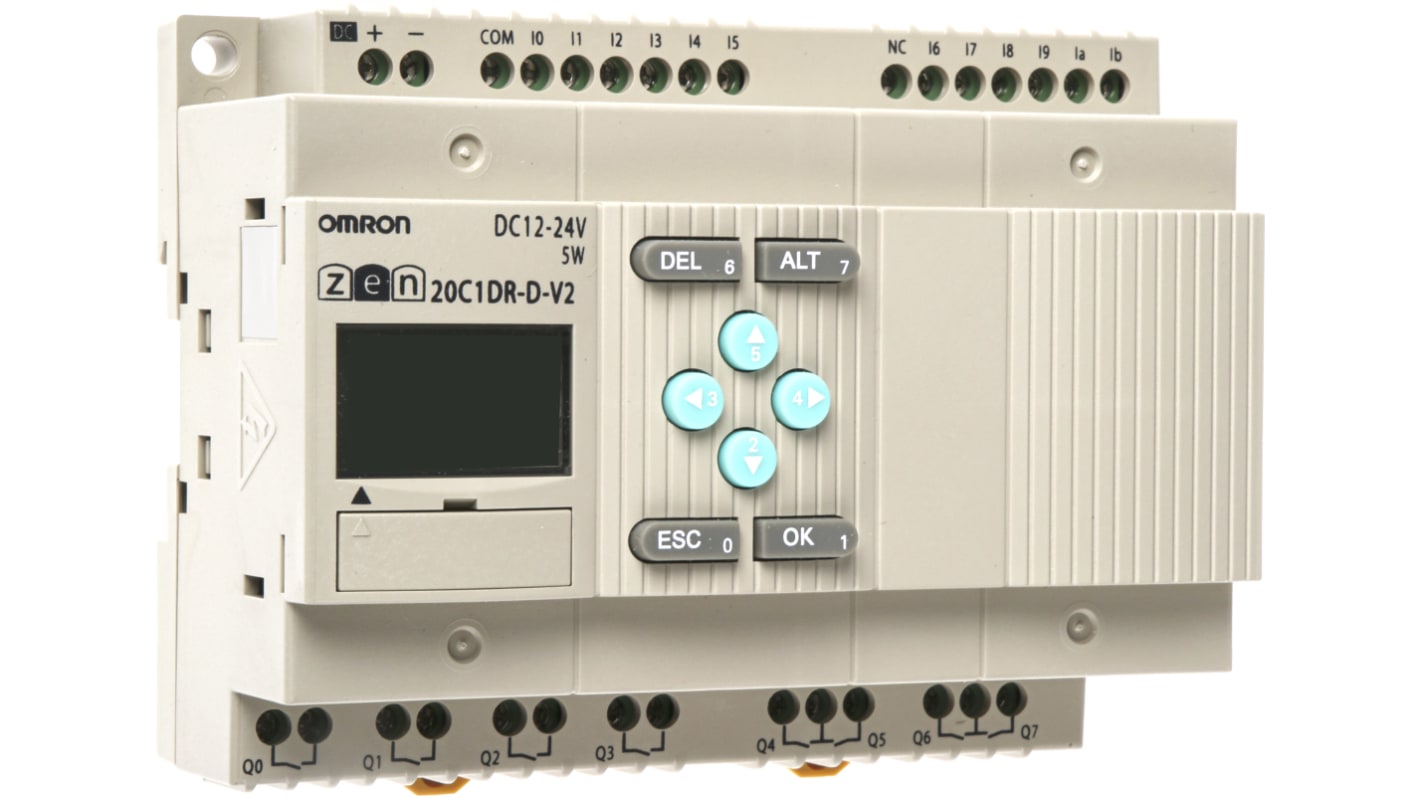

Omron ZEN Series Logic Module, 12 → 24 V dc Supply, Relay Output, 12-Input, Analogue Input
- RS Stock No.:
- 650-2984
- Mfr. Part No.:
- ZEN-20C1DR-D-V2
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£427.74
(exc. VAT)
£513.29
(inc. VAT)
- RS Stock No.:
- 650-2984
- Mfr. Part No.:
- ZEN-20C1DR-D-V2
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Manufacturer Series | ZEN | |
| Number of Inputs | 12 | |
| Output Type | Relay | |
| Supply Voltage | 12 → 24 V dc | |
| Input Type | Analogue | |
| Number of Outputs | 8 | |
| Depth | 56mm | |
| Program Capacity | 96 | |
| Mounting Type | DIN Rail | |
| Programming Interface | Computer | |
| Programming Language Used | Ladder Diagram | |
| Number of Communication Ports | 1 | |
| Length | 94.7mm | |
| Display Included | Yes | |
| Communication Port Type | RS485 | |
| Maximum Operating Temperature | +55°C | |
| Standards Met | CE | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 94.7 x 70 x 56 mm | |
| Width | 70mm | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Manufacturer Series ZEN | ||
Number of Inputs 12 | ||
Output Type Relay | ||
Supply Voltage 12 → 24 V dc | ||
Input Type Analogue | ||
Number of Outputs 8 | ||
Depth 56mm | ||
Program Capacity 96 | ||
Mounting Type DIN Rail | ||
Programming Interface Computer | ||
Programming Language Used Ladder Diagram | ||
Number of Communication Ports 1 | ||
Length 94.7mm | ||
Display Included Yes | ||
Communication Port Type RS485 | ||
Maximum Operating Temperature +55°C | ||
Standards Met CE | ||
Minimum Operating Temperature 0°C | ||
Dimensions 94.7 x 70 x 56 mm | ||
Width 70mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Omron ZEN Series Logic Module, 12 to 24V DC Supply Voltage, DIN Rail Mounting - ZEN-20C1DR-D-V2
This programmable relay logic module features a compact design with dimensions of 94.7x70x56mm. It utilises 12 input and 8 output channels to deliver effective performance in various control settings.
Features & Benefits
• Integrated RS485 communication enables seamless connectivity
• Supports up to 44 I/O points with expansion modules
• User-friendly programming through LCD and push buttons
• High accuracy with ±1.5% FS on analogue inputs
• Supports up to 44 I/O points with expansion modules
• User-friendly programming through LCD and push buttons
• High accuracy with ±1.5% FS on analogue inputs
Applications
• Used for automation control in industrial settings
• Ideal for precise timing and counting tasks
• Suitable for complex relay and counter applications
• Enhances control over temperature and analogue signals
• Ideal for precise timing and counting tasks
• Suitable for complex relay and counter applications
• Enhances control over temperature and analogue signals
Can it handle multiple relay outputs simultaneously?
Yes, it can manage multiple relay outputs effectively.
Is it compatible with PLC programming software?
Yes, the device supports integration with specific PLC programming software.
Will it allow for easy expansion with additional units?
Yes, it supports expansion with up to three additional I/O units.
Can it operate in a high-temperature environment?
It operates effectively at temperatures up to 55°C.
Is it suitable for use in small-scale automation systems?
Yes, it is ideal for small-scale control applications.
