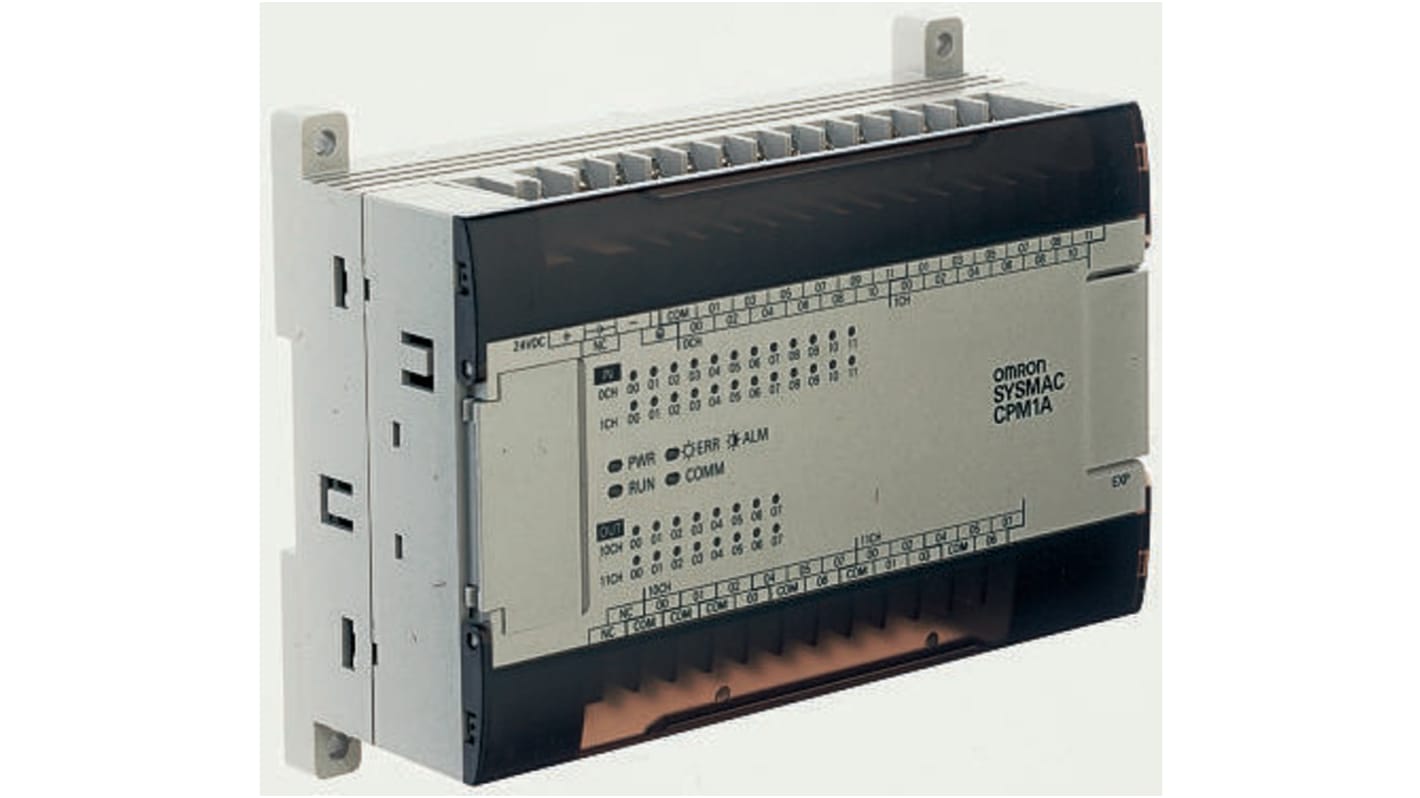

Omron CPM1A Series PLC CPU for Use with CPM1A Series, Transistor Output, 12 (DC)-Input, DC Input
- RS Stock No.:
- 432-9507
- Mfr. Part No.:
- CPM1A20CDT1DV1
- Brand:
- Omron
Image representative of range
Stock information currently inaccessible
- RS Stock No.:
- 432-9507
- Mfr. Part No.:
- CPM1A20CDT1DV1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Manufacturer Series | CPM1A | |
| Number of Inputs | 12 (DC) | |
| Output Type | Transistor | |
| For Use With | CPM1A Series | |
| Input Type | DC | |
| Number of Outputs | 8 (Transistor) | |
| Voltage Category | 24 V dc | |
| Network Type | DeviceNet | |
| Kit Included | Yes | |
| Length | 90mm | |
| Depth | 50mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +55°C | |
| Number of Communication Ports | 1 | |
| Programming Language Used | Ladder Logic | |
| Program Capacity | 2048 Words | |
| Programming Interface | Computer | |
| Memory | 1024 (Data Memory) Words, 2048 (Program Memory) Words | |
| Output Current | 1.8 (Maximum) A | |
| Width | 86mm | |
| Dimensions | 90 x 86 x 50 mm | |
| Communication Port Type | RS232C | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Manufacturer Series CPM1A | ||
Number of Inputs 12 (DC) | ||
Output Type Transistor | ||
For Use With CPM1A Series | ||
Input Type DC | ||
Number of Outputs 8 (Transistor) | ||
Voltage Category 24 V dc | ||
Network Type DeviceNet | ||
Kit Included Yes | ||
Length 90mm | ||
Depth 50mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +55°C | ||
Number of Communication Ports 1 | ||
Programming Language Used Ladder Logic | ||
Program Capacity 2048 Words | ||
Programming Interface Computer | ||
Memory 1024 (Data Memory) Words, 2048 (Program Memory) Words | ||
Output Current 1.8 (Maximum) A | ||
Width 86mm | ||
Dimensions 90 x 86 x 50 mm | ||
Communication Port Type RS232C | ||
RoHS Status: Not Applicable
