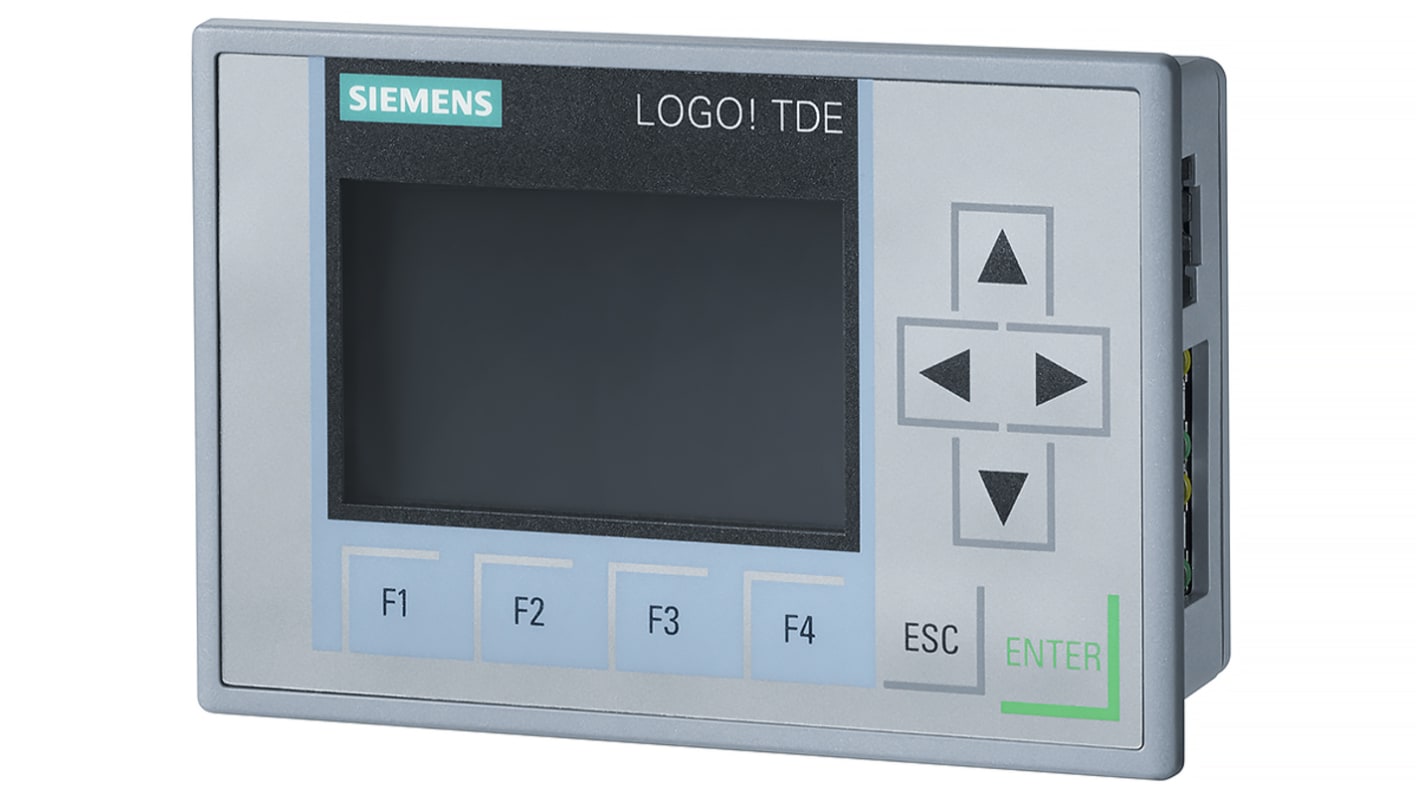

Siemens LOGO! Series Display Panel for Use with LOGO! 8.2, 12 → 24 V dc Supply
- RS Stock No.:
- 165-3231
- Mfr. Part No.:
- 6ED1055-4MH08-0BA0
- Brand:
- Siemens
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£152.51
(exc. VAT)
£183.01
(inc. VAT)
- RS Stock No.:
- 165-3231
- Mfr. Part No.:
- 6ED1055-4MH08-0BA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | LOGO! | |
| For Use With | LOGO! 8.2 | |
| Supply Voltage | 12 → 24 V dc | |
| Network Type | Ethernet | |
| Communication Port Type | Ethernet | |
| Display Included | Yes | |
| Depth | 38.7mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 86mm | |
| Width | 128.2mm | |
| Standards Met | CE, FM Approval, KC Approval, UL Approval | |
| Maximum Operating Temperature | +55°C | |
| Mounting Type | Panel Mount | |
| Dimensions | 86 x 128.2 x 38.7 mm | |
| Number of Communication Ports | 1 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series LOGO! | ||
For Use With LOGO! 8.2 | ||
Supply Voltage 12 → 24 V dc | ||
Network Type Ethernet | ||
Communication Port Type Ethernet | ||
Display Included Yes | ||
Depth 38.7mm | ||
Minimum Operating Temperature -20°C | ||
Length 86mm | ||
Width 128.2mm | ||
Standards Met CE, FM Approval, KC Approval, UL Approval | ||
Maximum Operating Temperature +55°C | ||
Mounting Type Panel Mount | ||
Dimensions 86 x 128.2 x 38.7 mm | ||
Number of Communication Ports 1 | ||
- COO (Country of Origin):
- CN
Siemens Expansion Module
The Siemens LOGO! 8.2 series logic module has 2 Ethernet communication ports. This panel-mount logic module has a screw termination method. It has an SD-card slot for applications that require a larger space. The logic module has a supply voltage that ranges between 12VDC and 24VDC and outputs current of 10A. It also has a ’text message communication’ function for alerts. The LOGO! CMR module makes it possible to provide control via smartphone. The LOGO! web editor is a new tool used together with a LOGO! base module (BM) and LOGO! soft comfort. This tool helps you create user-defined web pages in the editor pane and visit the whole project through a web server of a LOGO! base module. The data of the logic module can be accessed through the LOGO! access tool V2.0.0.
Features and Benefits
Simplified handling
Operating temperature ranges between -20°C and 55°C
New optical indicating display
Full communication function
Integrated web server
6 line display with 20 characters per line
Orange and red backlighting
Logic Modules are compatible for all voltages
Integrated Ethernet connectivity
No HTML knowledge required
Operating temperature ranges between -20°C and 55°C
New optical indicating display
Full communication function
Integrated web server
6 line display with 20 characters per line
Orange and red backlighting
Logic Modules are compatible for all voltages
Integrated Ethernet connectivity
No HTML knowledge required
Applications
Built-in web server
Datalog
User-defined web page
Filter and transport systems
Monitoring equipment or building management systems
Datalog
User-defined web page
Filter and transport systems
Monitoring equipment or building management systems
Certifications
CSA certified
UL approved
CE
FM approved
UL approved
CE
FM approved
