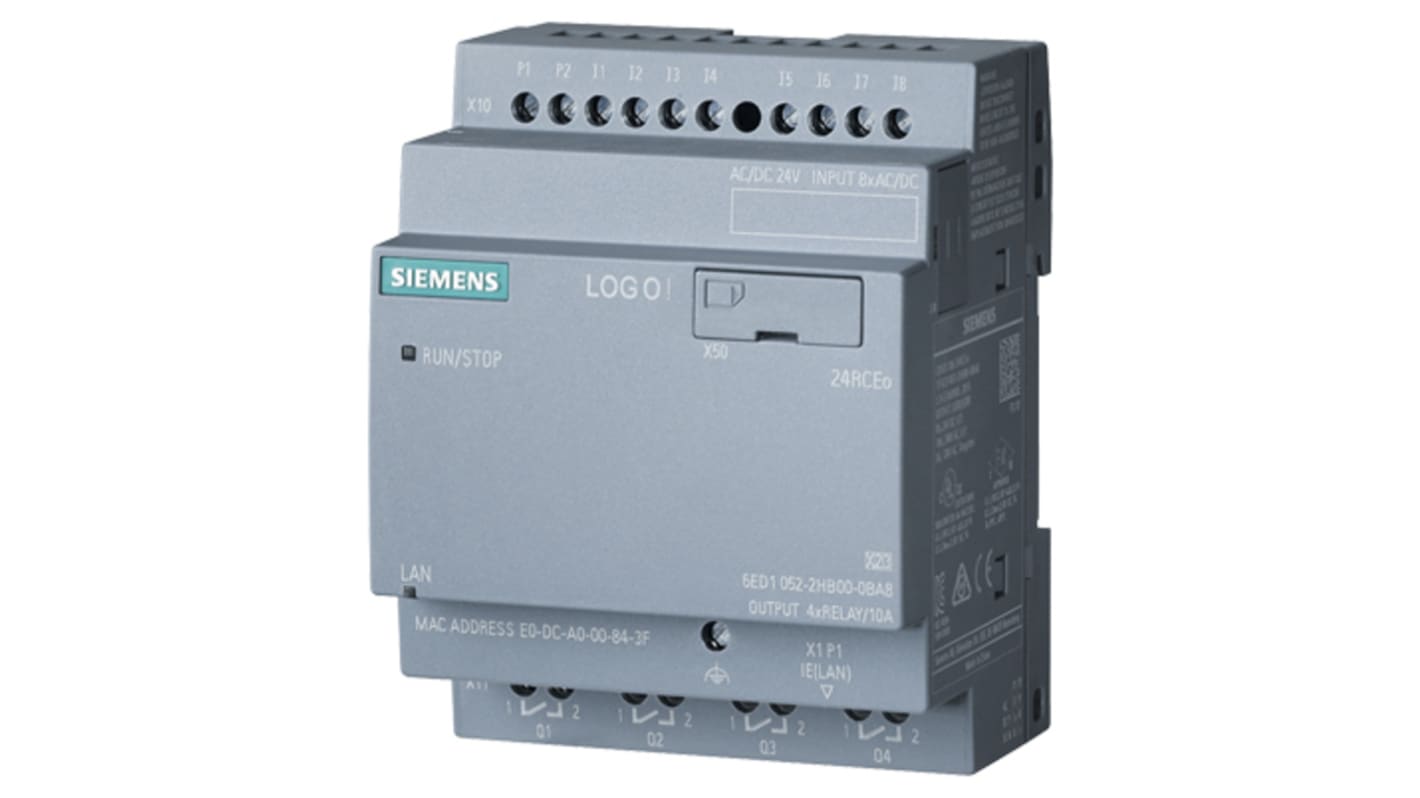

Siemens LOGO! Logic Module, 24 V dc Relay, 8 x Input, 4 x Output Without Display
- RS Stock No.:
- 165-3229
- Mfr. Part No.:
- 6ED1052-2HB08-0BA0
- Brand:
- Siemens
Subtotal (1 unit)*
£92.00
(exc. VAT)
£110.40
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £92.00 |
*price indicative
- RS Stock No.:
- 165-3229
- Mfr. Part No.:
- 6ED1052-2HB08-0BA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | LOGO! | |
| Number of Inputs | 8 | |
| Output Type | Relay | |
| For Use With | LOGO! 8.2 | |
| Supply Voltage | 24 V dc | |
| Input Type | Digital | |
| Number of Outputs | 4 | |
| Network Type | Ethernet | |
| Standards Met | CE, CSA Approval, EN 55011, EN 60529, FM Approval, IEC 61131, UL Approval, VDE 0631 | |
| Maximum Operating Temperature | +55°C | |
| Mounting Type | DIN Rail | |
| Depth | 58mm | |
| Minimum Operating Temperature | -20°C | |
| Length | 90mm | |
| Width | 71.5mm | |
| Dimensions | 90 x 71.5 x 58 mm | |
| Output Current | 10 A | |
| Number of Communication Ports | 1 | |
| Communication Port Type | Ethernet | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series LOGO! | ||
Number of Inputs 8 | ||
Output Type Relay | ||
For Use With LOGO! 8.2 | ||
Supply Voltage 24 V dc | ||
Input Type Digital | ||
Number of Outputs 4 | ||
Network Type Ethernet | ||
Standards Met CE, CSA Approval, EN 55011, EN 60529, FM Approval, IEC 61131, UL Approval, VDE 0631 | ||
Maximum Operating Temperature +55°C | ||
Mounting Type DIN Rail | ||
Depth 58mm | ||
Minimum Operating Temperature -20°C | ||
Length 90mm | ||
Width 71.5mm | ||
Dimensions 90 x 71.5 x 58 mm | ||
Output Current 10 A | ||
Number of Communication Ports 1 | ||
Communication Port Type Ethernet | ||
- COO (Country of Origin):
- CN
Siemens Logic Module
The Siemens LOGO! 8.2 series logic module has 8 digital inputs and 4 relay outputs with a contact rating of 10A. This DIN rail mount logic module has a screw termination method. This logic module has a supply voltage of 24VDC. It has a text message communication function for alerts. Control via a smartphone is made possible using the LOGO! CMR module. The LOGO! web editor is a new tool used together with LOGO! base module (BM) and LOGO! soft comfort. This tool helps you to create user-defined web pages in the editor pane and visit the whole project through the web server of the LOGO! base module. The data of a logic module can be accessed through the LOGO! access tool V2.0.0.
Features and Benefits
Logic module without display
Simplified handling
Operating temperature ranges between -20°C and 55°C
Full communication function
Integrated web server
Orange and red backlighting
Logic modules are compatible for all the voltages
Integrated Ethernet connectivity
No HTML knowledge required
Modularly expandable
User-defined web pages data logging
Simplified handling
Operating temperature ranges between -20°C and 55°C
Full communication function
Integrated web server
Orange and red backlighting
Logic modules are compatible for all the voltages
Integrated Ethernet connectivity
No HTML knowledge required
Modularly expandable
User-defined web pages data logging
Applications
Built-in web server
Datalog
User-defined web page
Industrial and manufacturing processes
Building management systems
Datalog
User-defined web page
Industrial and manufacturing processes
Building management systems
Certifications
CSA certified
UL approved
CE
FM approved
UL approved
CE
FM approved
