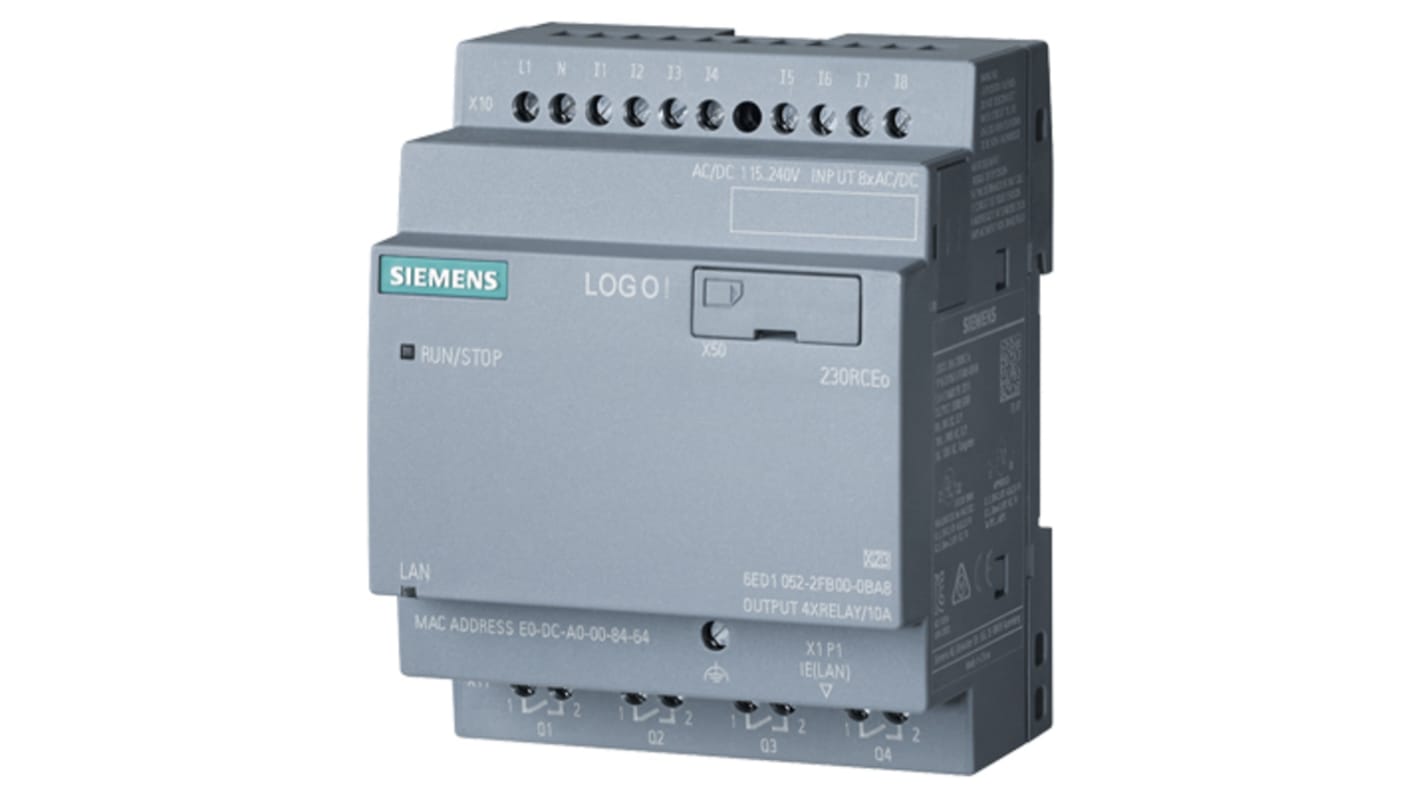

Siemens LOGO! Series Logic Module for Use with LOGO! 8.2, 115 V ac/dc, 230 V ac/dc Supply, Relay Output, 8-Input,
- RS Stock No.:
- 165-3228
- Mfr. Part No.:
- 6ED1052-2FB08-0BA0
- Brand:
- Siemens
Subtotal (1 unit)*
£95.00
(exc. VAT)
£114.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £95.00 |
*price indicative
- RS Stock No.:
- 165-3228
- Mfr. Part No.:
- 6ED1052-2FB08-0BA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | LOGO! | |
| Number of Inputs | 8 | |
| Output Type | Relay | |
| For Use With | LOGO! 8.2 | |
| Supply Voltage | 115 V ac/dc, 230 V ac/dc | |
| Input Type | Digital | |
| Number of Outputs | 4 | |
| Network Type | Ethernet | |
| Dimensions | 90 x 71.5 x 60 mm | |
| Minimum Operating Temperature | -20°C | |
| Mounting Type | DIN Rail | |
| Length | 90mm | |
| Number of Communication Ports | 1 | |
| Output Current | 10 A | |
| Communication Port Type | Ethernet | |
| Standards Met | CE, CSA Approval, EN 55011, EN 60529, FM Approval, IEC 61131, UL Approval, VDE 0631 | |
| Maximum Operating Temperature | +55°C | |
| Width | 71.5mm | |
| Depth | 60mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series LOGO! | ||
Number of Inputs 8 | ||
Output Type Relay | ||
For Use With LOGO! 8.2 | ||
Supply Voltage 115 V ac/dc, 230 V ac/dc | ||
Input Type Digital | ||
Number of Outputs 4 | ||
Network Type Ethernet | ||
Dimensions 90 x 71.5 x 60 mm | ||
Minimum Operating Temperature -20°C | ||
Mounting Type DIN Rail | ||
Length 90mm | ||
Number of Communication Ports 1 | ||
Output Current 10 A | ||
Communication Port Type Ethernet | ||
Standards Met CE, CSA Approval, EN 55011, EN 60529, FM Approval, IEC 61131, UL Approval, VDE 0631 | ||
Maximum Operating Temperature +55°C | ||
Width 71.5mm | ||
Depth 60mm | ||
- COO (Country of Origin):
- CN
Siemens Logic Module
The Siemens LOGO! 8.2 series logic module has 8 digital inputs and 4 relay outputs with a contact rating of 10A. This DIN rail mount logic module has a screw termination method. This logic module has a supply voltage of 115VAC, 230VAC. It has a text message communication function for alerts. Control via a smartphone is made possible using the LOGO! CMR module. The LOGO! web editor is a new tool used together with LOGO! base module (BM) and LOGO! soft comfort. This tool helps you create user-defined web pages in the editor pane and visit the whole project through the web server of the LOGO! base module. The data of a logic module can be accessed through the LOGO! access tool V2.0.0.
Features and Benefits
Logic module without display 8DE/4DA
Simplified handling
Operating temperature ranges between -20°C and 55°C
Full communication function
Integrated web server
Orange and red backlighting
Logic modules are compatible for all the voltages
Integrated Ethernet connectivity
No HTML knowledge required
Modularly expandable
Simplified handling
Operating temperature ranges between -20°C and 55°C
Full communication function
Integrated web server
Orange and red backlighting
Logic modules are compatible for all the voltages
Integrated Ethernet connectivity
No HTML knowledge required
Modularly expandable
Applications
Built-in web server
Datalog
User-defined web page
Industrial and manufacturing processes
Building management technology
Datalog
User-defined web page
Industrial and manufacturing processes
Building management technology
Certifications
CSA certified
UL approved
CE
FM approved
VDE approved
UL approved
CE
FM approved
VDE approved
