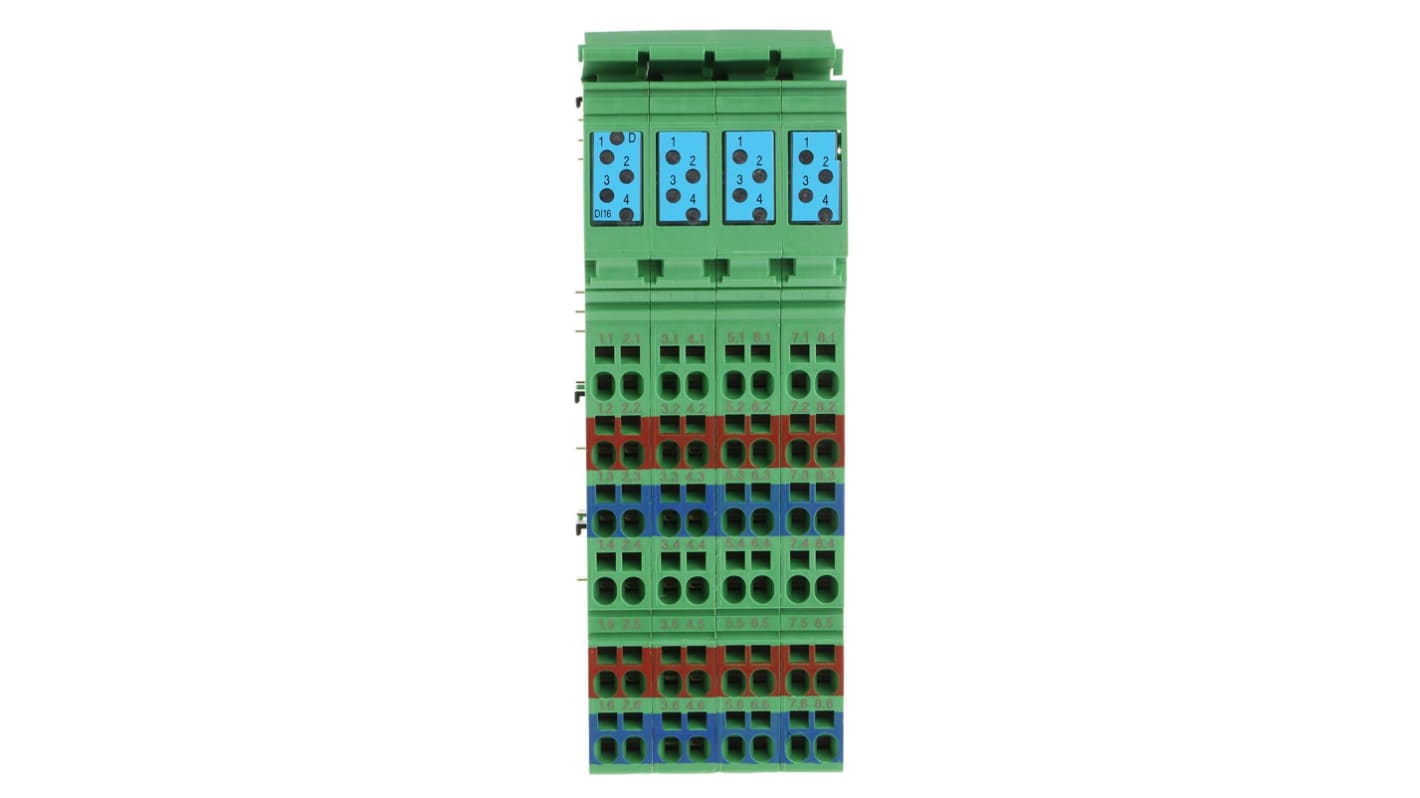

Phoenix Contact IB IL 24 DI 16-PAC Series Terminal Block, Digital, 19.2 → 30 V dc
- RS Stock No.:
- 801-7441
- Distrelec Article No.:
- 301-05-479
- Mfr. Part No.:
- 2861250
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£185.55
(exc. VAT)
£222.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5 unit(s) shipping from 27 October 2025
- Plus 5 unit(s) shipping from 27 October 2025
- Plus 999,999,994 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £185.55 |
*price indicative
- RS Stock No.:
- 801-7441
- Distrelec Article No.:
- 301-05-479
- Mfr. Part No.:
- 2861250
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Accessory Type | Terminal Block | |
| Series | IB IL 24 DI 16-PAC | |
| Input Type | Digital | |
| Supply Voltage | 19.2 → 30 V dc | |
| Mounting Type | DIN Rail | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 140.5 x 48.8 x 71.5 mm | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Accessory Type Terminal Block | ||
Series IB IL 24 DI 16-PAC | ||
Input Type Digital | ||
Supply Voltage 19.2 → 30 V dc | ||
Mounting Type DIN Rail | ||
Maximum Operating Temperature +55°C | ||
Dimensions 140.5 x 48.8 x 71.5 mm | ||
- COO (Country of Origin):
- DE
IB Inline Terminal
Phoenix Contact Inline Station Terminal Block, 19.2 to 30V DC - IB IL 24 DI 16-PAC - 2861250
Safely connect wires to your printed circuit board using this Phoenix Contact terminal block. It's designed for use with the flexible inline system from Phoenix Contact. This means you can insert it as part of the operating system in your control cabinet. Thanks to the convenient modular design, you can attach other inline components to expand its applications.
The unit accepts digital signals via a 3-wire spring-cage connection that maintains a stable fit for a smooth supply of the 24V DC operating voltage. An IP20 (ingress protection) rating means it's touch-proof and protected against objects over 12mm in size, for safe handling.
This terminal block is a reliable communication module and can transmit data up to 500kbps (kilobits per second). Quickly and easily mount this terminal block on your DIN rail to conveniently automate your machine's process.
The unit accepts digital signals via a 3-wire spring-cage connection that maintains a stable fit for a smooth supply of the 24V DC operating voltage. An IP20 (ingress protection) rating means it's touch-proof and protected against objects over 12mm in size, for safe handling.
This terminal block is a reliable communication module and can transmit data up to 500kbps (kilobits per second). Quickly and easily mount this terminal block on your DIN rail to conveniently automate your machine's process.
Features & Benefits
• Safe operating temperature range of -25°C to +55°C for use in tough industrial environments
• Light 210g weight reduces strain in your cabinet
• 16 digital inputs for multiple connections at once
• Light 210g weight reduces strain in your cabinet
• 16 digital inputs for multiple connections at once
