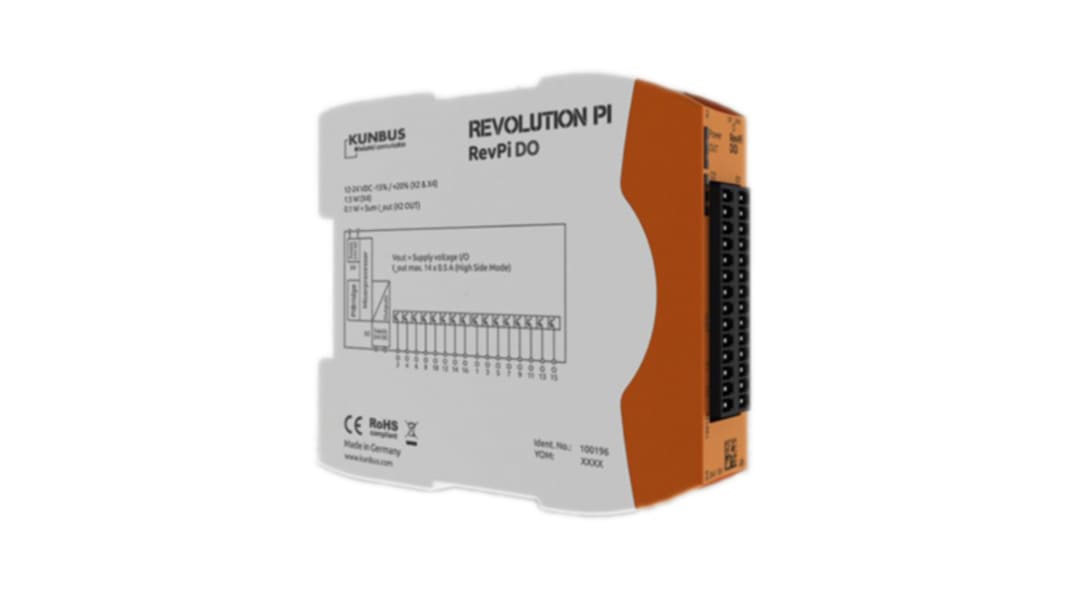

Revolution PI RevPI DO 16O Series PLC I/O Module for Use with Revolution Pi Connect, Revolution Pi Core, Digital, PWM,

View all PLC Accessories

Subtotal (1 unit)*

£159.40

(exc. VAT)

£191.28

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£159.40

*price indicative

RS Stock No.:
181-1145
Distrelec Article No.:
301-50-752
Mfr. Part No.:
PR100196
Brand:
Revolution PI
Find similar products by selecting one or more attributes.
Select all

Brand

Revolution PI

Accessory Type

PLC I/O Module

Series

RevPI DO 16O

Number of Outputs

16

Output Type

Digital, PWM

For Use With

Revolution Pi Connect, Revolution Pi Core

Supply Voltage

12 → 24 V dc

Output Current

100 mA, 500 mA

Mounting Type

DIN Rail

Maximum Operating Temperature

+55°C

Dimensions

96 x 22.5 x 110.5 mm

COO (Country of Origin):
DE

Revolution Pi DO - Powered by Raspberry Pi


The Revolution Pi DO (Digital Output) allows you to transform your base RevPi Core unit into an industrial controller. To do this, you can connect numerous digital I/O modules to it.

The RevPi DO unit is a specialist digital output only version which features 16 digital outputs. The RevPI DO is protected to EN61131-2 standards against interference and will operate between temperatures of -40°C to +55°C.

Features and benefits


• DIN rail mountable (to EN 50022) & compact in size making it perfect to mount several where space restrictions may apply.
• Polycarbonate housing material prescribed to standard EN 61131-3 (resistance to vibration/shock/damp air/high&low temperatures)
• IP20 rated (effective sealing resistant to foreign bodies such as dirt/dust)
• Built-in reverse polarity & overload protection to protect you and your surroundings in case of a fault.
• Compatible with all RevPi base modules, expansion modules & RevPi Gate modules
• DC inputs with a voltage threshold for an industry standard 24 V power supply which is compliant to EN61131-2.
• Low-pass filtering which helps prevent input signal bouncing.
• Outputs not only come through digital signal but also a pulse-width modulated PWM signal

Applications


• Automotive sector
• Energy sector
• Lighting sector
• Home automation

With this digital output module, the RevPi Core can be expanded by 16 digital outputs, thus creating the prerequisite for a small industrial controller. The expansion module is connected to the RevPi core via the top connector. The connector is included in the scope of delivery of this expansion module.
