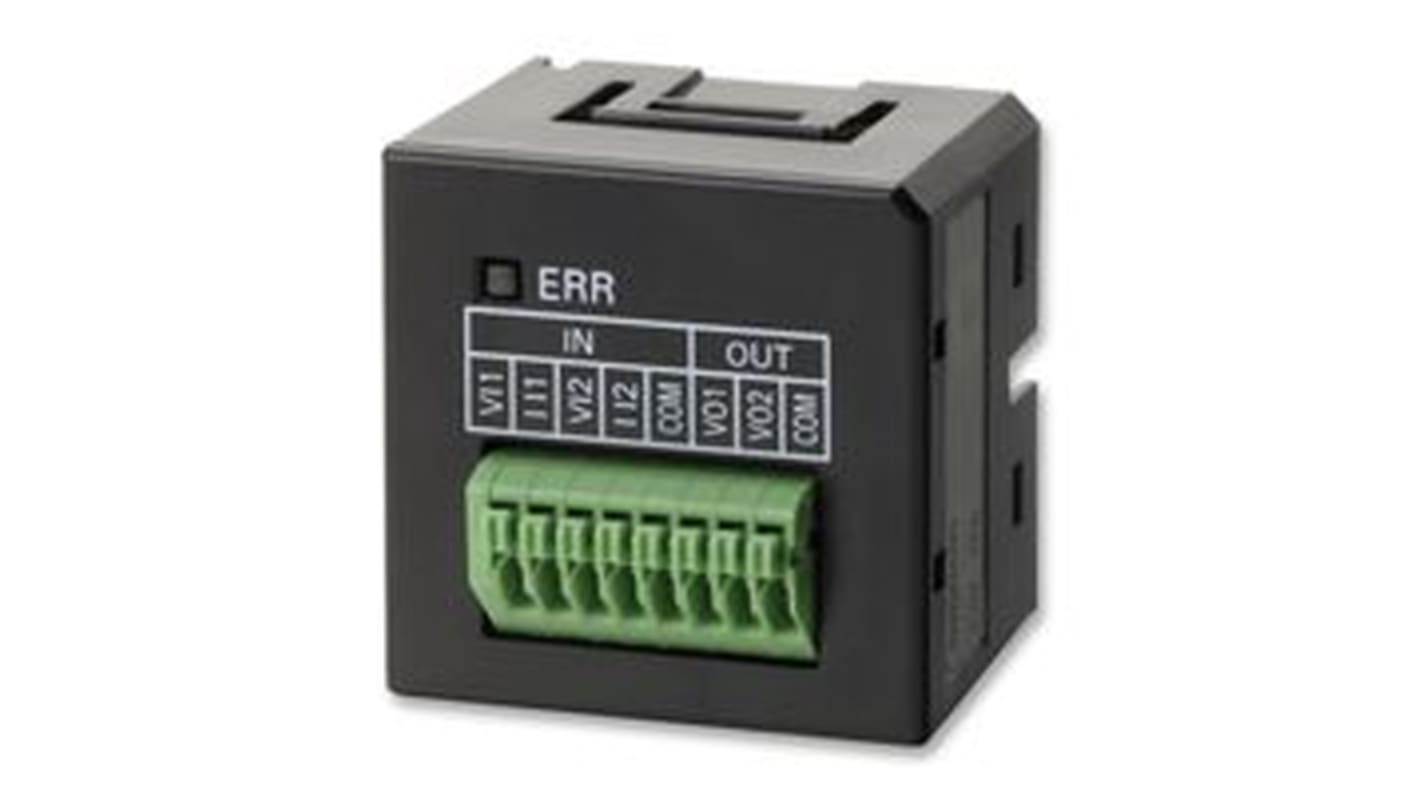

Omron Output Communication Module For Use With NX Series CPU Unit 1 Output

Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
136-2776
Mfr. Part No.:
NX1WDAB21V
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Series

NX

Output Type

Analogue

Number of Outputs

1

For Use With

NX Series CPU Unit

Mounting Type

Panel Mount

Application

Communication

Priced to Clear

Yes

Dimensions

35.9 x 28.2 x 35.9 mm

COO (Country of Origin):
CN

Sysmac Analogue I/O Option Boards


Professional range of NX series sysmac analogue I/O option boards from Omron. These screwless analogue option boards are mounted to the option board slot on the CPU unit. The option boards are designed to fit all NX series CPU units.

Features & Benefits


Connection Type - Screwless clamping terminal block (3, 5 or 8 terminals)

2 x analogue input (136-2774)

2 x analogue output (136-2776)

2 x analogue input / 2 x analogue output (136-2777)

0 to 10 V with a resolution of 1/4000

0 to 20 mA with a resolution of 1/2000

Standards

UC1, CE, RCM, KC


Omron NX Series
