RS PRO Opaque Plastic Sheet, 500mm x 300mm x 16mm
- RS Stock No.:
- 282-0418
- Brand:
- RS PRO

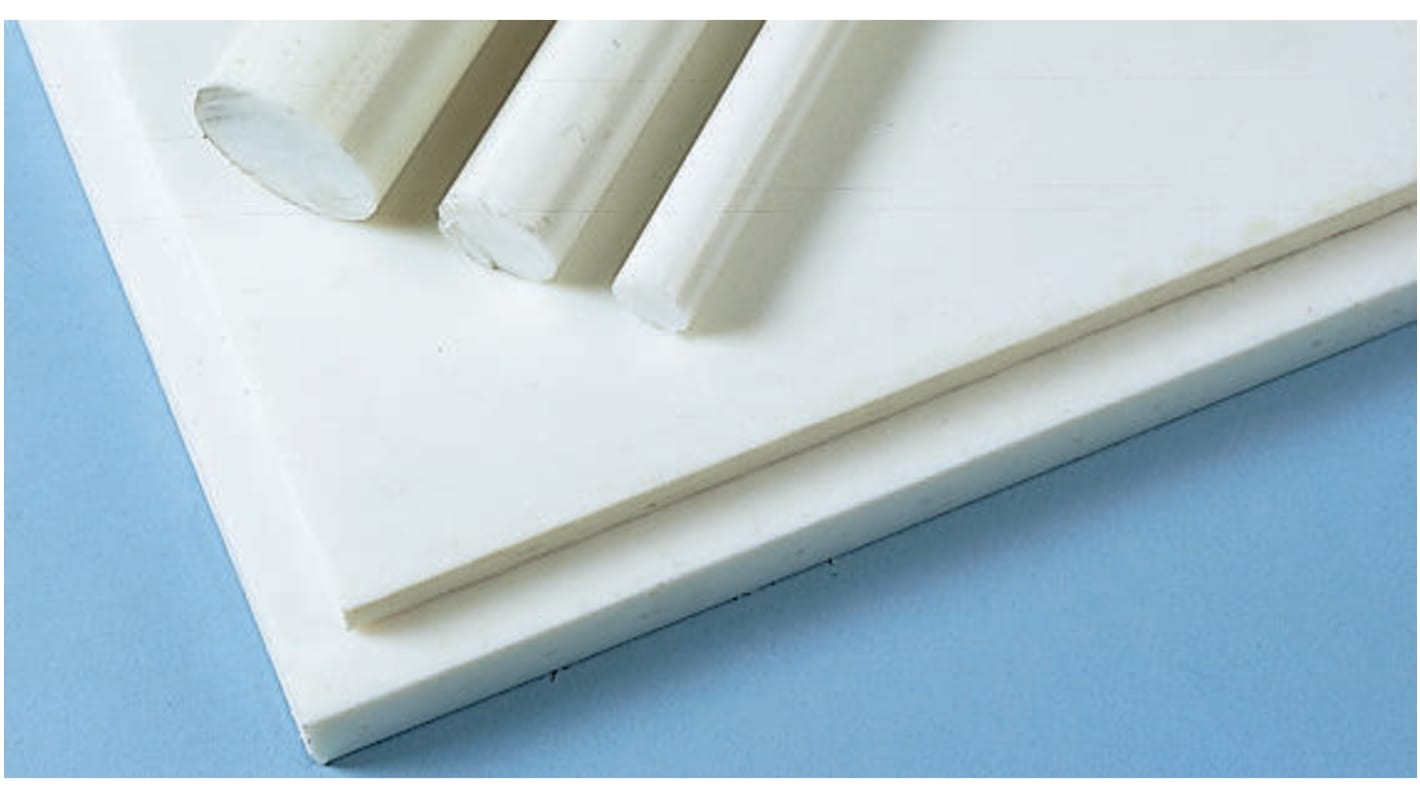

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Lot of 1
£111.83
(exc. VAT)
£134.20
(inc. VAT)
- RS Stock No.:
- 282-0418
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Opaque | |
| Length | 500mm | |
| Width | 300mm | |
| Thickness | 16mm | |
| Material | PET | |
| Tensile Strength | 88 MPa | |
| Hardness | 95 Ball Indentation | |
| Flammability Rating | UL 94 HB | |
| Water Absorption | 0.5% | |
| Thermal Conductivity | 0.24W/mK | |
| Maximum Operating Temperature | +170°C | |
| Melting Point | +255°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Opaque | ||
Length 500mm | ||
Width 300mm | ||
Thickness 16mm | ||
Material PET | ||
Tensile Strength 88 MPa | ||
Hardness 95 Ball Indentation | ||
Flammability Rating UL 94 HB | ||
Water Absorption 0.5% | ||
Thermal Conductivity 0.24W/mK | ||
Maximum Operating Temperature +170°C | ||
Melting Point +255°C | ||
- COO (Country of Origin):
- DE
Polyester (PET) - Opaque. PET Sheet : Polyethylene Terephthalate
Easily welded/bonded
Very good electrical insulation
Easily machined/polished
Not resistant long term to hot water (60°C)
High storage stiff thermoplastic
Excellent sliding properties/wear and abrasion resistant
Acid, solvent and chemical resistant
For all bearing, bush, gear, insulator applications
Opaque
Very good electrical insulation
Easily machined/polished
Not resistant long term to hot water (60°C)
High storage stiff thermoplastic
Excellent sliding properties/wear and abrasion resistant
Acid, solvent and chemical resistant
For all bearing, bush, gear, insulator applications
Opaque
Standards
DIN 50 014
