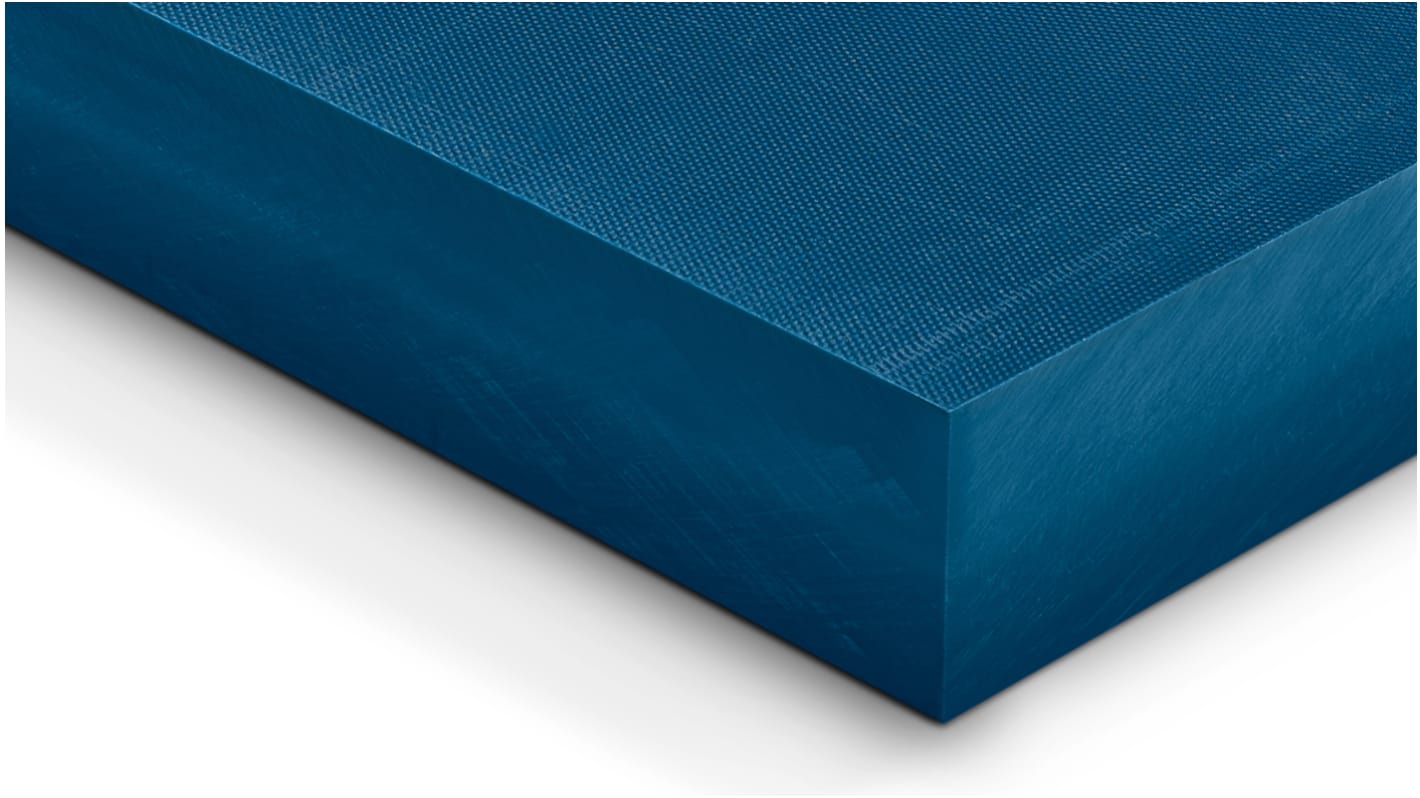

RS PRO Blue Plastic Sheet, 500mm x 300mm x 50mm
- RS Stock No.:
- 144-9740
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-9740
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Blue | |
| Length | 500mm | |
| Width | 300mm | |
| Thickness | 50mm | |
| Material | Polyacetal | |
| Density | 1.49g/cm³ | |
| Tensile Strength | 68 MPa | |
| Hardness | 174 Ball Indentation MPa | |
| Flammability Rating | UL 94 | |
| Water Absorption | 0.1% | |
| Thermal Conductivity | 0.39W/mK | |
| Maximum Operating Temperature | +140°C | |
| Polymer Type | Copolymer | |
| Melting Point | +169°C | |
| Adhesive Backing | No | |
| Impact Strength | 59kJ/m² | |
| Elongation | 10% | |
| Suitability | Industries Food Technology, Mechanical Engineering | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Blue | ||
Length 500mm | ||
Width 300mm | ||
Thickness 50mm | ||
Material Polyacetal | ||
Density 1.49g/cm³ | ||
Tensile Strength 68 MPa | ||
Hardness 174 Ball Indentation MPa | ||
Flammability Rating UL 94 | ||
Water Absorption 0.1% | ||
Thermal Conductivity 0.39W/mK | ||
Maximum Operating Temperature +140°C | ||
Polymer Type Copolymer | ||
Melting Point +169°C | ||
Adhesive Backing No | ||
Impact Strength 59kJ/m² | ||
Elongation 10% | ||
Suitability Industries Food Technology, Mechanical Engineering | ||
- COO (Country of Origin):
- DE
RS Pro Tecaform AH ID Blue Plate. POM Sheet : Polyoxymethylene
Tecaform AH ID Blue Plate is a Polyacetal sheet that is detectable by standard metal detection equipment plus is excellent for use in the food industry. The Acetal food grade material ensures high dimensional stability and machinability. The material has a high resistance to sterilisers and the low moisture absorption is ideal for a range of applications in the food industry. The blue colour is designed to help with optical detection by you or a camera reducing product contamination.
FEATURES and BENEFITS:
Tecaform AH ID Blue Plate
Polyacetal sheet
Detectable by standard metal detection equipment
Food industry use
High dimensional stability and machinability
High resistance to sterilisers, aqueous solutions (pH values from 4 to 14)
Low moisture absorption
Optical and camera detection
Reduces product contamination
Good wear and abrasion qualities
Good property retention at elevated temperatures
Colour is blue
