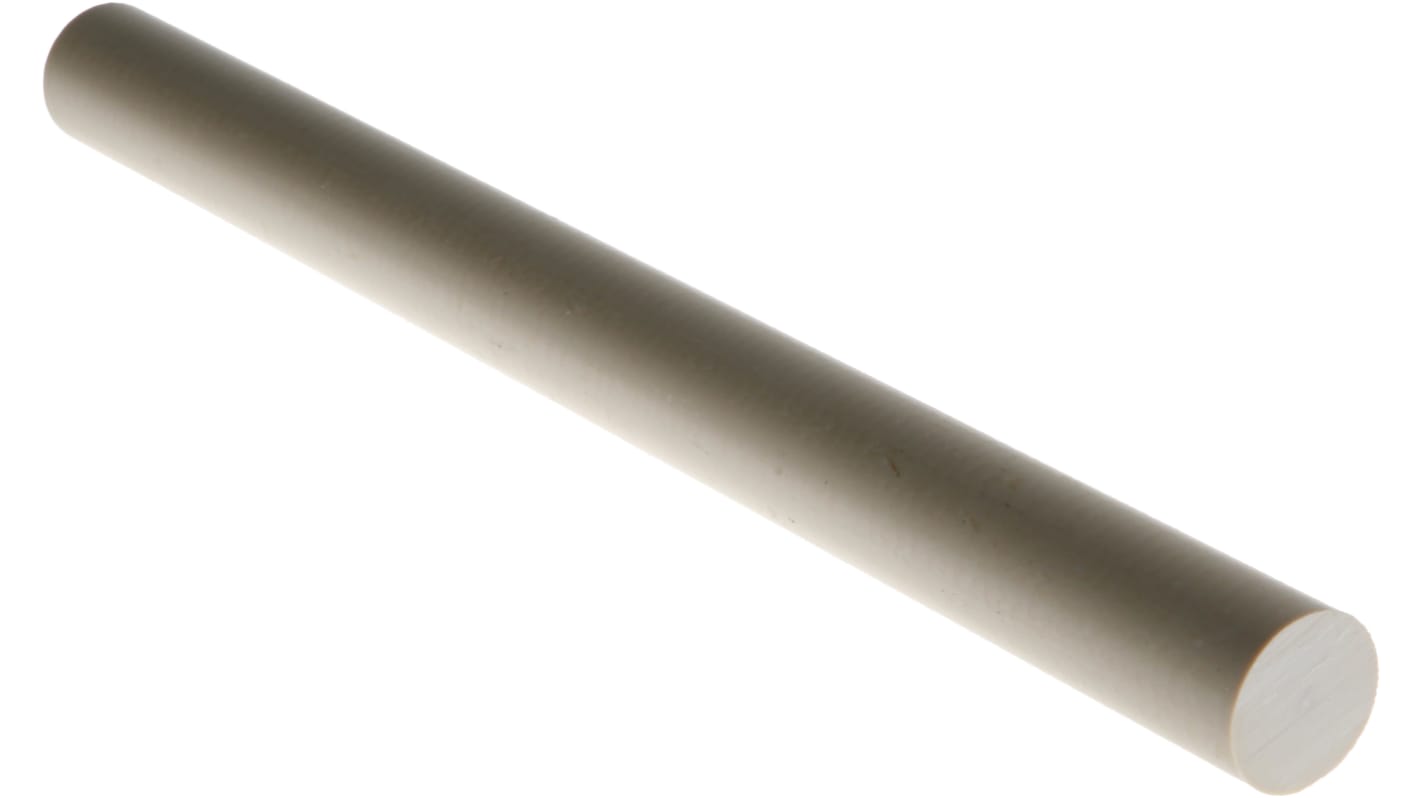

RS PRO Beige Polyetheretherketone PEEK Rod, 300mm x 25mm Diameter

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Victrex® PEEK 450G

Typical applications include valve seats in steam and water mixers, components in a high temperature diesel engine turbo actuators etc.

Continuous working temperature approx 250°C
No significant degradation in steam or high pressure water environments
Can absorb over 1000 Mrads of radiation without appreciable loss of mechanical properties
Excellent resistance to a wide range of organic and inorganic liquids, and resistant to all common solvents
Fawn in colour

Note

No. Per Lot is 1

Standards

DIN 53479; DIN 53765; DIN 53765-D-10; ASTM-D 1929

Specifications
Attribute Value
Colour Beige
Length 300mm
Material PEEK
Form Rod
Rod Diameter 25mm
Density 1.32g/cm³
Tensile Strength 95 MPa
Flammability Rating UL 94 V-0
Elongation 25%
Hardness M 99 Rockwell
Water Absorption 0.5%
Maximum Operating Temperature +260°C
36 In stock for FREE next working day delivery
Price 1 Lot of 1
£ 62.96
(exc. VAT)
£ 75.55
(inc. VAT)
Lot(s)
1 - 2
£62.96
3 - 9
£58.56
10 - 29
£55.41
30 +
£50.37
