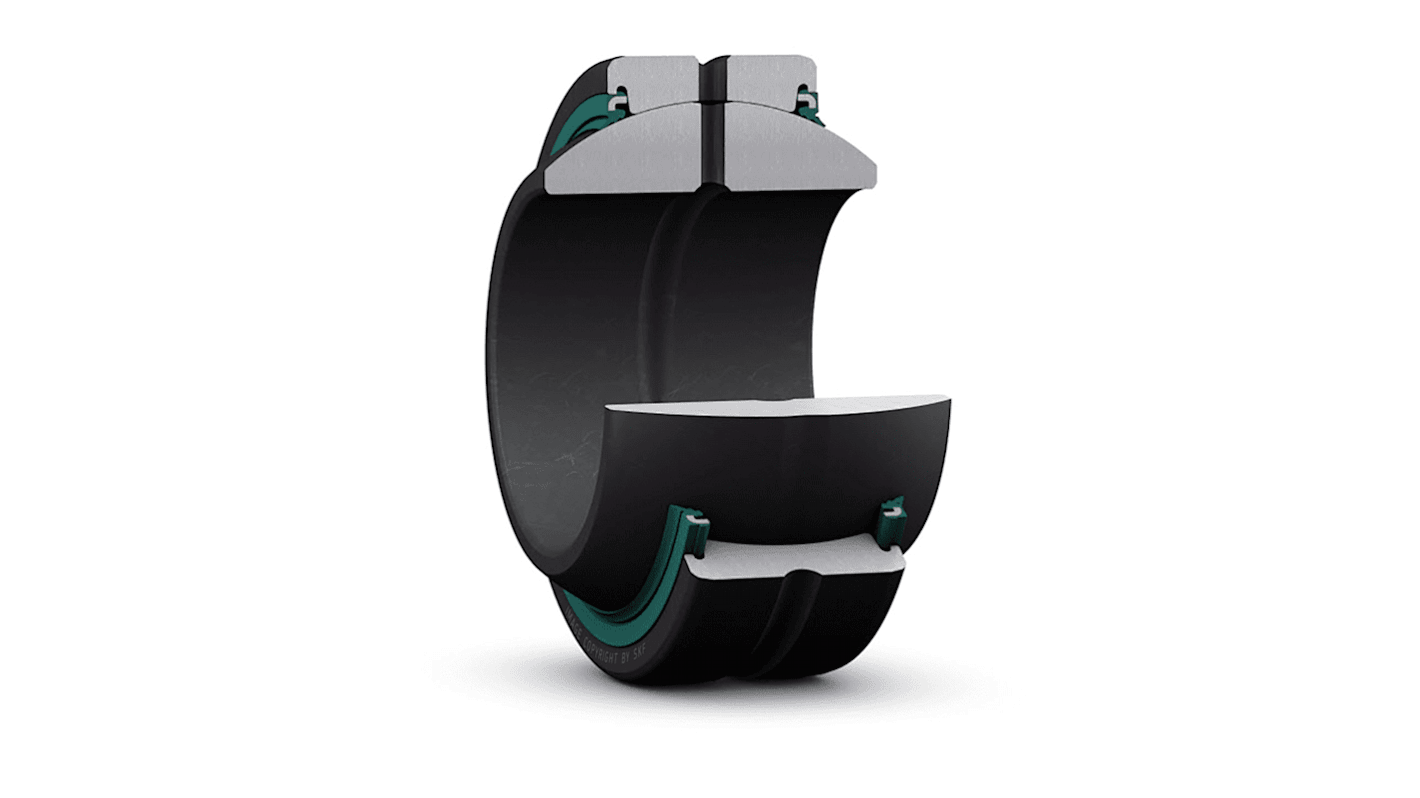

SKF GEH 80 ES-2RS 80 mm Bore Spherical Bearing, 2450 kN, 130 mm OD
- RS Stock No.:
- 217-6780
- Mfr. Part No.:
- GEH 80 ES-2RS
- Brand:
- SKF
Subtotal (1 unit)*
£388.62
(exc. VAT)
£466.34
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £388.62 |
*price indicative
- RS Stock No.:
- 217-6780
- Mfr. Part No.:
- GEH 80 ES-2RS
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Bearing | |
| Bore Size | 80mm | |
| Outside Diameter | 130mm | |
| Static Load Rating - Axial | 2450kN | |
| Material | Steel | |
| Standards/Approvals | No | |
| Width | 75mm | |
| Series | GEH | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Bearing | ||
Bore Size 80mm | ||
Outside Diameter 130mm | ||
Static Load Rating - Axial 2450kN | ||
Material Steel | ||
Standards/Approvals No | ||
Width 75mm | ||
Series GEH | ||
- COO (Country of Origin):
- DE
The SKF spherical bearings suitable for oscillating movements and that can accommodate misalignment. Rolling bearings only partly fulfil these requirements as they are generally designed for continuous rotation and can only accommodate limited misalignment. Therefore SKF manufactures spherical plain bearings, bushings and rod ends to provide an sensible solution to these challenges. SKF manufactures spherical plain bearings, bushings and rod ends in various designs and with different sliding contact surface combinations. Each combination and design has characteristic properties which makes it particularly acceptable for certain applications.
Cylindrical bore type
0° nominal contact angle
