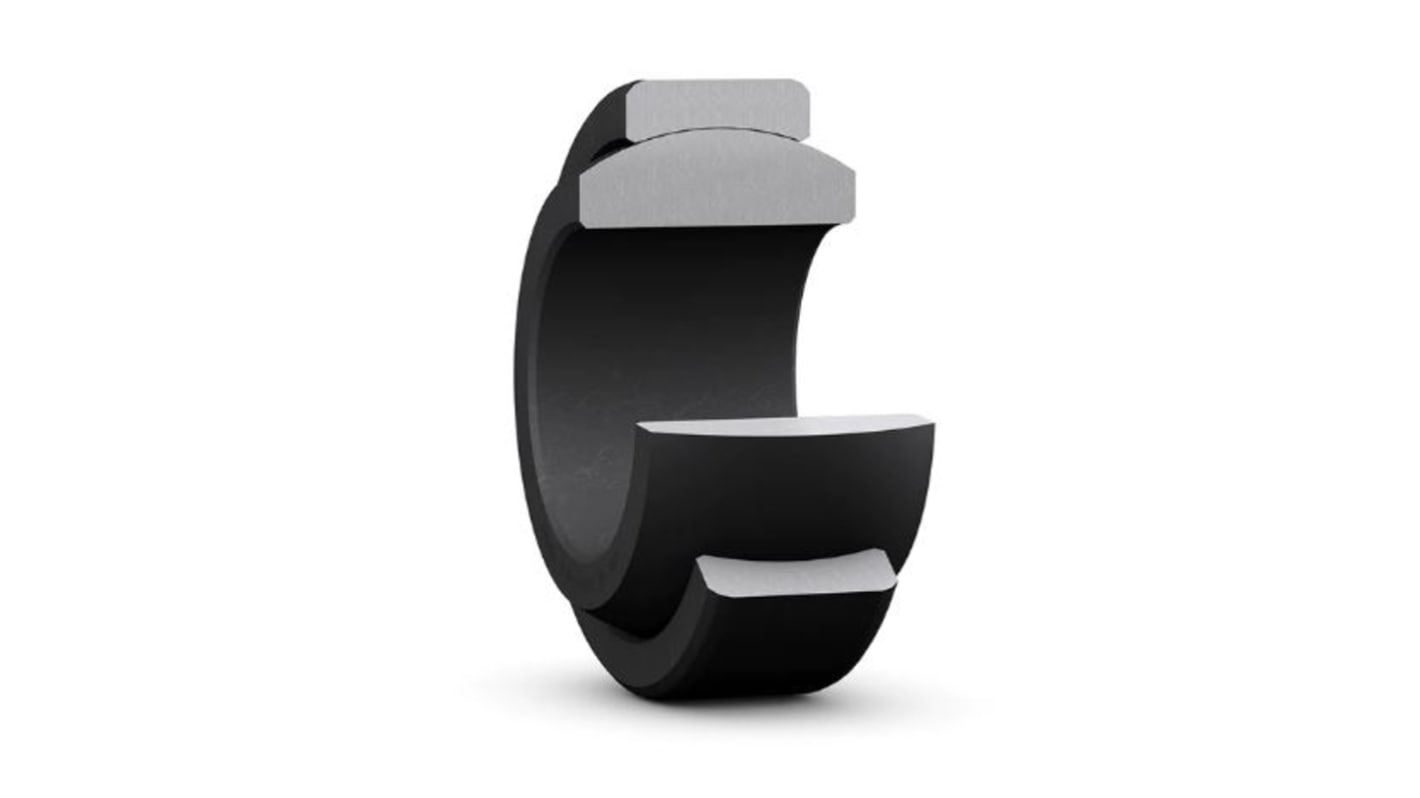

Are alignment issues grinding your machinery to a halt? Stay on track with this spherical bearing from SKF. Its spherical rings push through minor misalignment to keep your equipment running smoothly. Thanks to a dynamic load rating of 10.8kN and its static load rating of 54kN, you can trust this unit not to buckle under pressure. Support for radial and axial loads makes it a versatile choice that's well-suited for use in material handling systems. Its pre-treated steel contact surfaces help to cut down on friction, making demanding tasks less of a grind.

• Bearing steel construction for resistance to impact, corrosion and wear
• Open ends give you ease of access for relubrication, making maintenance a breeze
• Compact inside diameter of 12mm and outside diameter of 22mm for use with smaller shafts

• Engineering plants
• Bottling facilities
• Metalworking

The SKF spherical bearings suitable for oscillating movements and that can accommodate misalignment. Rolling bearings only partly fulfil these requirements as they are generally designed for continuous rotation and can only accommodate limited misalignment. Therefore SKF manufactures spherical plain bearings, bushings and rod ends to provide an sensible solution to these challenges. SKF manufactures spherical plain bearings, bushings and rod ends in various designs and with different sliding contact surface combinations. Each combination and design has characteristic properties which makes it particularly acceptable for certain applications.

Cylindrical bore type
0° nominal contact angle

This spherical bearing has a broad operating temperature range between -50°C and +200°C, so it's a safe bet for use in demanding environments.
