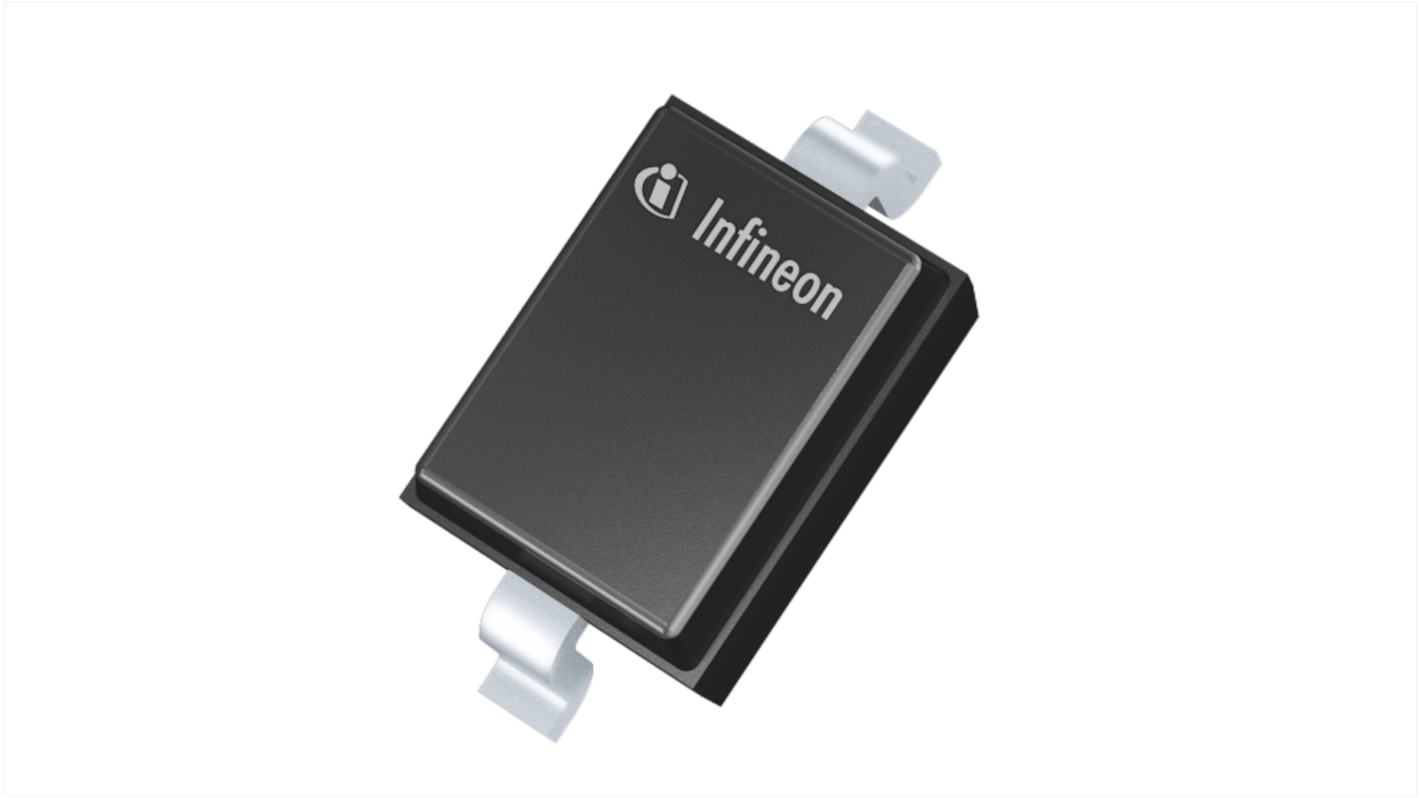

Infineon BAR6503WE6327HTSA1 Single PIN Diode, 100 mA, 30 V, 3-Pin SOT-323
- RS Stock No.:
- 273-7280
- Mfr. Part No.:
- BAR6503WE6327HTSA1
- Brand:
- Infineon
Subtotal (1 reel of 3000 units)*
£147.00
(exc. VAT)
£177.00
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 6,000 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.049 | £147.00 |
*price indicative
- RS Stock No.:
- 273-7280
- Mfr. Part No.:
- BAR6503WE6327HTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Diode Configuration | Single | |
| Product Type | PIN Diode | |
| Maximum Forward Current If | 100mA | |
| Maximum Reverse Voltage Vr | 30V | |
| Mount Type | Surface | |
| Maximum Capacitance | 0.9pF | |
| Package Type | SOT-323 | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1V | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.55mm | |
| Standards/Approvals | No | |
| Series | BAR65 | |
| Length | 1.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Diode Configuration Single | ||
Product Type PIN Diode | ||
Maximum Forward Current If 100mA | ||
Maximum Reverse Voltage Vr 30V | ||
Mount Type Surface | ||
Maximum Capacitance 0.9pF | ||
Package Type SOT-323 | ||
Pin Count 3 | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1V | ||
Maximum Operating Temperature 125°C | ||
Height 0.55mm | ||
Standards/Approvals No | ||
Series BAR65 | ||
Length 1.2mm | ||
Automotive Standard No | ||
The Infineon Silicon PIN Diode is used for mobile communication in low loss transmit receiver switches. This silicon PIN diode offers very low forward resistance and very low capacitance.
Pb free package
RoHS compliant
Band switch for TV tuners
Fast switching applications
