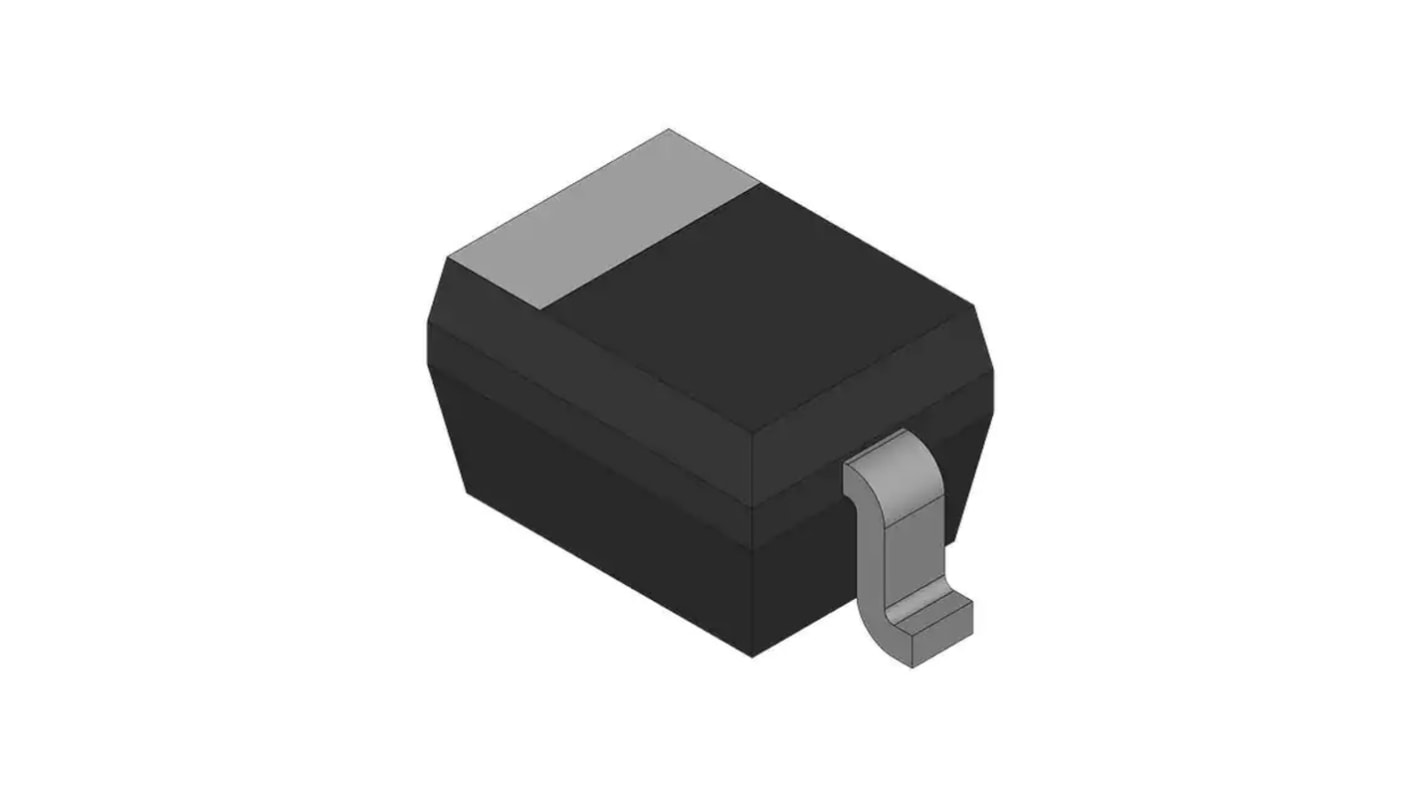

ROHM RN142VMTE-17 Single PIN Diode, 100 mA, 60 V, 2-Pin UMD
- RS Stock No.:
- 235-2772
- Mfr. Part No.:
- RN142VMTE-17
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£279.00
(exc. VAT)
£336.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.093 | £279.00 |
*price indicative
- RS Stock No.:
- 235-2772
- Mfr. Part No.:
- RN142VMTE-17
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | PIN Diode | |
| Diode Configuration | Single | |
| Maximum Forward Current If | 100mA | |
| Maximum Reverse Voltage Vr | 60V | |
| Maximum Capacitance | 0.45pF | |
| Mount Type | Surface | |
| Package Type | UMD | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1V | |
| Maximum Series Resistance @ Maximum If | 3Ω | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 1.35mm | |
| Height | 0.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type PIN Diode | ||
Diode Configuration Single | ||
Maximum Forward Current If 100mA | ||
Maximum Reverse Voltage Vr 60V | ||
Maximum Capacitance 0.45pF | ||
Mount Type Surface | ||
Package Type UMD | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1V | ||
Maximum Series Resistance @ Maximum If 3Ω | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 1.35mm | ||
Height 0.9mm | ||
Automotive Standard No | ||
The ROHM PIN diode with small mold package, suitable for high frequency switching. It has reverse voltage of 60 V.
High reliability
Low reverse voltage
Low capacitance
