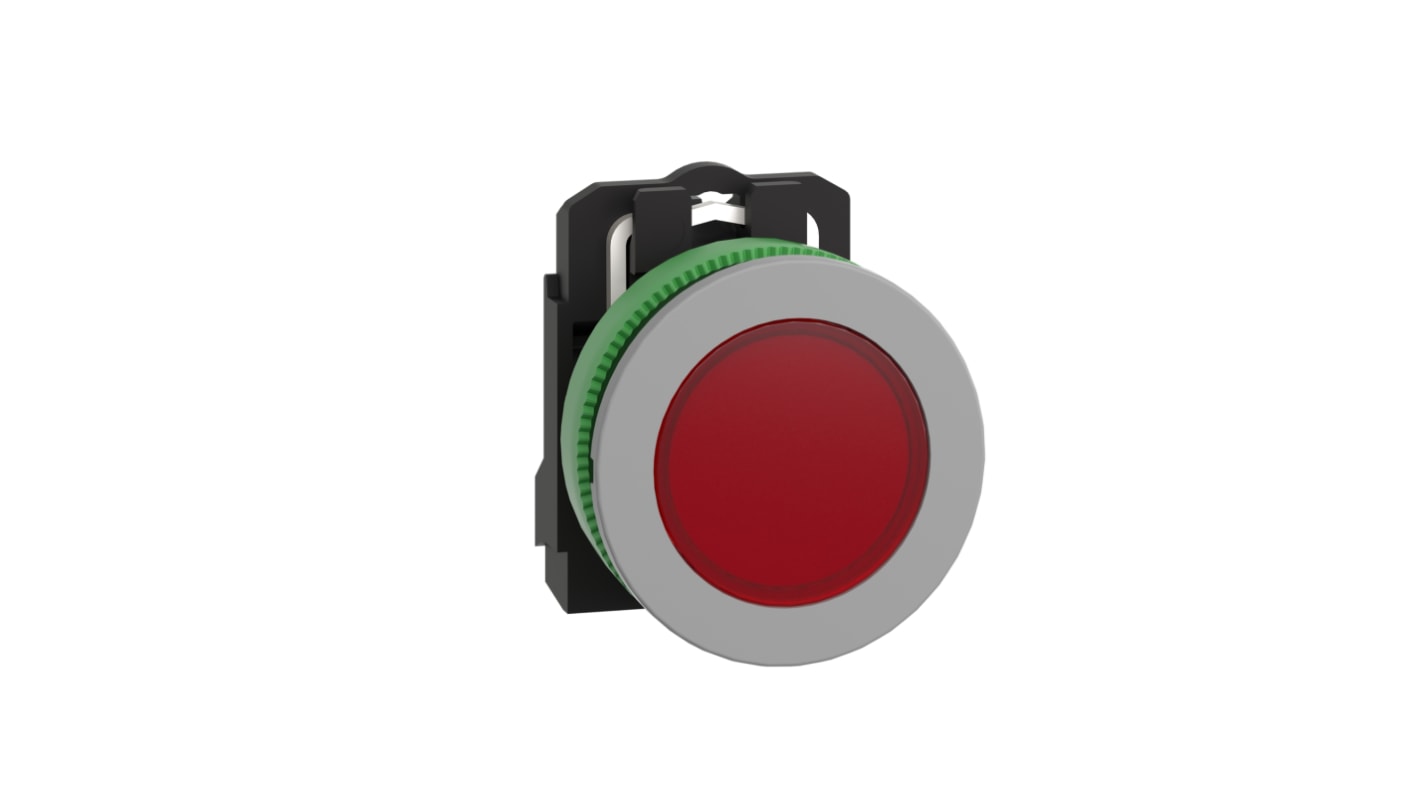

Schneider Electric, XB5F, Flush Mount Red LED Pilot Light, 30.5mm Cutout, IP66, IP67, Round, 230 → 240V
- RS Stock No.:
- 276-2697
- Mfr. Part No.:
- XB5FVM4C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£30.29
(exc. VAT)
£36.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £30.29 |
*price indicative
- RS Stock No.:
- 276-2697
- Mfr. Part No.:
- XB5FVM4C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Pilot Light Type | Pilot Light Complete Unit | |
Voltage Rating | 230 → 240V | |
Range | Harmony XB5 | |
Pilot Light Colour | Red | |
Cutout Diameter | 30.5mm | |
Series | XB5F | |
Lamp Type | LED | |
Mounting Type | Flush Mount | |
IP Rating | IP66, IP67 | |
Pilot Light Shape | Round | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Pilot Light Type Pilot Light Complete Unit | ||
Voltage Rating 230 → 240V | ||
Range Harmony XB5 | ||
Pilot Light Colour Red | ||
Cutout Diameter 30.5mm | ||
Series XB5F | ||
Lamp Type LED | ||
Mounting Type Flush Mount | ||
IP Rating IP66, IP67 | ||
Pilot Light Shape Round | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric XB5FVM4C0
This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and red. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
The Schneider Electric Pilot Light is a distinctive indicator designed for various control and signalling applications. With a red flush mounted design and a grey bezel, this 30mm pilot light is equipped with a universal LED and a plain lens, ensuring clear and visible signalling. Operating within a voltage range of 230 to 240V, it is suitable for electrical systems in that voltage specification. The flush mounted style enhances the aesthetics and integration into control panels or equipment. The red color provides a clear visual indication, and the universal LED allows for versatile use with different types of light sources.
Mercury free
RoHS compliant
IP66 degree of protection
IP67 degree of protection
Shock and vibration resistance
RoHS compliant
IP66 degree of protection
IP67 degree of protection
Shock and vibration resistance
