RS PRO Illuminated Piezo Switch, Momentary, NO, IP69 Pre-Wired, 0.2A, 70 °C, -20 °C White

RS Stock No.:: 309-318
Brand:: RS PRO

RS PRO Illuminated Piezo Switch, Momentary, NO, IP69 Pre-Wired, 0.2A, 70 °C, -20 °C White

Subtotal (1 unit)*

£79.57

(exc. VAT)

£95.48

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 250 unit(s) shipping from 27 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£79.57

*price indicative

RS Stock No.:: 309-318
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Switch Operation	Momentary
	Product Type	Piezo Switch
	Illuminated	Yes
	LED Colour	Red, Green, White, Blue
	Terminal Type	Pre-Wired
	Contact Configuration	NO
	Panel Cutout Size	22.5 mm
	Switch Contact Current	0.2A
	IP Rating	IP69
	Actuator Colour	White
	Contact AC Voltage	24V ac
	Contact DC Voltage	24V dc
	Series	RS PRO
	Standards/Approvals	No
	Hazardous Area Certification	No
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C

	Select all
	Brand RS PRO
	Switch Operation Momentary
	Product Type Piezo Switch
	Illuminated Yes
	LED Colour Red, Green, White, Blue
	Terminal Type Pre-Wired
	Contact Configuration NO
	Panel Cutout Size 22.5 mm
	Switch Contact Current 0.2A
	IP Rating IP69
	Actuator Colour White
	Contact AC Voltage 24V ac
	Contact DC Voltage 24V dc
	Series RS PRO
	Standards/Approvals No
	Hazardous Area Certification No
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C

COO (Country of Origin):: IL

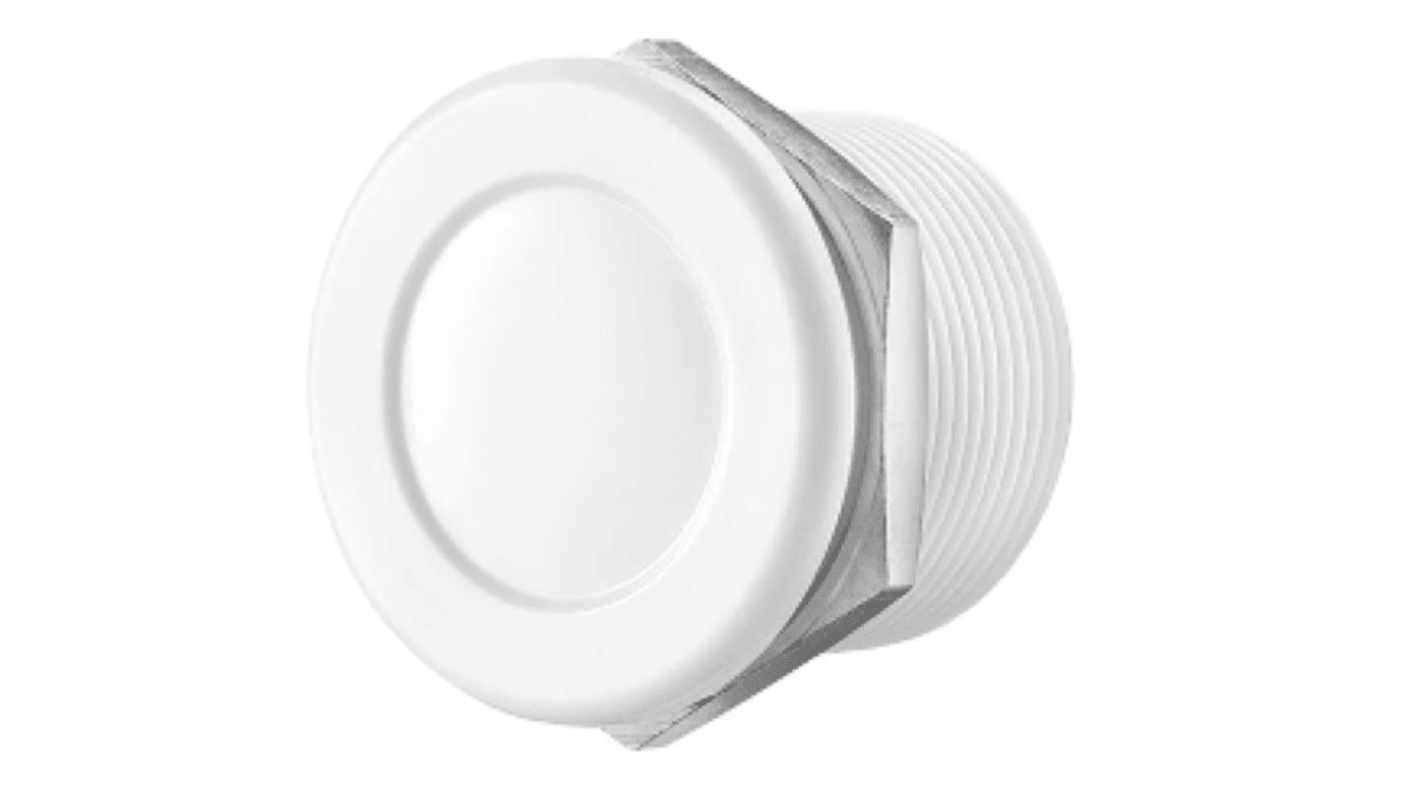

RS PRO Illuminated Plastic Piezo Button, IP69 Rating

The RS PRO Illuminated Plastic Piezo Button is designed to provide a robust and reliable solution for human-machine interface (HMI) challenges in harsh environments. With its white POM housing and polycarbonate LED illuminated ring, this piezo switch is ideal for high-use, high-abuse areas, offering resistance to snow, rain, ice, dirt, and extreme temperatures.

Features and Benefits

IP69 rating ensures complete protection against dust and water ingress, making it suitable for submersible applications

200cm flexible cable provides ease of installation and connectivity

Completely submersible design enhances durability in challenging conditions

N.O. momentary switch operation offers reliable performance in various applications

Applications

This piezo switch is commonly used in industrial control panels, outdoor kiosks, and public access systems where durability and reliability are critical.

Additional Information

The switch features a pre-wired terminal type and is illuminated with blue, green, and red LED colours, enhancing visibility and user interaction.
