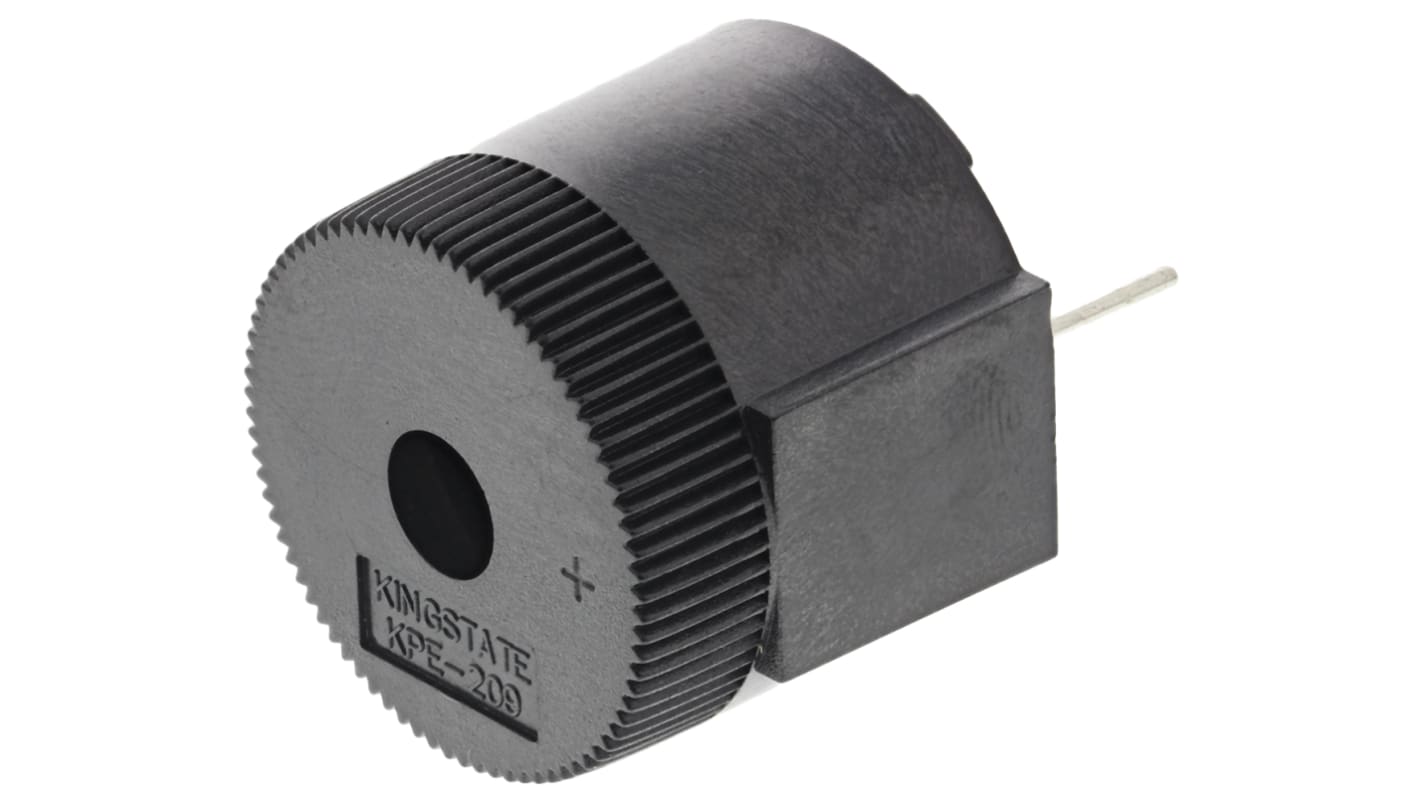

RS PRO 91 dB Through Hole Continuous Internal 22.8 mm Piezo Buzzer Component 9 V dc Min 12 V dc Max
- RS Stock No.:
- 771-6894
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.84
(exc. VAT)
£8.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 477 unit(s) shipping from 20 April 2026
- Plus 5 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.84 |
| 10 - 24 | £6.57 |
| 25 - 49 | £6.22 |
| 50 - 99 | £5.88 |
| 100 + | £5.40 |
*price indicative
- RS Stock No.:
- 771-6894
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Through Hole | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 9V dc | |
| Maximum Supply Voltage | 12V dc | |
| Sound Level | 91dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Height | 22.8mm | |
| Termination Style | Pin | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 3.4kHz | |
| Minimum Frequency | 2400Hz | |
| Supply Current | 35mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Through Hole | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 9V dc | ||
Maximum Supply Voltage 12V dc | ||
Sound Level 91dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Height 22.8mm | ||
Termination Style Pin | ||
Standards/Approvals RoHS | ||
Maximum Frequency 3.4kHz | ||
Minimum Frequency 2400Hz | ||
Supply Current 35mA | ||
Non Compliant
- COO (Country of Origin):
- CN
Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
