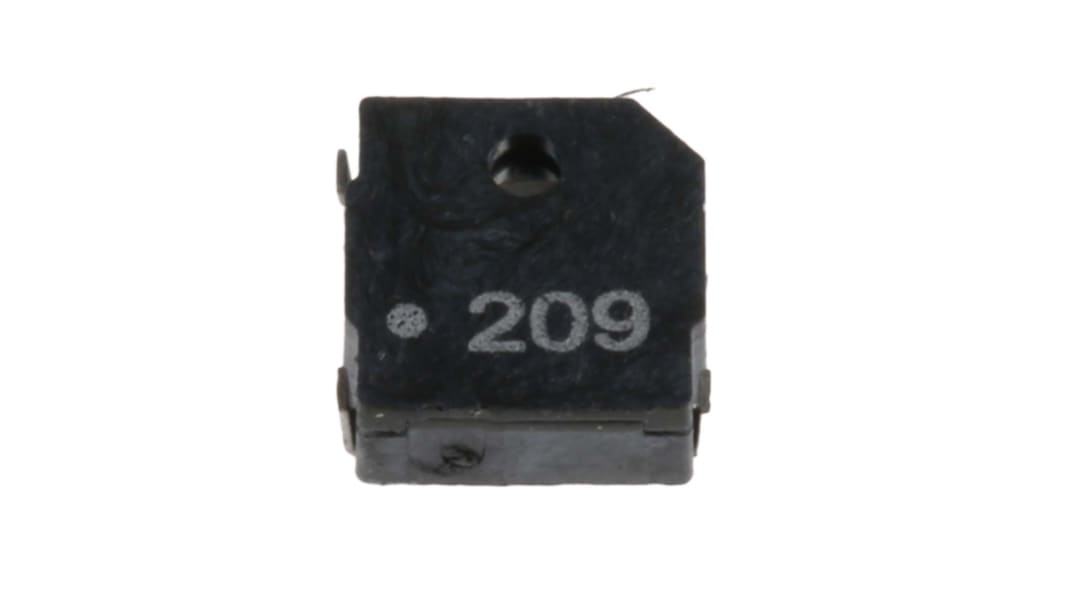

RS PRO 75 dB Surface Mount High External Magnetic Buzzer Component 1.9 mm 2 V Min 5 mm 5mm 4V Max
- RS Stock No.:
- 754-2043
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£13.01
(exc. VAT)
£15.61
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 170 unit(s) ready to ship
- Plus 6,160 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 20 | £2.602 | £13.01 |
| 25 - 45 | £2.498 | £12.49 |
| 50 - 95 | £2.316 | £11.58 |
| 100 - 245 | £2.132 | £10.66 |
| 250 + | £1.952 | £9.76 |
*price indicative
- RS Stock No.:
- 754-2043
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Magnetic Buzzer Component | |
| Mount Type | Surface Mount | |
| Minimum Supply Voltage | 2V | |
| Maximum Supply Voltage | 4V | |
| Sound Level | 75dB | |
| Drive Type | External | |
| Tone Type | High | |
| Maximum Operating Temperature | 70°C | |
| Width | 5mm | |
| Height | 1.9mm | |
| Length | 5mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 4kHz | |
| Minimum Frequency | 4kHz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Magnetic Buzzer Component | ||
Mount Type Surface Mount | ||
Minimum Supply Voltage 2V | ||
Maximum Supply Voltage 4V | ||
Sound Level 75dB | ||
Drive Type External | ||
Tone Type High | ||
Maximum Operating Temperature 70°C | ||
Width 5mm | ||
Height 1.9mm | ||
Length 5mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 4kHz | ||
Minimum Frequency 4kHz | ||
Non Compliant
- COO (Country of Origin):
- TW
Square SMT magnetic transducers
Square cased SMT magnetic transducers
High sound output
Requires external drive circuits to operate
