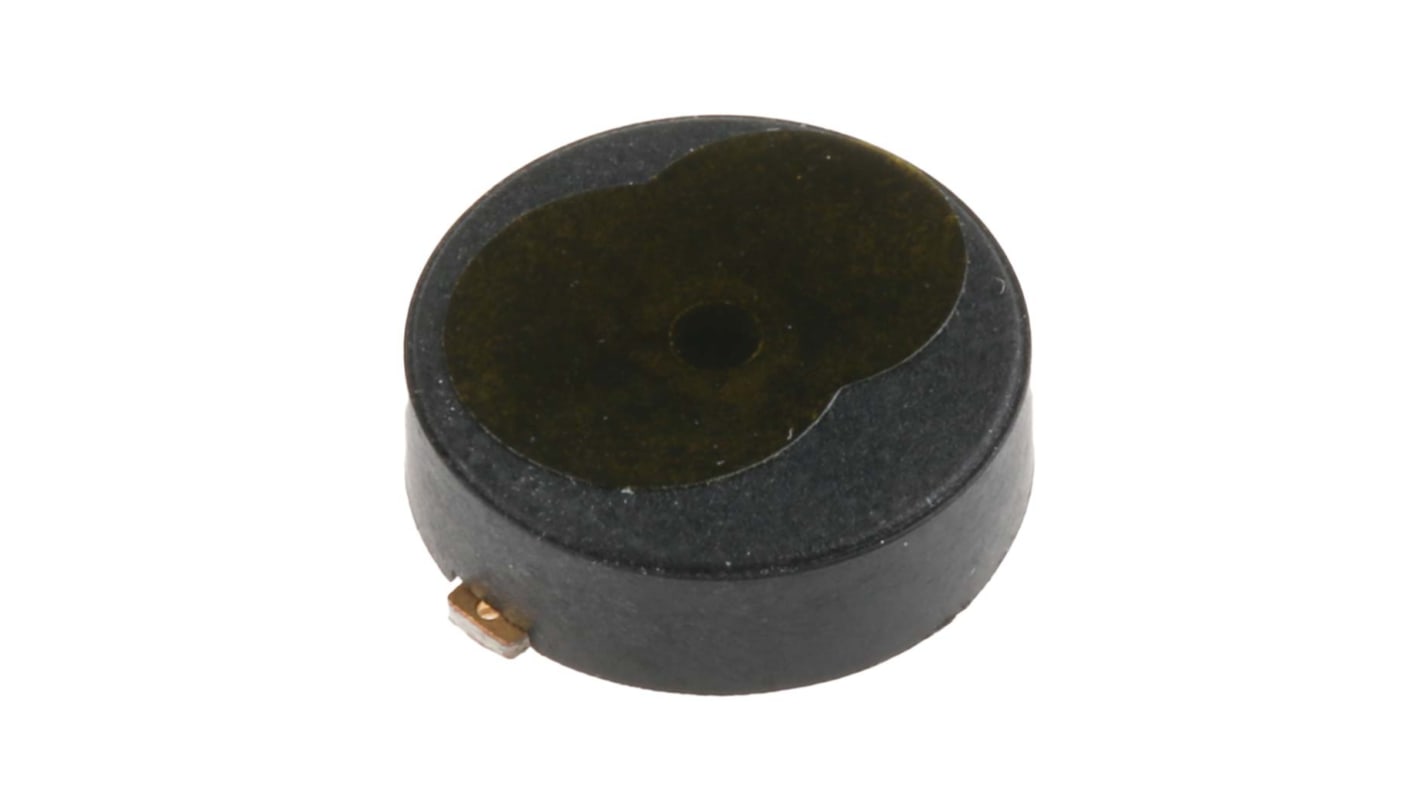

RS PRO 75dB SMD Square Wave External Piezo Buzzer, 10 (Dia.) x 3.1mm, 5V ac Min, 25V ac Max
- RS Stock No.:
- 754-1977
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£3.82
(exc. VAT)
£4.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 317 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 923 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.82 |
10 - 24 | £3.65 |
25 - 49 | £3.49 |
50 - 99 | £3.27 |
100 + | £3.03 |
*price indicative
- RS Stock No.:
- 754-1977
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Mounting Type | Surface Mount | |
Minimum Supply Voltage | 5V ac | |
Maximum Supply Voltage | 25V ac | |
Sound Level | 75dB | |
Drive Type | External | |
Tone Type | Square Wave | |
Diameter | 10mm | |
Height | 3.1mm | |
Dimensions | 10 (Dia.) x 3.1mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +70°C | |
Maximum Frequency | 5.2kHz | |
Supply Current | 5mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Mounting Type Surface Mount | ||
Minimum Supply Voltage 5V ac | ||
Maximum Supply Voltage 25V ac | ||
Sound Level 75dB | ||
Drive Type External | ||
Tone Type Square Wave | ||
Diameter 10mm | ||
Height 3.1mm | ||
Dimensions 10 (Dia.) x 3.1mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 5.2kHz | ||
Supply Current 5mA | ||
Non Compliant
- COO (Country of Origin):
- TW
RS PRO 75dB, SMD Square Wave External Piezo Buzzer
Looking for a small and versatile sounder? These high-quality piezo buzzers from the RS PRO series combine a broad voltage range with low power consumption and a clear sound, all in a space-saving design.
They draw a 5 mA supply current and can function between 5 V AC to 25 V AC. This means they use less energy and are compatible with most consumer goods. They emit a 75 dB square-wave tone that's rich and clearly audible. The units themselves are ultra-compact, measuring just 10 mm in diameter – around half the size of a five pence coin. As these buzzers are surface-mounted, installation is straightforward.
Our piezo buzzer components meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning they've been shielded from damaging electrostatic discharges. You'll find them used in everything from computers to alarm clocks.
They draw a 5 mA supply current and can function between 5 V AC to 25 V AC. This means they use less energy and are compatible with most consumer goods. They emit a 75 dB square-wave tone that's rich and clearly audible. The units themselves are ultra-compact, measuring just 10 mm in diameter – around half the size of a five pence coin. As these buzzers are surface-mounted, installation is straightforward.
Our piezo buzzer components meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning they've been shielded from damaging electrostatic discharges. You'll find them used in everything from computers to alarm clocks.
Features and Benefits
• Surface mounting
• Supply voltage range of 5 V AC to 25 V AC
• 75 dB sound level
• External drive
• Diameter of 10 mm
• Height of 3.1 mm
• Operating temperature range of -20°C to +70°C
• Supply current of 5 mA
• Maximum frequency of 5.2 kHz
• Supply voltage range of 5 V AC to 25 V AC
• 75 dB sound level
• External drive
• Diameter of 10 mm
• Height of 3.1 mm
• Operating temperature range of -20°C to +70°C
• Supply current of 5 mA
• Maximum frequency of 5.2 kHz
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
