RS PRO 100 dB Panel Mount Continuous Internal 37.5 mm Buzzer 70 mm 3 V dc Min 16V dc Max
- RS Stock No.:
- 622-1540
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.85
(exc. VAT)
£11.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
- Plus 280 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.85 |
| 10 - 24 | £9.46 |
| 25 - 49 | £8.96 |
| 50 - 99 | £8.47 |
| 100 + | £7.79 |
*price indicative
- RS Stock No.:
- 622-1540
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Buzzer | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 16V dc | |
| Sound Level | 100dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 50mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 37.5mm | |
| Length | 70mm | |
| Height | 37.5mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 3kHz | |
| Minimum Frequency | 2000Hz | |
| Supply Current | 58mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Buzzer | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 16V dc | ||
Sound Level 100dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 50mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Depth 37.5mm | ||
Length 70mm | ||
Height 37.5mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 3kHz | ||
Minimum Frequency 2000Hz | ||
Supply Current 58mA | ||
Non Compliant
- COO (Country of Origin):
- TW

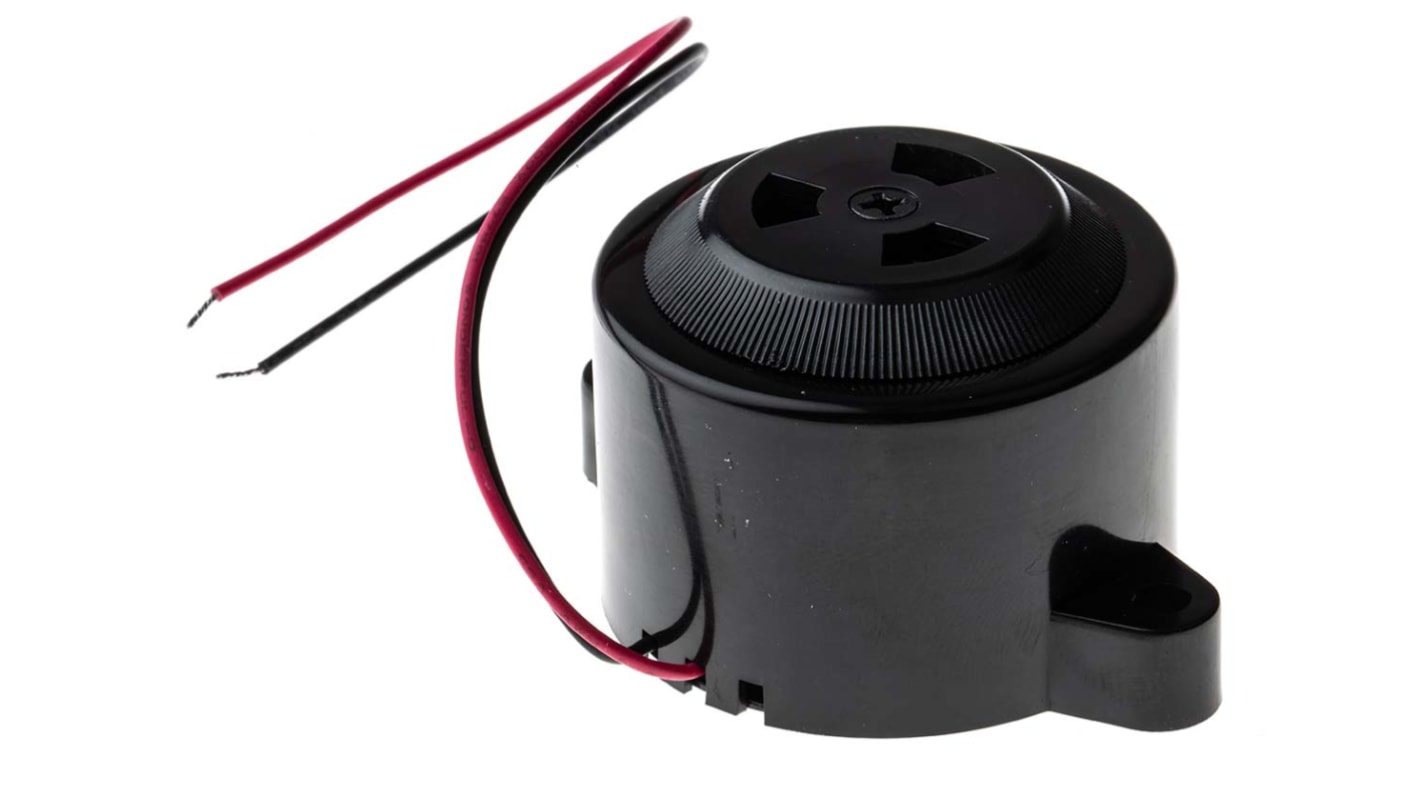

RS PRO 100 dB, Panel Mount Continuous Internal Buzzer
Mount this RS PRO buzzer to a panel for up to 100 dB of continuous sound. For convenient use, its internal circuitry means it doesn't require an external circuit to operate.
The buzzer has an ABS (acrylonitrile butadiene styrene) cone, so it's Durable enough to withstand use in demanding industrial environments. Its broad operating temperature range of -30°C to +80°C makes it a good choice for use in applications where exposure to extreme temperatures is likely.
You'll commonly find this type of buzzer used in a variety of home and business settings, including garden lawns, farmyards and automotive production facilities. Its Compact dimensions make it a good choice for use in areas where space is limited.
Features and Benefits
