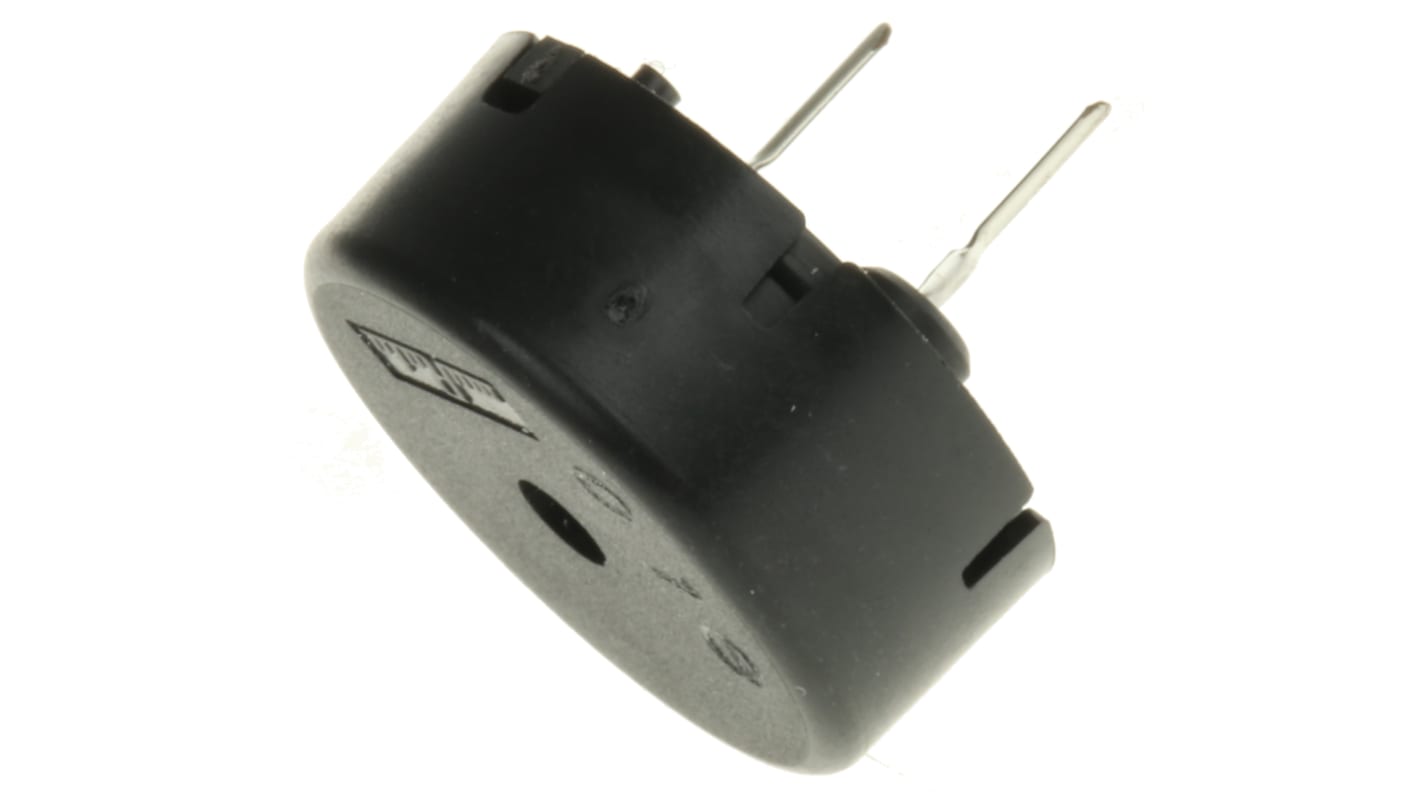

Murata 72dB Through Hole Continuous External Piezo Buzzer, 17 x 7mm, 25V Max
- RS Stock No.:
- 516-8246
- Mfr. Part No.:
- PKM17EPPH4001-B0
- Brand:
- Murata
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 516-8246
- Mfr. Part No.:
- PKM17EPPH4001-B0
- Brand:
- Murata
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Mounting Type | Through Hole | |
| Maximum Supply Voltage | 25V | |
| Sound Level | 72dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Diameter | 17mm | |
| Height | 7mm | |
| Dimensions | 17 x 7mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 4kHz | |
| Capacitance | 7nF | |
Select all | ||
|---|---|---|
Brand Murata | ||
Mounting Type Through Hole | ||
Maximum Supply Voltage 25V | ||
Sound Level 72dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Diameter 17mm | ||
Height 7mm | ||
Dimensions 17 x 7mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 4kHz | ||
Capacitance 7nF | ||
