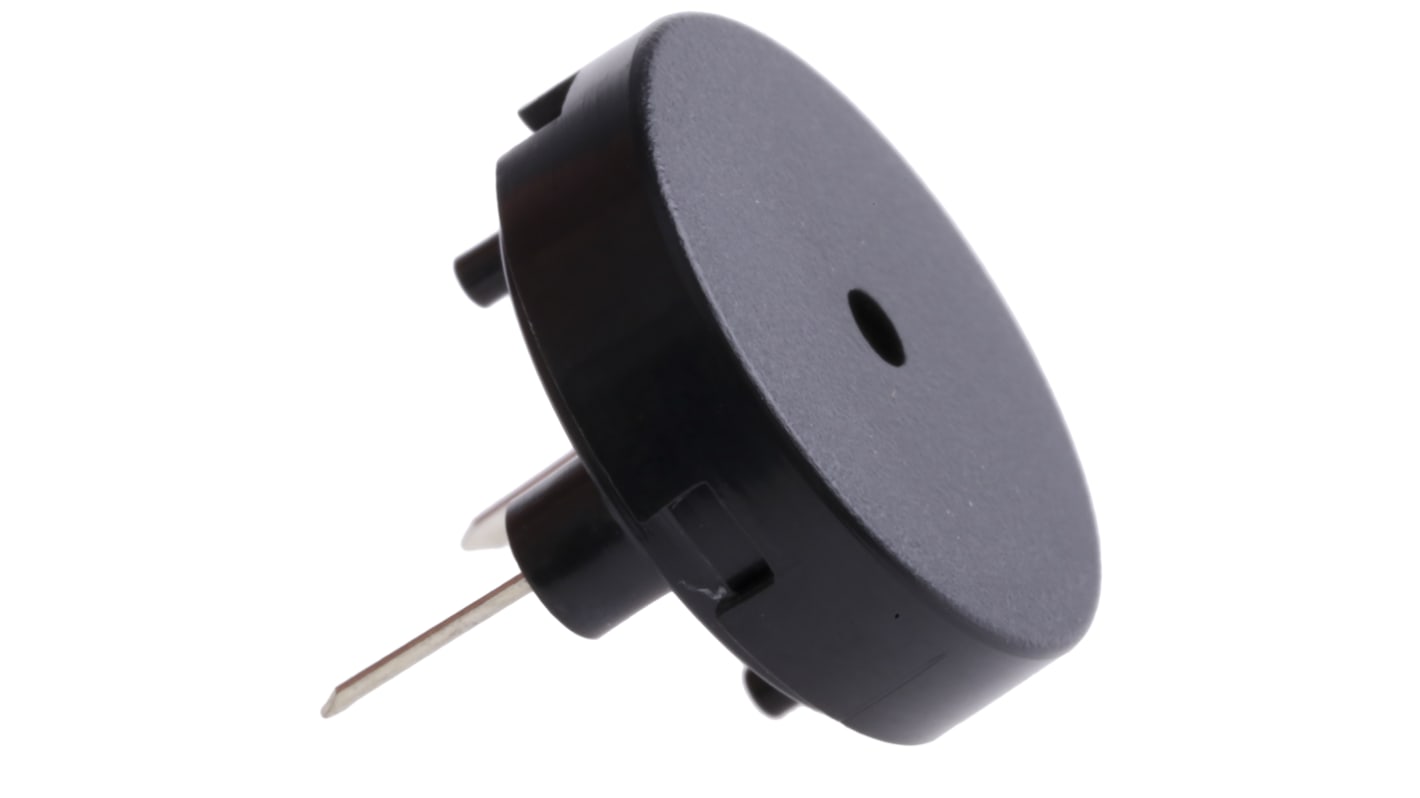

RS PRO 84dB Through Hole Continuous External Piezo Buzzer, 16.5 (Dia.) x 7mm, 30V ac Max
- RS Stock No.:
- 237-990
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 237-990
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Through Hole | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 84dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Diameter | 16.5mm | |
| Height | 7mm | |
| Dimensions | 16.5 (Dia.) x 7mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Maximum Frequency | 5kHz | |
| Supply Current | 9mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Through Hole | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 84dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Diameter 16.5mm | ||
Height 7mm | ||
Dimensions 16.5 (Dia.) x 7mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Maximum Frequency 5kHz | ||
Supply Current 9mA | ||
- COO (Country of Origin):
- TW
