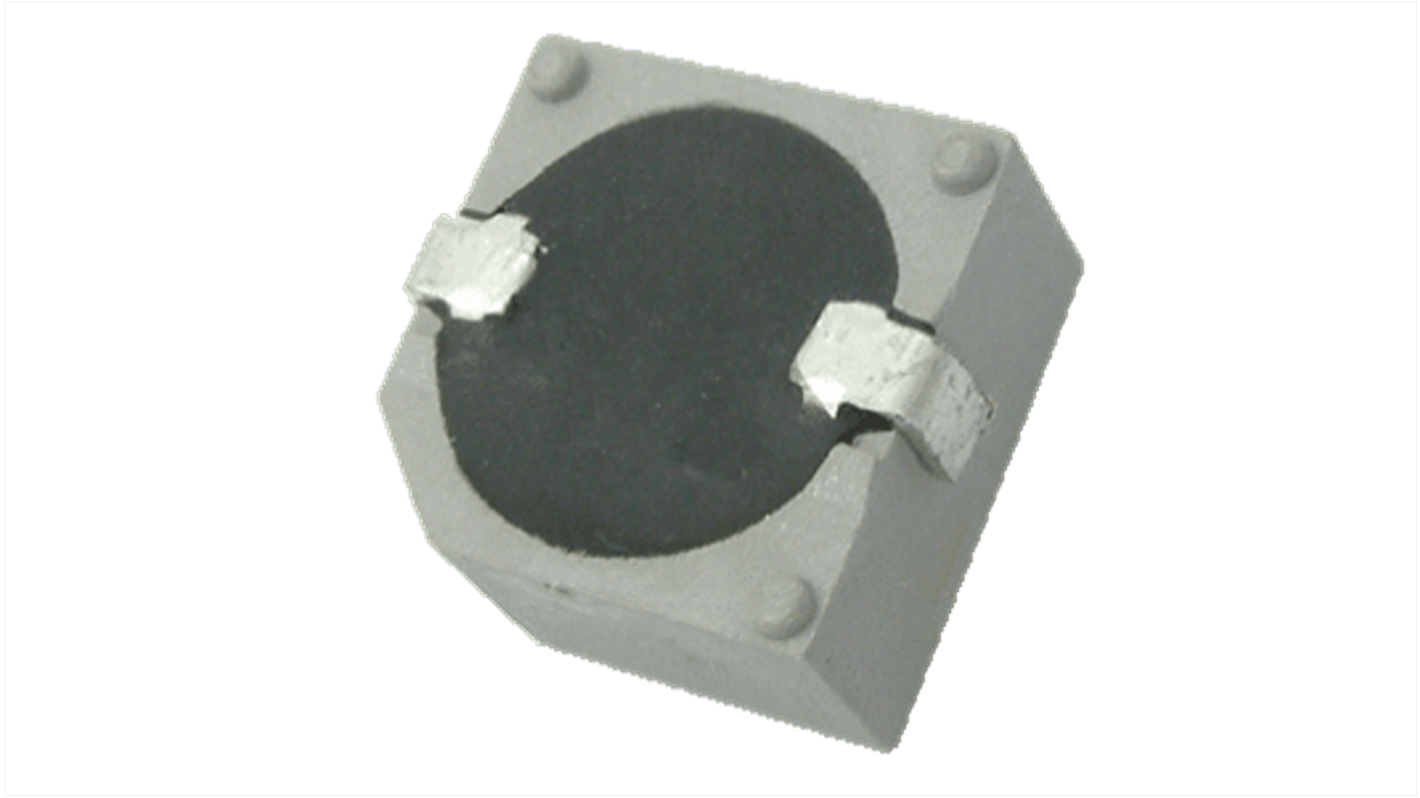

Same Sky 88 dB Surface Mount Buzzer Internal Magnetic Buzzer 7.1 mm 4 V dc Min 12.8 mm 7 V dc Max
- RS Stock No.:
- 259-6318
- Mfr. Part No.:
- CT-1205CL-SMT-TR
- Brand:
- Same Sky
Bulk discount available
Subtotal (1 reel of 450 units)*
£612.45
(exc. VAT)
£734.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 450 - 450 | £1.361 | £612.45 |
| 900 - 900 | £1.324 | £595.80 |
| 1350 + | £1.292 | £581.40 |
*price indicative
- RS Stock No.:
- 259-6318
- Mfr. Part No.:
- CT-1205CL-SMT-TR
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Surface Mount | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 4V dc | |
| Maximum Supply Voltage | 7V dc | |
| Sound Level | 88dB | |
| Drive Type | Internal | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 70°C | |
| Height | 7.1mm | |
| Length | 12.8mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 2550Hz | |
| Minimum Frequency | 2250Hz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Surface Mount | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 4V dc | ||
Maximum Supply Voltage 7V dc | ||
Sound Level 88dB | ||
Drive Type Internal | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 70°C | ||
Height 7.1mm | ||
Length 12.8mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 2550Hz | ||
Minimum Frequency 2250Hz | ||
The CUI devices piezo buzzers with a mounting type of surface mount and having a sound pressure level of 88 dB. It consist of a voltage rating of 5 V and an internal drive type.
Storage temperature of -40°C - 85°C
Made up of PPS material
