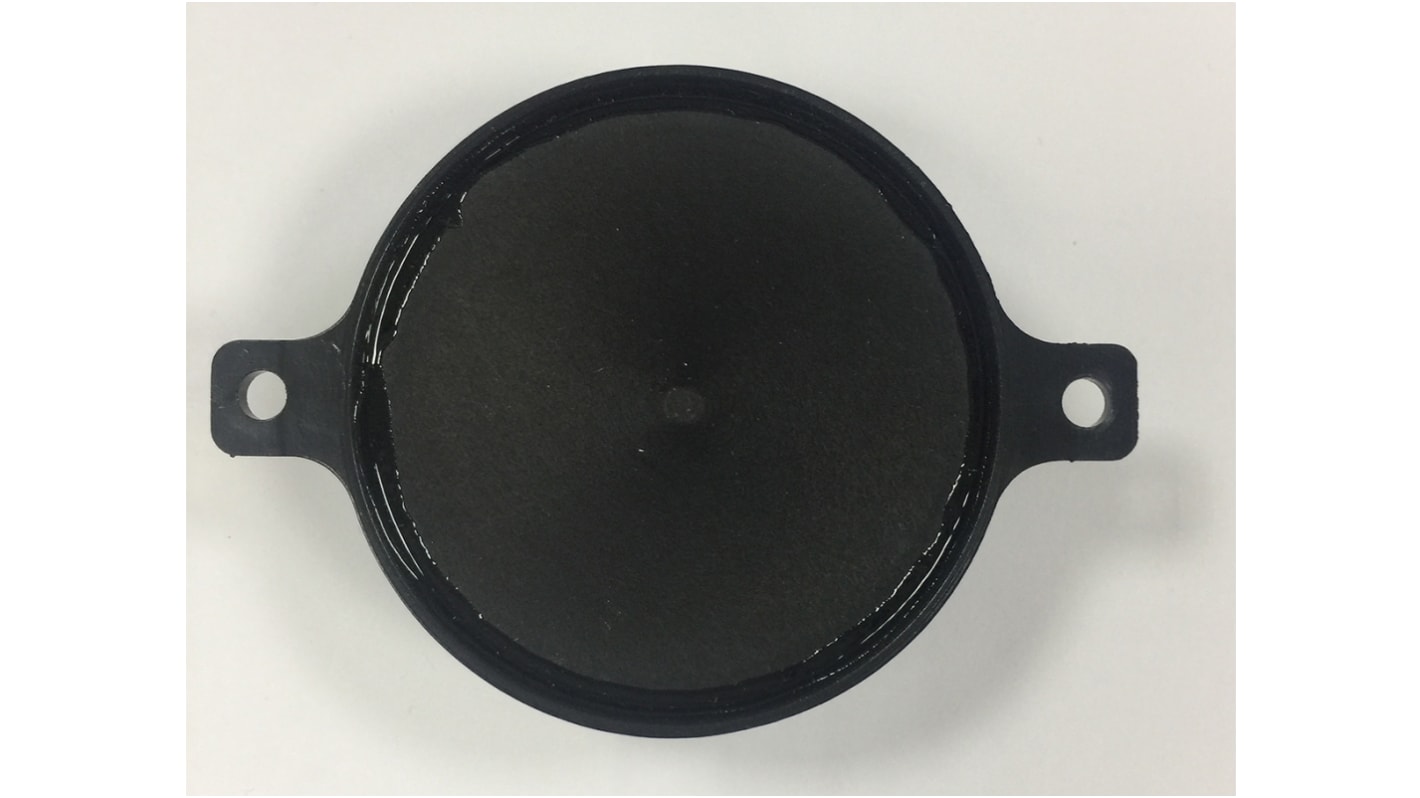

RS PRO 86dB Flange Mount Continuous, Intermittent Piezo Buzzer, 62 x 69.8 x 18.6mm, 12 (Continuous) Vrms, 35
- RS Stock No.:
- 181-2702
- Brand:
- RS PRO
400 In stock - FREE next working day delivery available
Added
Price Each (In a Box of 400)
£1.417
(exc. VAT)
£1.70
(inc. VAT)
| Units | Per unit | Per Box* |
| 400 + | £1.417 | £566.80 |
| *price indicative | ||
- RS Stock No.:
- 181-2702
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +85°C and operating frequency of 6 KHz to 40KHz. The material used for buzzer is NYLON UL-94 V-0 (BLACK) and it has pin type terminal.
Sound Level 86dB
Tone Type Continuous, Intermittent
Length 69.8mm
Depth 69.8mm
Tone Type Continuous, Intermittent
Length 69.8mm
Depth 69.8mm
Specifications
Attribute | Value |
|---|---|
| Mounting Type | Flange Mount |
| Maximum Supply Voltage | 12 (Continuous) Vrms, 35 (Intermittent) Vrms |
| Sound Level | 86dB |
| Tone Type | Continuous, Intermittent |
| Length | 69.8mm |
| Depth | 69.8mm |
| Height | 18.6mm |
| Dimensions | 62 x 69.8 x 18.6mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Maximum Frequency | 40kHz |
| Minimum Frequency | 6kHz |
