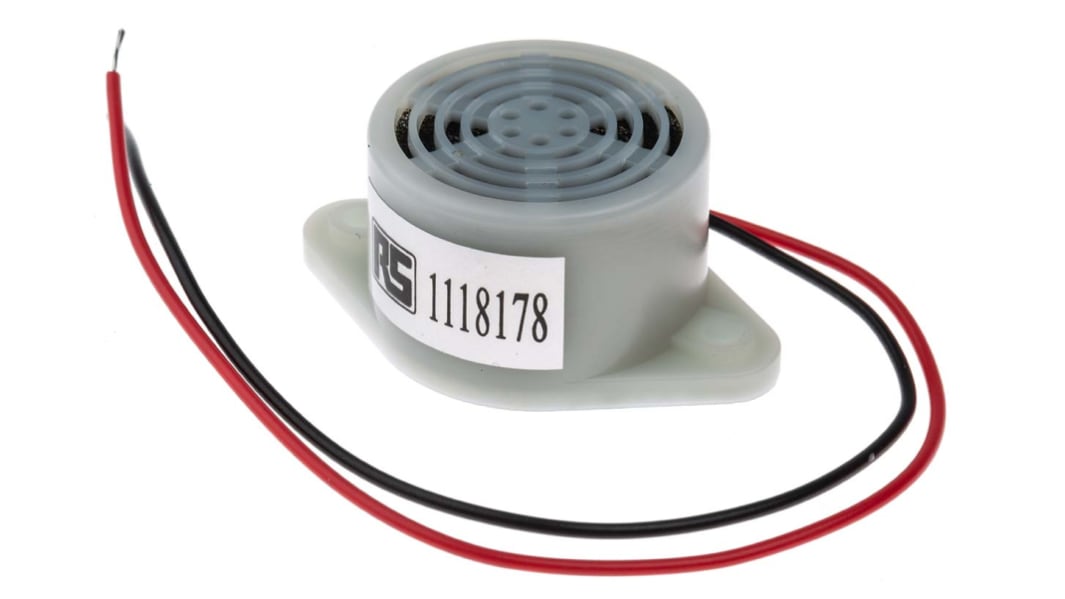

RS PRO 95dB Base Mount, Panel Mount Single Internal Magnetic Buzzer Component, 26.4 x 17.6mm, 7V dc Min, 12V dc Max
- RS Stock No.:
- 111-8178
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.23
(exc. VAT)
£11.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 33 unit(s) ready to ship from another location
- Plus 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.23 |
5 - 9 | £8.84 |
10 - 24 | £8.39 |
25 - 49 | £7.94 |
50 + | £7.28 |
*price indicative
- RS Stock No.:
- 111-8178
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Mounting Type | Base Mount, Panel Mount | |
Minimum Supply Voltage | 7V dc | |
Maximum Supply Voltage | 12V dc | |
Sound Level | 95dB | |
Drive Type | Internal | |
Tone Type | Single | |
Diameter | 26.4mm | |
Height | 17.6mm | |
Dimensions | 26.4 x 17.6mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +60°C | |
Supply Current | 23mA | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Mounting Type Base Mount, Panel Mount | ||
Minimum Supply Voltage 7V dc | ||
Maximum Supply Voltage 12V dc | ||
Sound Level 95dB | ||
Drive Type Internal | ||
Tone Type Single | ||
Diameter 26.4mm | ||
Height 17.6mm | ||
Dimensions 26.4 x 17.6mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Supply Current 23mA | ||
- COO (Country of Origin):
- CN
RS Pro Electro Mechanical Buzzer 6VDC-12VDC
RS Pro electro mechanical buzzer is fitted with flying leads and is panel or flange mounted. This mechanical buzzer has an internal drive circuit and has a single tone. RoHS compliant.
RS PRO 12 V DC, Base Mount, Panel Mount Buzzer, 95 dB
This buzzer is a single-tone audio signalling device that can be used for a wide range of applications in electrical circuits. Its part of our tried and tested RS PRO range.
This buzzer is electro-mechanical, so it contains a magnet, a diaphragm and a coil. When DC (direct current) voltage is applied to the buzzer, the diaphragm vibrates to emit a single tone sound up to 95 decibels (dB). This DC buzzer contains its own drive circuit, which makes it simple and effective to use. Fitted with both a panel mount and a flange mount, it can be easily connected to circuits.
A versatile product, this buzzer can be used in a number of ways, including as an alarm, timer, or doorbell. It's also RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only trace amounts of hazardous substances.
This buzzer is electro-mechanical, so it contains a magnet, a diaphragm and a coil. When DC (direct current) voltage is applied to the buzzer, the diaphragm vibrates to emit a single tone sound up to 95 decibels (dB). This DC buzzer contains its own drive circuit, which makes it simple and effective to use. Fitted with both a panel mount and a flange mount, it can be easily connected to circuits.
A versatile product, this buzzer can be used in a number of ways, including as an alarm, timer, or doorbell. It's also RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only trace amounts of hazardous substances.
Features and Benefits
• DC Buzzer
• Internal drive type
• Sound up to 95 dB
• Base mount and panel mount
• Supply current of 23 mA
• Supply voltage range of 7 to 12 V (volts) DC
• 26.4 mm (diameter) x 17.6 mm (height)
• Operating temperature range of -20°C to +60°C
• Internal drive type
• Sound up to 95 dB
• Base mount and panel mount
• Supply current of 23 mA
• Supply voltage range of 7 to 12 V (volts) DC
• 26.4 mm (diameter) x 17.6 mm (height)
• Operating temperature range of -20°C to +60°C
