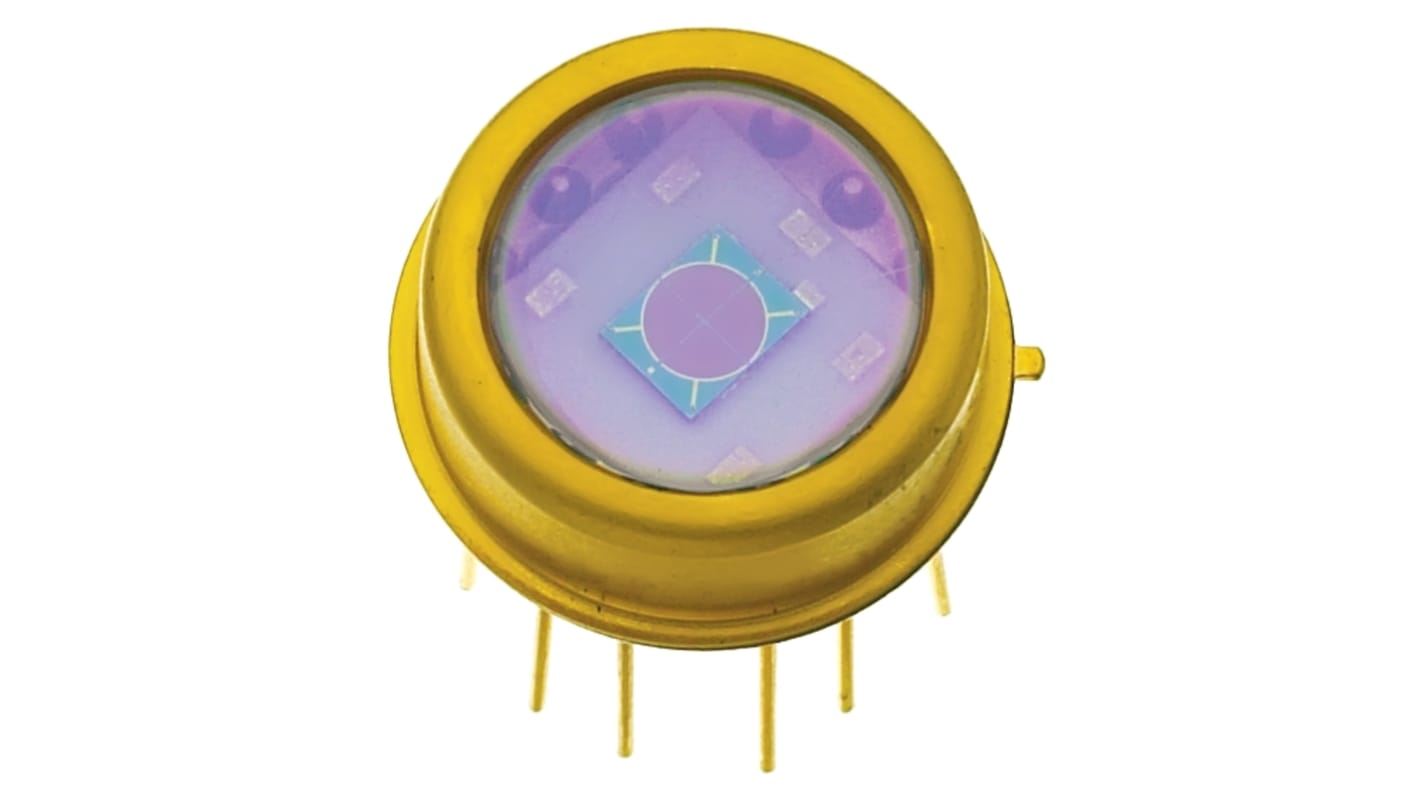

OSI Optoelectronics Infrared Photodiode, 65 °, Through Hole TO-8
- RS Stock No.:
- 848-6272
- Mfr. Part No.:
- FCI-InGaAs-Q3000
- Brand:
- OSI Optoelectronics
Subtotal (1 unit)*
£589.85
(exc. VAT)
£707.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 21 September 2026
- Plus 14 unit(s) shipping from 25 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £589.85 |
*price indicative
- RS Stock No.:
- 848-6272
- Mfr. Part No.:
- FCI-InGaAs-Q3000
- Brand:
- OSI Optoelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSI Optoelectronics | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 1550nm | |
| Package Type | TO-8 | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 8 | |
| Minimum Wavelength Detected | 1100nm | |
| Maximum Wavelength Detected | 1620nm | |
| Typical Fall Time | 24ns | |
| Amplified | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 6.6mm | |
| Width | 5mm | |
| Length | 13.97mm | |
| Standards/Approvals | RoHS | |
| Angle of Half Sensitivity | 65 ° | |
| Diameter | 15.24mm | |
| Dark Current | 0.2nA | |
| Polarity | Reverse | |
| Automotive Standard | No | |
| Series | FCI-InGaAS | |
| Typical Rise Time | 24ns | |
| Breakdown Voltage | 30V | |
| Select all | ||
|---|---|---|
Brand OSI Optoelectronics | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 1550nm | ||
Package Type TO-8 | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 8 | ||
Minimum Wavelength Detected 1100nm | ||
Maximum Wavelength Detected 1620nm | ||
Typical Fall Time 24ns | ||
Amplified No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Height 6.6mm | ||
Width 5mm | ||
Length 13.97mm | ||
Standards/Approvals RoHS | ||
Angle of Half Sensitivity 65 ° | ||
Diameter 15.24mm | ||
Dark Current 0.2nA | ||
Polarity Reverse | ||
Automotive Standard No | ||
Series FCI-InGaAS | ||
Typical Rise Time 24ns | ||
Breakdown Voltage 30V | ||
OSI Large Active Area InGaAs Photodiodes
The FCI-InGaAs-xxx-x series, from OSI Optoelectronics, are large active area InGaAs photodiodes. They are a range of IR sensitive detectors which offer high responsivity (1100-1620nm). They come in TO-46 or TO-5 packages with a flat window. Suitable applications for this family of photodiodes includes; IR instrumentation, monitoring, optical instrumentation, power measurement, IR sensing and medical devices.
Features:
Large active area: 1mm, 1.5mm and 3mm
High responsivity
Low noise
Spectral range: 900nm - 1700nm
Photodiodes, OSI Optoelectronics
