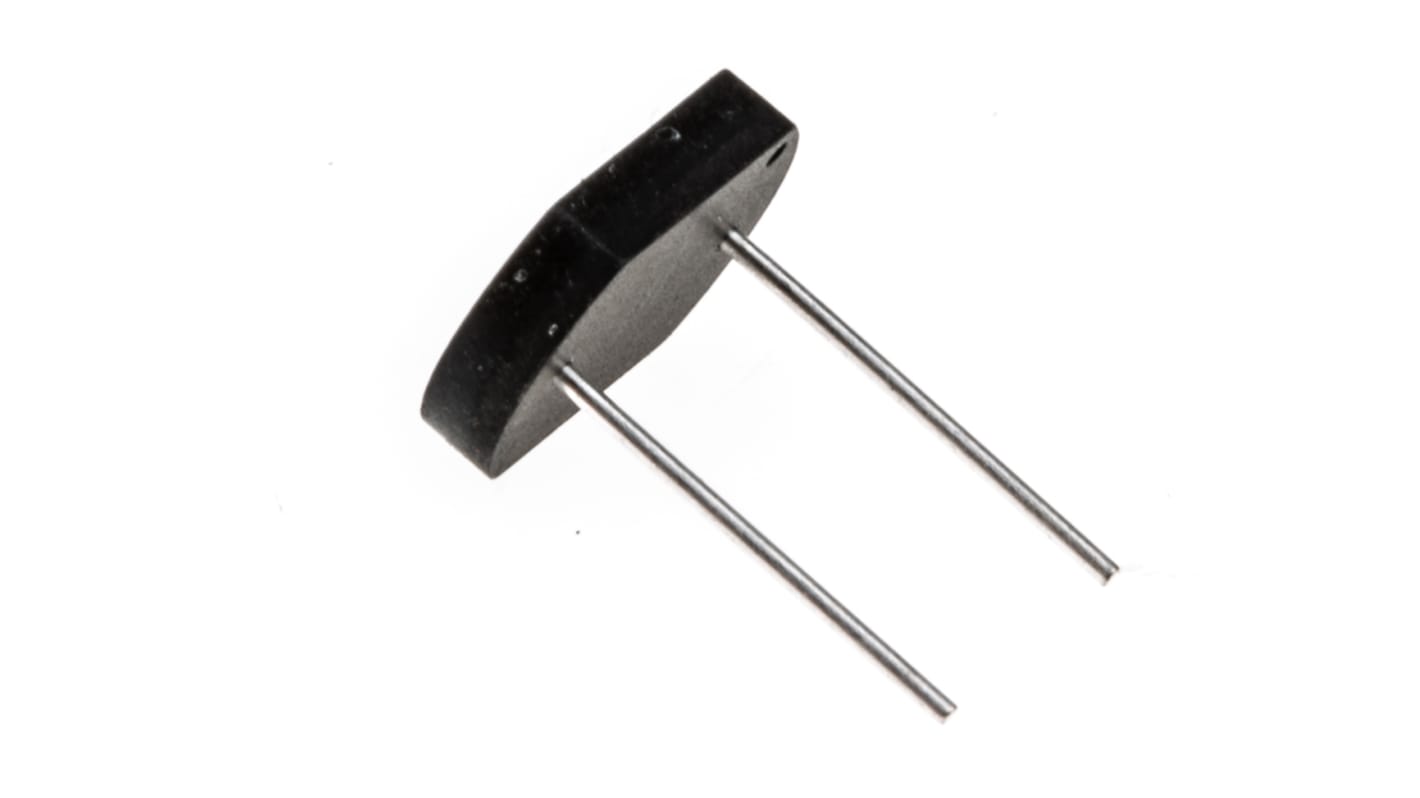

Excelitas Technologies VTB8440BH Visible Light Photodiode, 60 °, Through Hole Ceramic package
- RS Stock No.:
- 627-8366
- Mfr. Part No.:
- VTB8440BH
- Brand:
- Excelitas Technologies
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 627-8366
- Mfr. Part No.:
- VTB8440BH
- Brand:
- Excelitas Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Excelitas Technologies | |
| Spectrums Detected | Visible Light | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 580nm | |
| Package Type | Ceramic package | |
| Mount Type | Through Hole | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 330nm | |
| Maximum Wavelength Detected | 720nm | |
| Typical Fall Time | 0.6ns | |
| Amplified | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Width | 6mm | |
| Height | 7.87mm | |
| Length | 8mm | |
| Angle of Half Sensitivity | 60 ° | |
| Polarity | Forward | |
| Automotive Standard | No | |
| Typical Rise Time | 0.6ns | |
| Breakdown Voltage | 25V | |
| Dark Current | 0.1nA | |
| Select all | ||
|---|---|---|
Brand Excelitas Technologies | ||
Spectrums Detected Visible Light | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 580nm | ||
Package Type Ceramic package | ||
Mount Type Through Hole | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 330nm | ||
Maximum Wavelength Detected 720nm | ||
Typical Fall Time 0.6ns | ||
Amplified No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Width 6mm | ||
Height 7.87mm | ||
Length 8mm | ||
Angle of Half Sensitivity 60 ° | ||
Polarity Forward | ||
Automotive Standard No | ||
Typical Rise Time 0.6ns | ||
Breakdown Voltage 25V | ||
Dark Current 0.1nA | ||
Non Compliant
VTB8440B Photodiode
These VTB process photodiodes, from EG & G Vactec, are in recessed ceramic packages. They also incorporate an infrared (IR) rejection filter. The VTB Series offer high shunt resistance and a good blue response.
Features of the VTB8440B photodiodes:
Ceramic package
Through-hole mounting
Active area dimensions: 5.16 mm²
Operating temperature: -20 to +75 °C
Angle of half intensity: 50°
Photodiodes, EG & G Vactec
