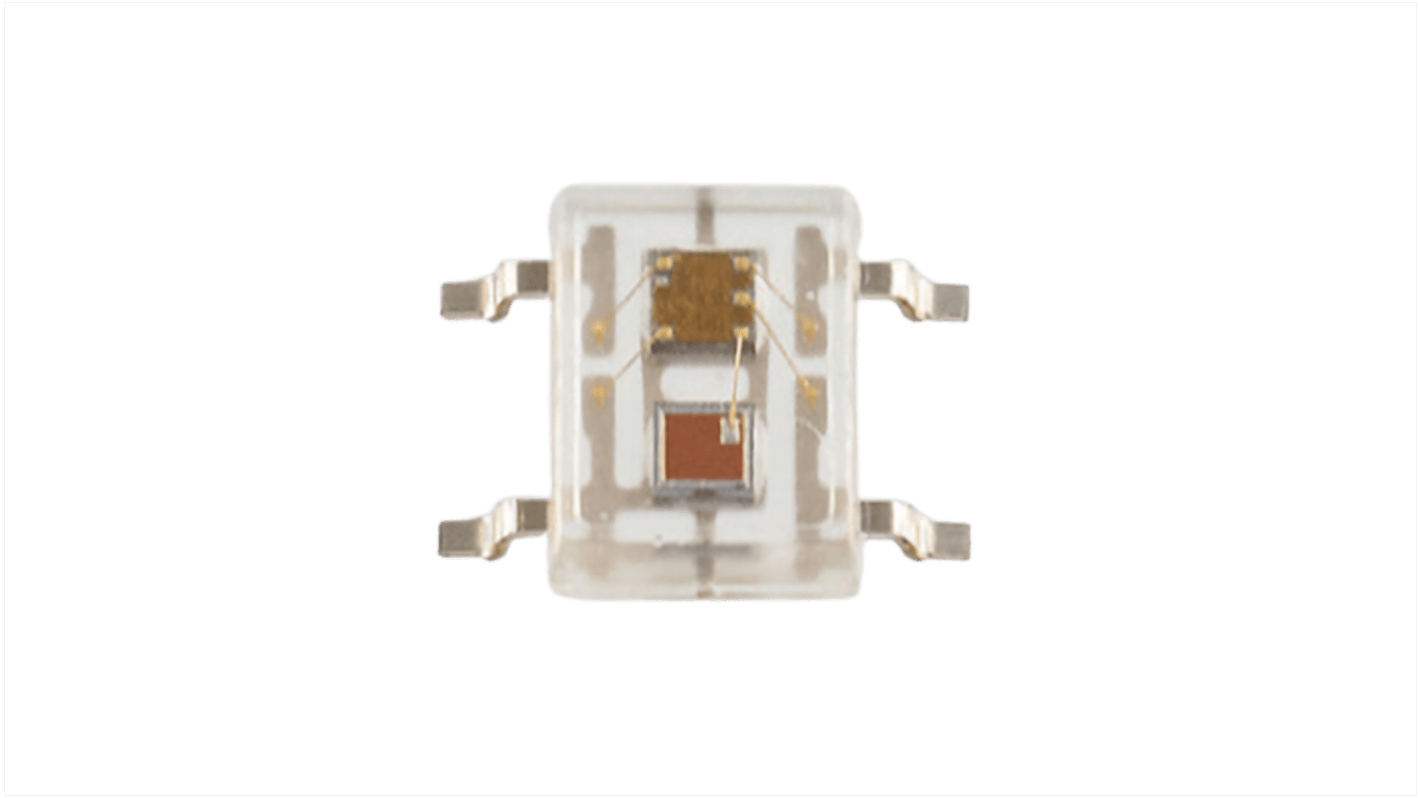

Hamamatsu Photonics S9705 Visible Light Photodiode, Surface Plastic
- RS Stock No.:
- 261-6299
- Mfr. Part No.:
- S9705
- Brand:
- Hamamatsu Photonics
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.82
(exc. VAT)
£6.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 34 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.82 |
| 5 - 9 | £5.52 |
| 10 - 19 | £5.25 |
| 20 + | £4.93 |
*price indicative
- RS Stock No.:
- 261-6299
- Mfr. Part No.:
- S9705
- Brand:
- Hamamatsu Photonics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hamamatsu Photonics | |
| Spectrums Detected | Visible Light | |
| Product Type | Photodiode | |
| Wavelength of Peak Sensitivity | 550nm | |
| Package Type | Plastic | |
| Mount Type | Surface | |
| Packaging | Reel and Desiccant in Moisture Proof | |
| Number of Pins | 4 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | JEDEC Level 4, JEDEC Level 5A | |
| Series | S9705 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Hamamatsu Photonics | ||
Spectrums Detected Visible Light | ||
Product Type Photodiode | ||
Wavelength of Peak Sensitivity 550nm | ||
Package Type Plastic | ||
Mount Type Surface | ||
Packaging Reel and Desiccant in Moisture Proof | ||
Number of Pins 4 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals JEDEC Level 4, JEDEC Level 5A | ||
Series S9705 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
The Hamamatsu Photonics photo ICs that combine a photodiode and a current-to-frequency converter on a CMOS chip. Output is a square wave with frequency directly proportional to light level incident on the photodiode. The CMOS level digital output allows direct connection to a microcontroller or other logic circuitry
Converts light level to frequency
Excellent linearity
Output timing reset function
