Vishay TEMD1020 Infrared Silicon PIN Photodiode, ±15 °, Surface Surface Mount
- RS Stock No.:
- 230-8353
- Mfr. Part No.:
- TEMD1020
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-8353
- Mfr. Part No.:
- TEMD1020
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Spectrums Detected | Infrared | |
| Product Type | Silicon PIN Photodiode | |
| Wavelength of Peak Sensitivity | 940nm | |
| Package Type | Surface Mount | |
| Mount Type | Surface | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 370nm | |
| Maximum Wavelength Detected | 1070nm | |
| Typical Fall Time | 80ns | |
| Minimum Operating Temperature | -40°C | |
| Amplified | No | |
| Maximum Operating Temperature | 100°C | |
| Height | 1.12mm | |
| Standards/Approvals | RoHS | |
| Length | 5mm | |
| Width | 4.24mm | |
| Angle of Half Sensitivity | ±15 ° | |
| Breakdown Voltage | 60V | |
| Open Circuit Voltage | 350mV | |
| Dark Current | 2nA | |
| Short Circuit Current | 32μA | |
| Typical Rise Time | 80ns | |
| Polarity | Forward | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Spectrums Detected Infrared | ||
Product Type Silicon PIN Photodiode | ||
Wavelength of Peak Sensitivity 940nm | ||
Package Type Surface Mount | ||
Mount Type Surface | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 370nm | ||
Maximum Wavelength Detected 1070nm | ||
Typical Fall Time 80ns | ||
Minimum Operating Temperature -40°C | ||
Amplified No | ||
Maximum Operating Temperature 100°C | ||
Height 1.12mm | ||
Standards/Approvals RoHS | ||
Length 5mm | ||
Width 4.24mm | ||
Angle of Half Sensitivity ±15 ° | ||
Breakdown Voltage 60V | ||
Open Circuit Voltage 350mV | ||
Dark Current 2nA | ||
Short Circuit Current 32μA | ||
Typical Rise Time 80ns | ||
Polarity Forward | ||
Automotive Standard AEC-Q101 | ||

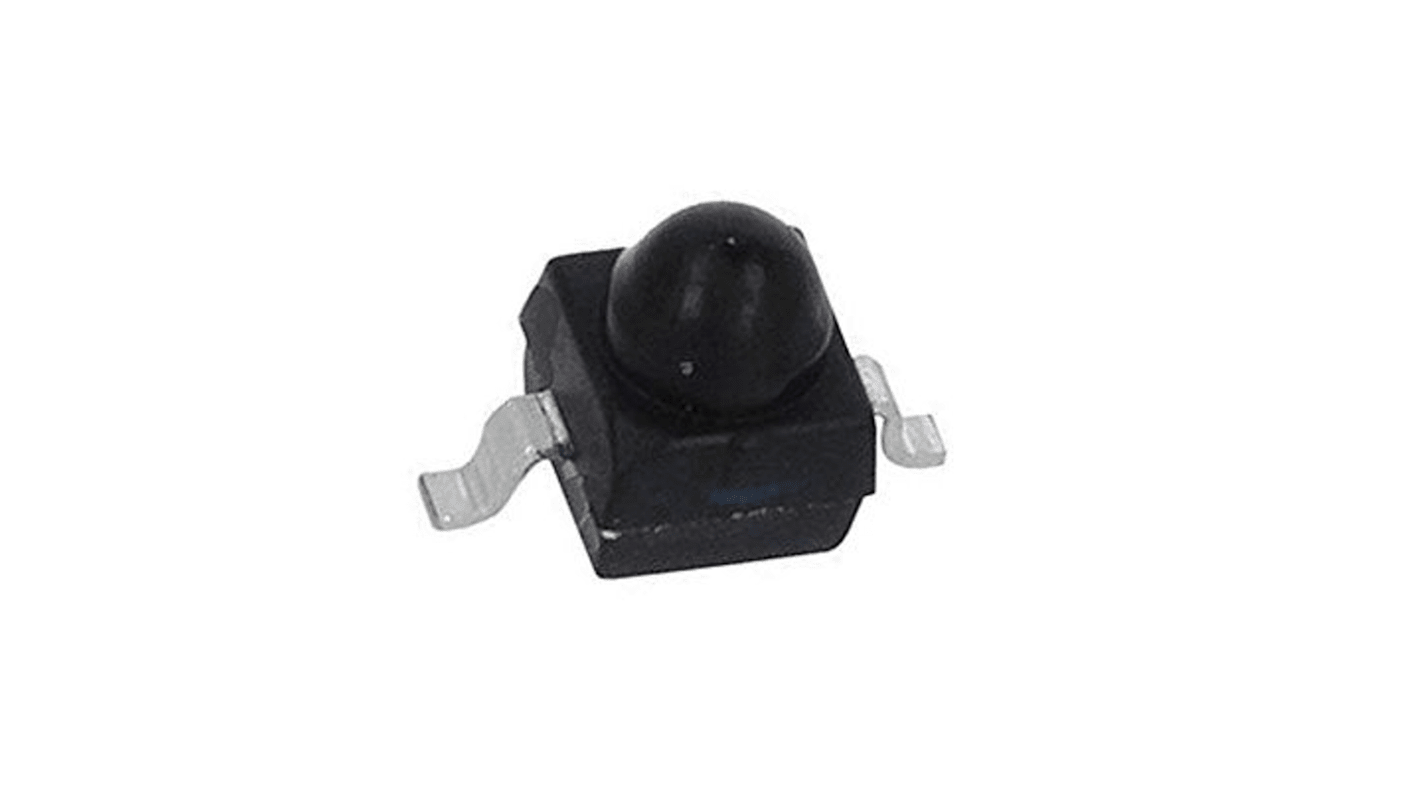

The Vishay silicon PIN photodiode comes with high speed and high radiant sensitivity in black, surface-mount plastic packages with lens and daylight blocking filter. Filter bandwidth is matched with 870 nm to 950 nm IR emitters. It comes in gullwing package.
It matches with IR emitter series TSML1000
It is compliant to RoHS directive and lead free
