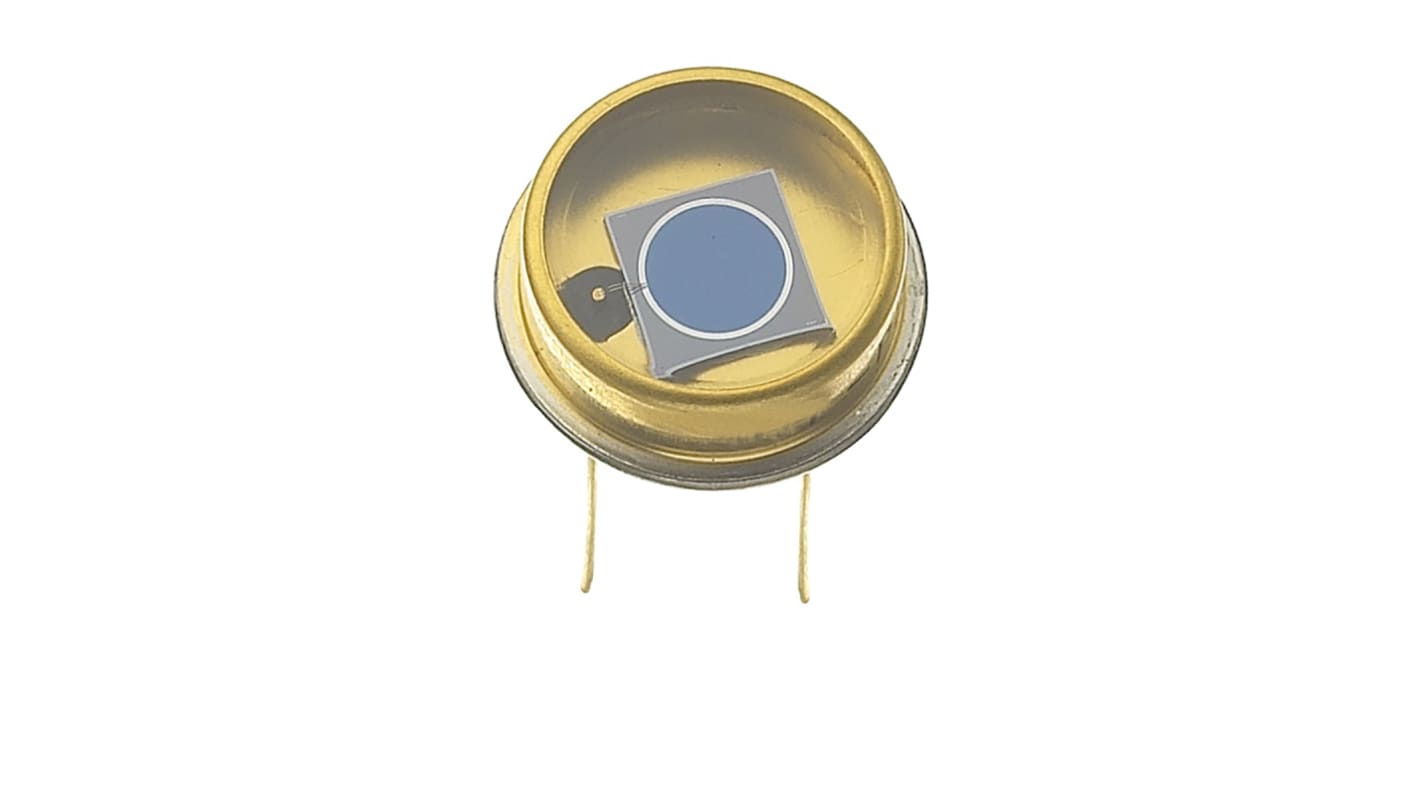

OSI Optoelectronics Infrared Photodiode, 65 °, Through Hole TO-8
- RS Stock No.:
- 183-7191
- Mfr. Part No.:
- PIN-6D
- Brand:
- OSI Optoelectronics
Bulk discount available
Subtotal (1 unit)*
£36.45
(exc. VAT)
£43.74
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 10 unit(s) shipping from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £36.45 |
| 2 - 4 | £35.25 |
| 5 + | £32.91 |
*price indicative
- RS Stock No.:
- 183-7191
- Mfr. Part No.:
- PIN-6D
- Brand:
- OSI Optoelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSI Optoelectronics | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 970nm | |
| Package Type | TO-8 | |
| Packaging | Tape & Reel | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 350nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 0.6ns | |
| Amplified | No | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 8mm | |
| Width | 5mm | |
| Height | 0.205in | |
| Diameter | 13.97mm | |
| Angle of Half Sensitivity | 65 ° | |
| Polarity | Reverse | |
| Automotive Standard | No | |
| Series | Pin | |
| Breakdown Voltage | 30V | |
| Typical Rise Time | 17ns | |
| Dark Current | 1nA | |
| Select all | ||
|---|---|---|
Brand OSI Optoelectronics | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 970nm | ||
Package Type TO-8 | ||
Packaging Tape & Reel | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 350nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 0.6ns | ||
Amplified No | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 8mm | ||
Width 5mm | ||
Height 0.205in | ||
Diameter 13.97mm | ||
Angle of Half Sensitivity 65 ° | ||
Polarity Reverse | ||
Automotive Standard No | ||
Series Pin | ||
Breakdown Voltage 30V | ||
Typical Rise Time 17ns | ||
Dark Current 1nA | ||
- COO (Country of Origin):
- MY
High Speed Response
Low Capacitance
Low Dark Current
Wide Dynamic Range
High Responsivity
APPLICATIONS
Pulse Detectors
Optical Communications
Bar Code Readers
Optical Remote Control
Medical Equipment
High Speed Photometry
