OSI Optoelectronics, PIN-5DPI IR Si Photodiode, Through Hole TO-5
- RS Stock No.:
- 184-1893
- Mfr. Part No.:
- PIN-5DPI
- Brand:
- OSI Optoelectronics
Bulk discount available
Subtotal (1 unit)*
£24.46
(exc. VAT)
£29.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £24.46 |
| 2 - 4 | £23.68 |
| 5 + | £22.09 |
*price indicative
- RS Stock No.:
- 184-1893
- Mfr. Part No.:
- PIN-5DPI
- Brand:
- OSI Optoelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OSI Optoelectronics | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 970nm | |
| Package Type | TO-5 | |
| Amplifier Function | No | |
| Mounting Type | Through Hole | |
| Number of Pins | 3 | |
| Diode Material | Si | |
| Minimum Wavelength Detected | 350nm | |
| Maximum Wavelength Detected | 1100nm | |
| Height | 0.18in | |
| Diameter | 9.14mm | |
| Typical Rise Time | 12ns | |
| Series | Photoconductive | |
Select all | ||
|---|---|---|
Brand OSI Optoelectronics | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 970nm | ||
Package Type TO-5 | ||
Amplifier Function No | ||
Mounting Type Through Hole | ||
Number of Pins 3 | ||
Diode Material Si | ||
Minimum Wavelength Detected 350nm | ||
Maximum Wavelength Detected 1100nm | ||
Height 0.18in | ||
Diameter 9.14mm | ||
Typical Rise Time 12ns | ||
Series Photoconductive | ||
- COO (Country of Origin):
- PH

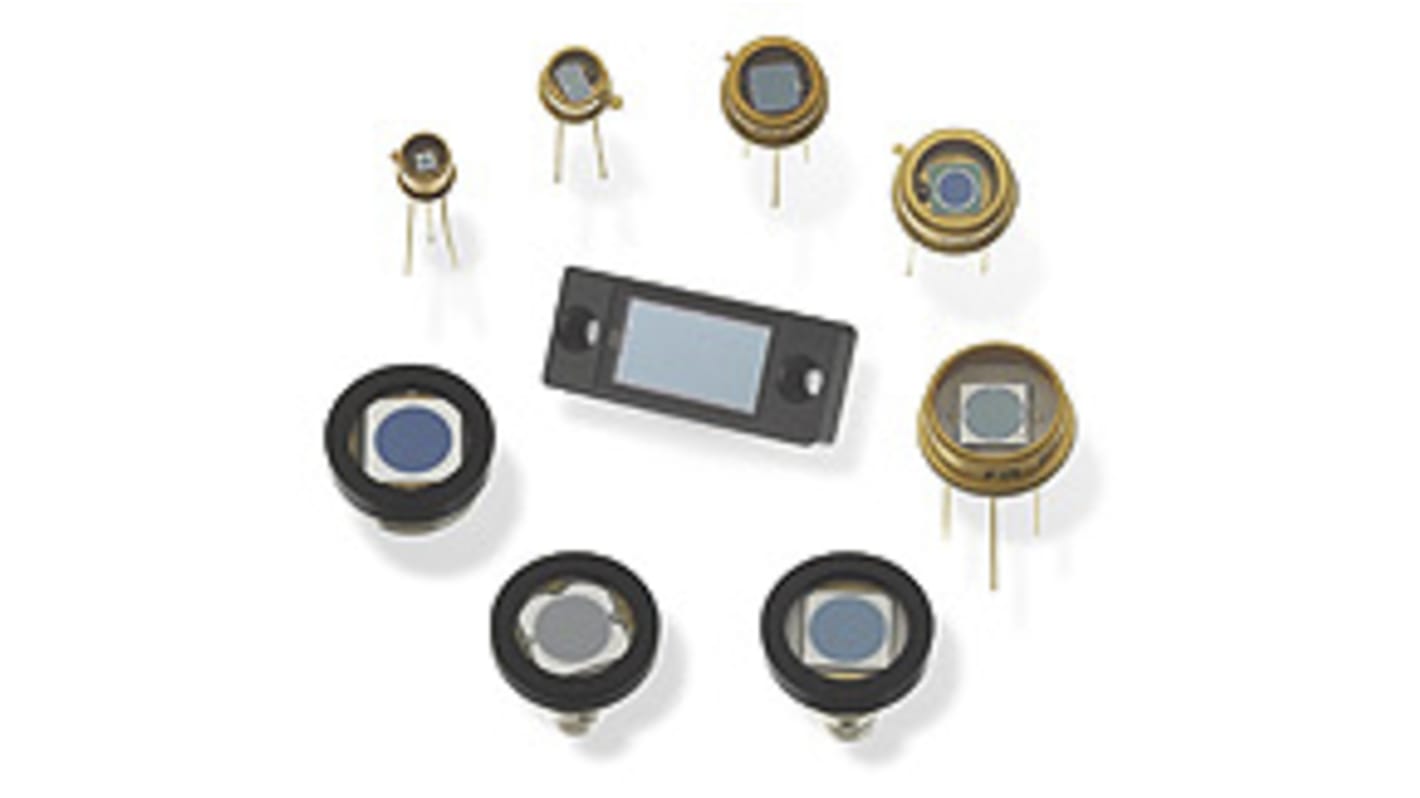

OSI Photovaltic Series Photodiodes
The Photovoltaic series, from OSI Optoelectronics, are planar diffused silicon photodiodes. These general purpose photodiodes are ideal for applications which require high sensitivity and moderate response speeds. Their spectral response range (350-1100nm) make the regular Photovoltaic series suitable for visible and IR applications.
The Photovoltaic series offer high shunt resistance and low noise. They also show long term stability. Suitable applications for the Photovoltaic series, include; colorimeters, photometers, spectroscopy equipment and fluorescence.
The Photovoltaic series offer high shunt resistance and low noise. They also show long term stability. Suitable applications for the Photovoltaic series, include; colorimeters, photometers, spectroscopy equipment and fluorescence.
Features of the Photovoltaic series:
Ultra low noise
High shunt resistance
Wide dynamic
Blue enhanced
Ultra low noise
High shunt resistance
Wide dynamic
Blue enhanced
Note
These photodiodes are not designed to be reverse biased, applying a reverse bias of more than a few volts (>3V) will permanently damage them.
The OSI Optoelectronics PIN-020A photovoltaic series planar diffused silicon photodiodes is utilized for applications requiring high sensitivity and moderate response speeds, with an additional sensitivity in the visible blue region for the blue enhanced series. These detectors have high shunt resistance and low noise, and exhibit long term stability. Distance from top of chip to top of glass is 0.094inch. Distance from top of glass to bottom of case is 0.180inch. Window diameter 0.240inch
Ultra low noise
High shunt resistance
Wide dynamic range
Blue enhanced
High shunt resistance
Wide dynamic range
Blue enhanced
Photodiodes, OSI Optoelectronics
