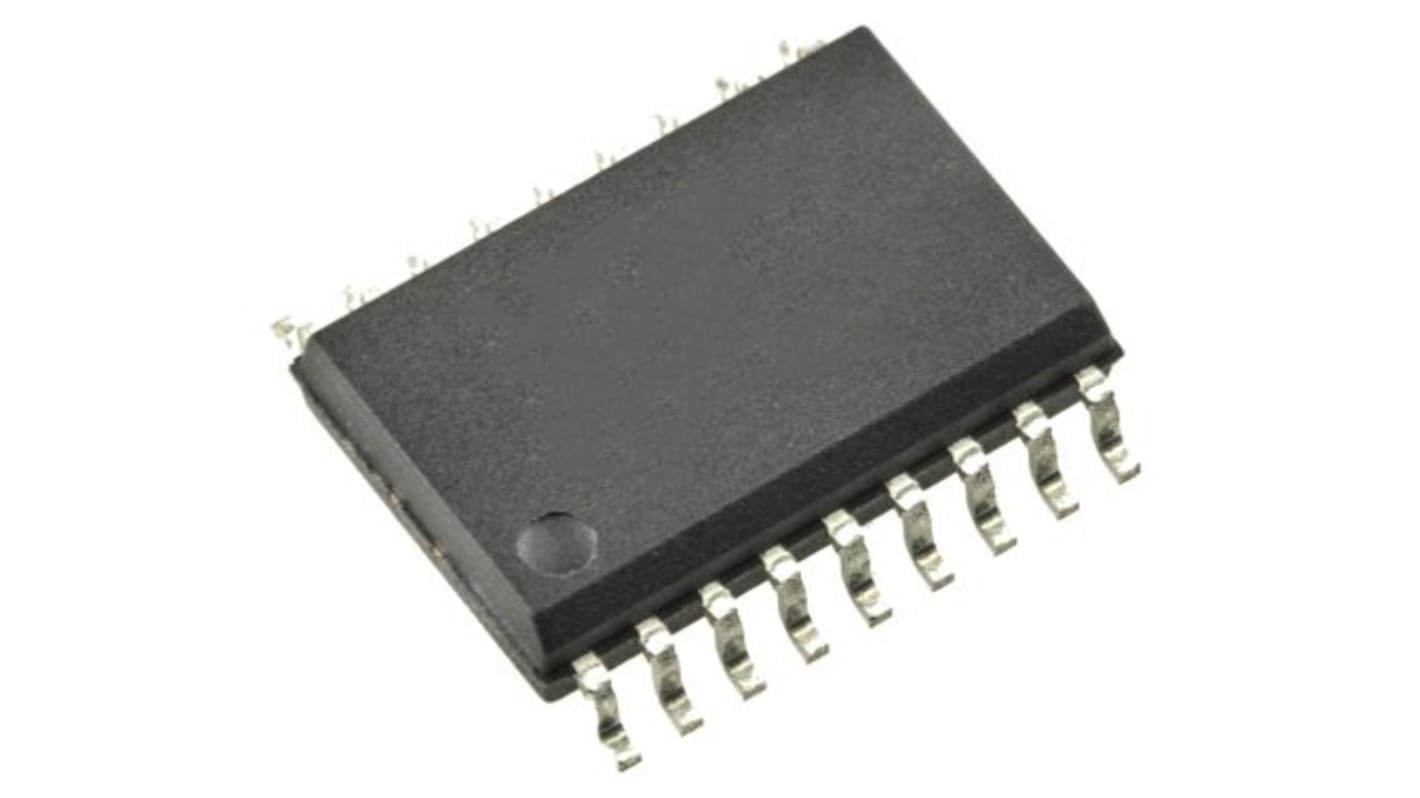

ROHM Bus Driver 18-Pin SOP, BU2092F-E2
- RS Stock No.:
- 168-1606
- Mfr. Part No.:
- BU2092F-E2
- Brand:
- ROHM
Discontinued
- RS Stock No.:
- 168-1606
- Mfr. Part No.:
- BU2092F-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Number of Drivers | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | SOP | |
| Pin Count | 18 | |
| Maximum Power Dissipation | 550 mW | |
| Maximum Input Voltage | 5.5 V | |
| Dimensions | 11.2 x 5.4 x 1.8mm | |
| Length | 11.2mm | |
| Width | 5.4mm | |
| Height | 1.8mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -25 °C | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Temperature | +75 °C | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Number of Drivers 1 | ||
Mounting Type Surface Mount | ||
Package Type SOP | ||
Pin Count 18 | ||
Maximum Power Dissipation 550 mW | ||
Maximum Input Voltage 5.5 V | ||
Dimensions 11.2 x 5.4 x 1.8mm | ||
Length 11.2mm | ||
Width 5.4mm | ||
Height 1.8mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Temperature -25 °C | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Temperature +75 °C | ||
- COO (Country of Origin):
- JP
BU2092F incorporates a built-in shift register and a latch circuit to control 12 LED by serial interface, linked to a microcontrollers.
LED can be driven directly. (Output current 25mA)
12 bit parallel output
Operational on low voltage (2.7V to 5.5V)
Applications:
MFP(Multi Function Printer)
Air-conditioner
STB (Set Top Box)
IH Cooking Heater
12 bit parallel output
Operational on low voltage (2.7V to 5.5V)
Applications:
MFP(Multi Function Printer)
Air-conditioner
STB (Set Top Box)
IH Cooking Heater
