Schneider Electric 2NO (Push Button), NC (E-Stop) Slow Brake Push Button Pendant Station
- RS Stock No.:
- 123-8135
- Mfr. Part No.:
- XACA2014
- Brand:
- Schneider Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£81.15
(exc. VAT)
£97.38
(inc. VAT)
- RS Stock No.:
- 123-8135
- Mfr. Part No.:
- XACA2014
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Contact Configuration | 2NO (Push Button), NC (E-Stop) | |
| Switch Operation | Slow Brake | |
| IP Rating | IP65 | |
| Terminal Type | Screw | |
| Contact Resistance | 25mΩ | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Enclosure Colour | Yellow | |
| Number Of Push Buttons | 2 | |
| Push Button Marking | Down Arrow, Up Arrow | |
| Push Button Colour | Red | |
| Voltage Rating | 600V | |
| Operating Temperature Range | -25 → +70°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Contact Configuration 2NO (Push Button), NC (E-Stop) | ||
Switch Operation Slow Brake | ||
IP Rating IP65 | ||
Terminal Type Screw | ||
Contact Resistance 25mΩ | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Enclosure Colour Yellow | ||
Number Of Push Buttons 2 | ||
Push Button Marking Down Arrow, Up Arrow | ||
Push Button Colour Red | ||
Voltage Rating 600V | ||
Operating Temperature Range -25 → +70°C | ||
RoHS Status: Exempt

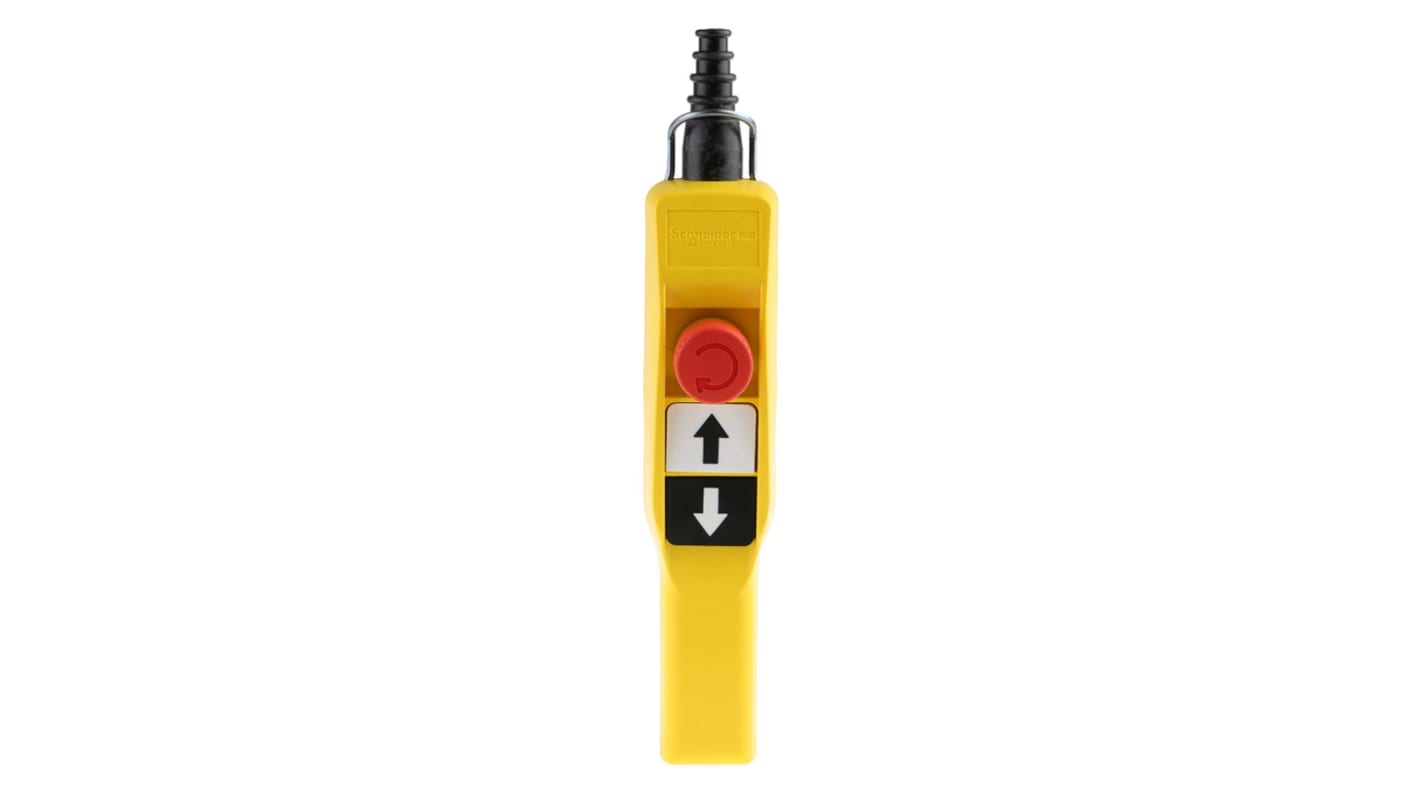

Schneider Electric Push Button Pendant Station, Slow-Break Contact, PP Housing - Harmony XACA Series - XACA2014
Use this push button pendant station from Schneider Electric to control your single-speed hoist motors. Its two push buttons and one emergency stop button make it a practical option for performing various crane applications in an industrial workspace. The ergonomic pistol-grip unit comes pre-assembled and is double insulated, so it's ready to use and comfortable to hold. A mechanical interlock feature lets you secure the device safely in an on or off state. This reduces the risk of harm caused by any unexpected changes in the power status of your connected machinery.
Features & Benefits
• Bright yellow body ensures visibility in busy settings
• Mechanical duty of a million cycles for longevity
• Impulse withstand voltage of 6kV, so protects you and equipment from harmful surges
• Short-circuit protection via a 10A cartridge fuse boosts safety
• Mechanical duty of a million cycles for longevity
• Impulse withstand voltage of 6kV, so protects you and equipment from harmful surges
• Short-circuit protection via a 10A cartridge fuse boosts safety
Applications
• Process control
• Factory automation
• Industrial health and safety systems
• Factory automation
• Industrial health and safety systems
Is this pendant station suitable for use in harsh settings?
Yes, an IP65 rating and an operating temperature range of -25°C to +70°C mean you can be assured this product withstands dust, low-pressure water jets and extreme temperatures. It also resists vibration, shock and impacts.
